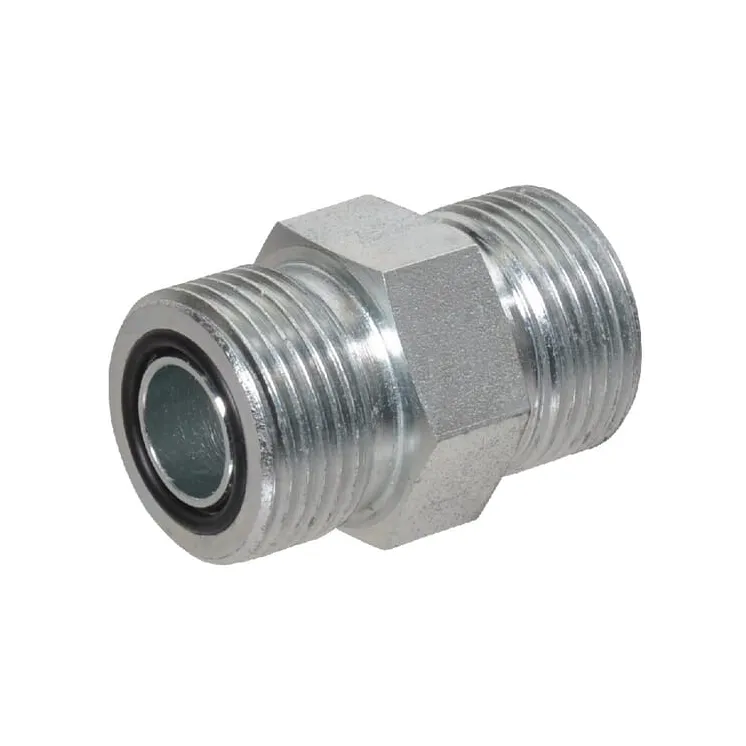

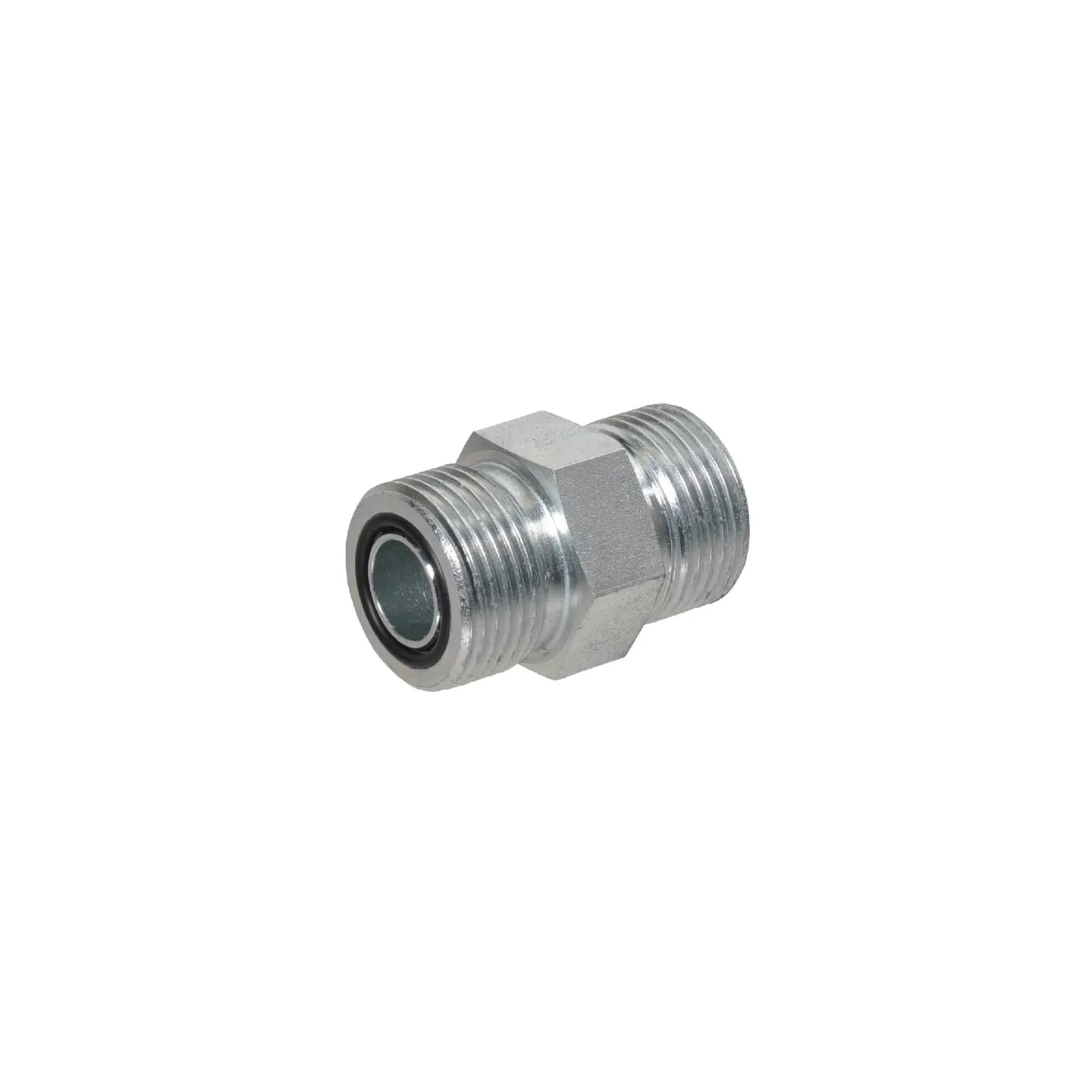

Adapteris 11/16 ORFS DNO11

Name: Adapteris 11/16 ORFS DNO11
Brand: Alfagomma
SKU: DNO11
Price: 12.89 EUR
Availability: InStock

Apmaksas iespējas

12,89 €

AR PVN

4-5 Darba dienas

Adapteris 11/16 ORFS DNO11 Alfagomma

IR NOLIKTAVĀ

ID: 87677

Apraksts

Part number	DNO11
EAN
Unit	Each
Pros	High tightening torque Reusable
Product details	O-Ring Face Seals O-ring in recess on the connection surface of the nipple Standard : SAE I 1453 Material: Steel Surface treatment: Zinc-plated Viton seal available on request
Long description	Technical information: Protected against high torque and repeatedly assembly. Mostly used in applications of American origin
Connection 2, thread diameter	11/16 Inch
Connection 2, thread type	ORFS
Connection 2, threads per inch	16
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 thread diameter	11/16 Inch
Connection no 1 thread type	ORFS
Connection no 1 threads per inch	16
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Connection no 1 wrench size	19.0 mm
Material	Steel
Max working pressure	400 BAR
Shape	Straight - 2 connection sides
Surface treatment	Galvanised
Total length	31 mm
