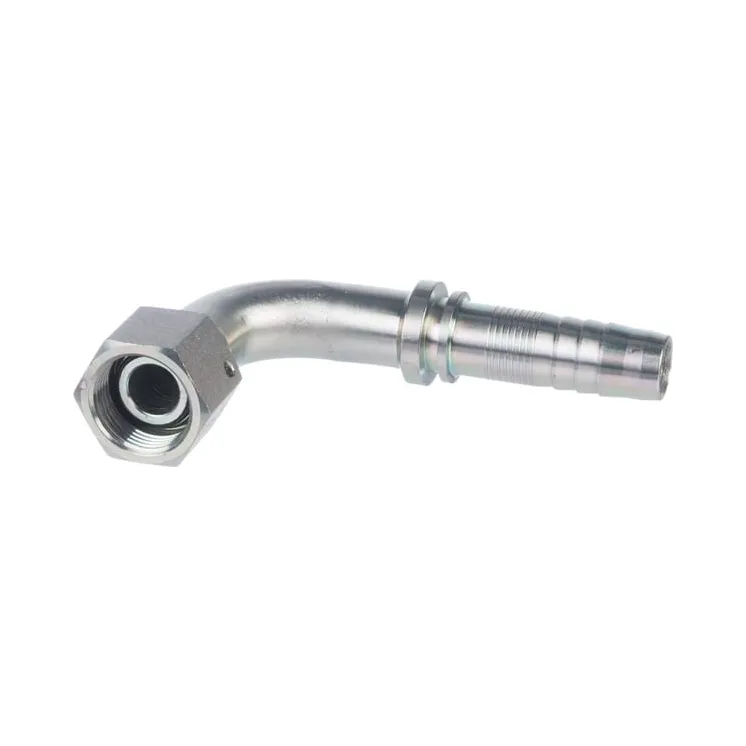

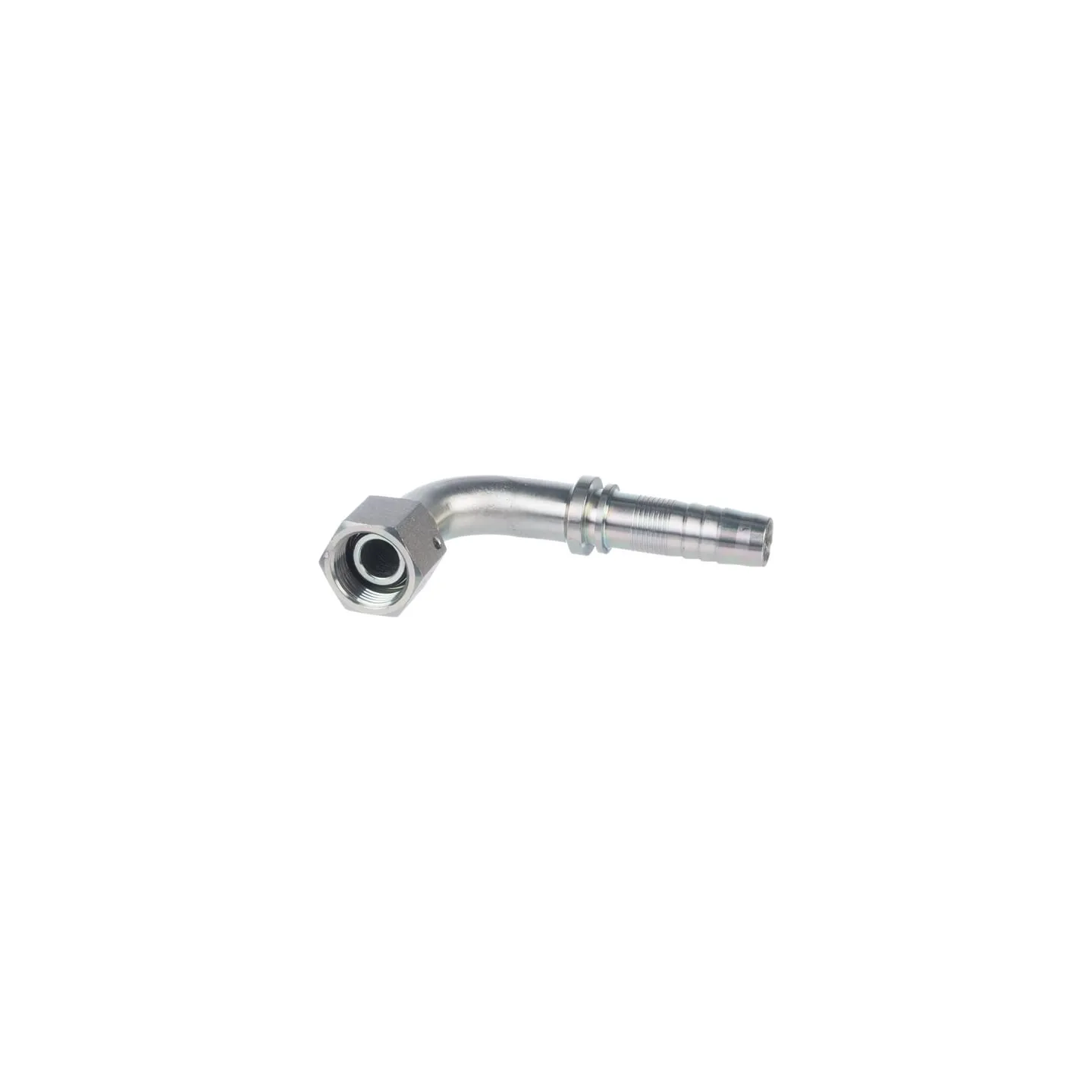

Ievietojiet F NS-DN20-3/4BSP90 DKRNS201290

Name: Ievietojiet F NS-DN20-3/4BSP90 DKRNS201290
Brand: Alfagomma
SKU: DKRNS201290
Price: 22.28 EUR
Availability: BackOrder

Apmaksas iespējas

22,28 €

AR PVN

Pēc pieprasījuma

Ievietojiet F NS-DN20-3/4BSP90 DKRNS201290 Alfagomma

Uz pasūtījumu

ID: 87762

Apraksts

Part number	DKRNS201290
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	90 °
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
HConnection no 1 center to end distance	59.1 mm
Connection no 1 diameter	3/4 Inch
Connection no 1 diameter	19 mm
Connection no 1 length	61 mm
F1Connection no 1 thread diameter	3/4 Inch
Connection no 1 threads per inch	14
Connection no 1 type - male/female	Female
Connection no 1 type	O-ring cone
Original number equivalent	H1320892-121200
Shape	Elbow - 2 connection sides
