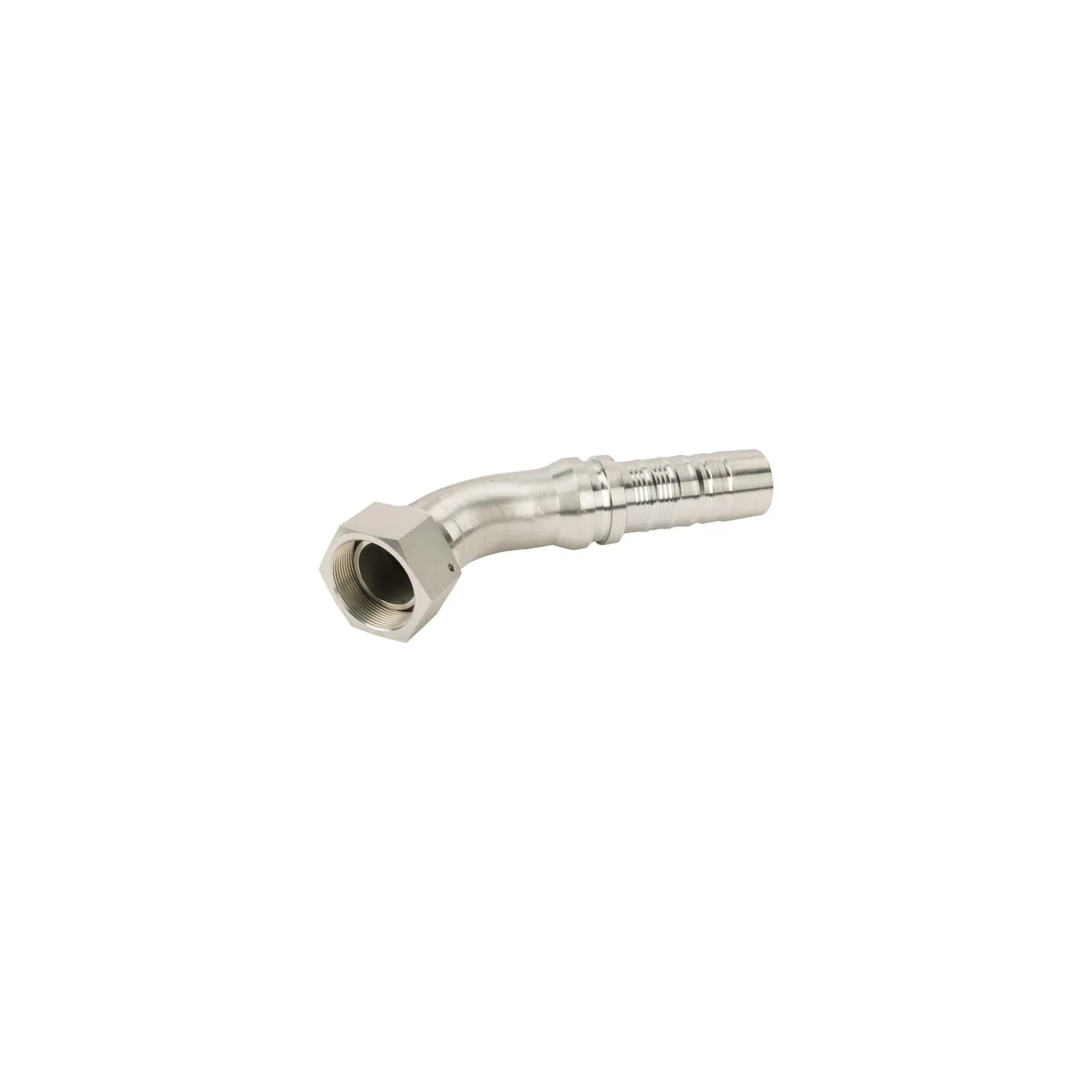

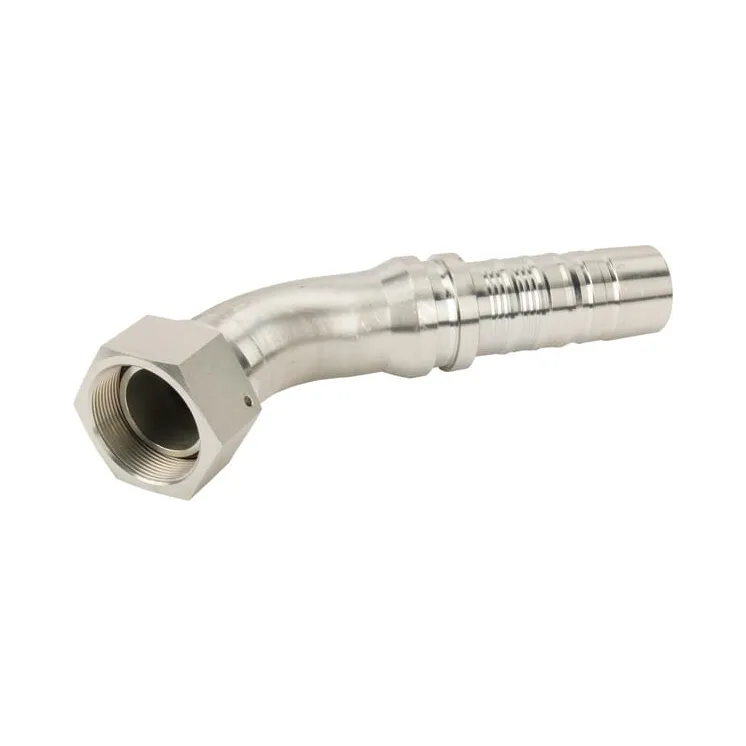

Ievietojiet F NS-DN50-2BSP45° DKRNS503245

Name: Ievietojiet F NS-DN50-2BSP45° DKRNS503245
Brand: Alfagomma
SKU: DKRNS503245
Price: 122.82 EUR
Availability: BackOrder

Apmaksas iespējas

122,82 €

AR PVN

Pēc pieprasījuma

Ievietojiet F NS-DN50-2BSP45° DKRNS503245 Alfagomma

Uz pasūtījumu

ID: 87805

Apraksts

Part number	DKRNS503245
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	45 °
DConnection 2, centre to end distance	60 mm
Connection 2, diameter	2 Inch
Connection 2, diameter	50 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	153.5 mm
F1Connection no 1 thread diameter	2 Inch
Connection no 1 threads per inch	11
Connection no 1 type - male/female	Female
Connection no 1 type	O-ring cone
CH1Connection no 1 wrench size	70.0 mm
Shape	Elbow - 2 connection sides
