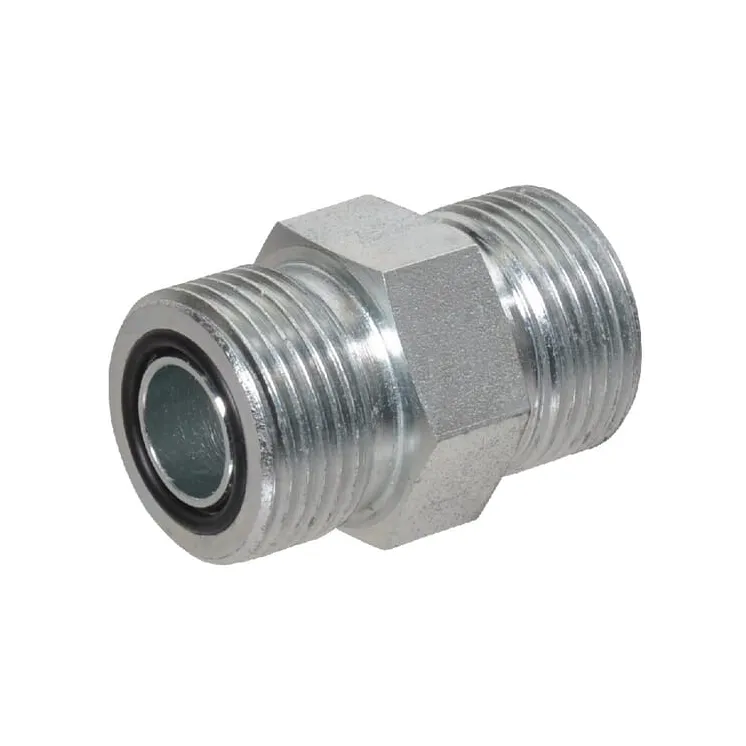

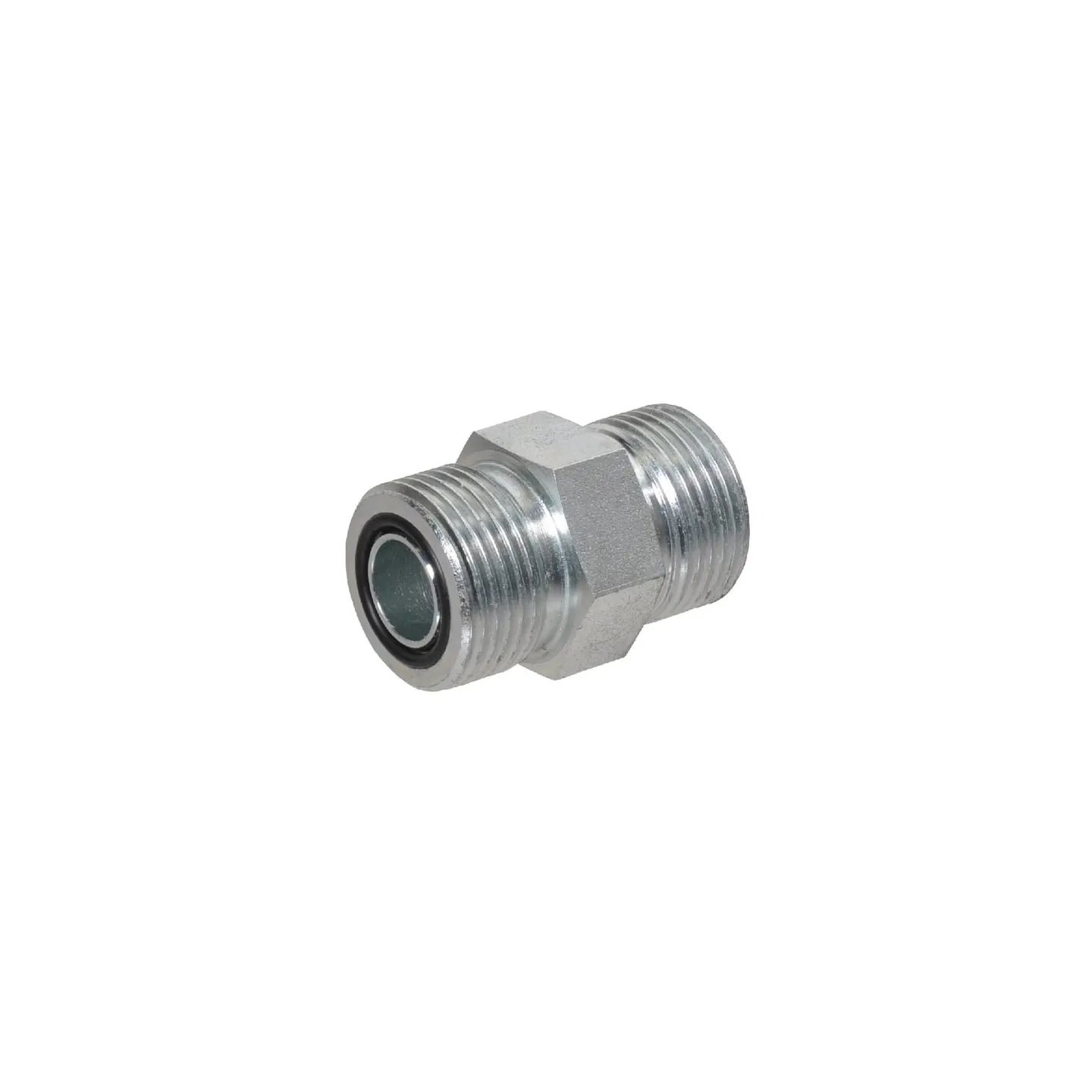

Adapteris 1-3/16 ORFS DNO19

Name: Adapteris 1-3/16 ORFS DNO19
Brand: Alfagomma
SKU: DNO19
Price: 13.83 EUR
Availability: InStock

Apmaksas iespējas

13,83 €

AR PVN

4-5 Darba dienas

Adapteris 1-3/16 ORFS DNO19 Alfagomma

IR NOLIKTAVĀ

ID: 87843

Apraksts

Part number	DNO19
EAN
Unit	Each
Long description	ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time.
Pros	High tightening torque Reusable
Product details	O-Ring Face Seals O-ring in recess on the connection surface of the nipple Standard : SAE I 1453 Material: Steel Surface treatment: Zinc-plated Viton seal available on request
Connection 2, thread diameter	1-3/16 Inch
Connection 2, thread type	ORFS
Connection 2, threads per inch	12
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 thread diameter	1-3/16 Inch
Connection no 1 thread type	ORFS
Connection no 1 threads per inch	12
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Connection no 1 wrench size	32.0 mm
Material	Steel
Max working pressure	400 BAR
Shape	Straight - 2 connection sides
Surface treatment	Galvanised
Total length	47 mm
