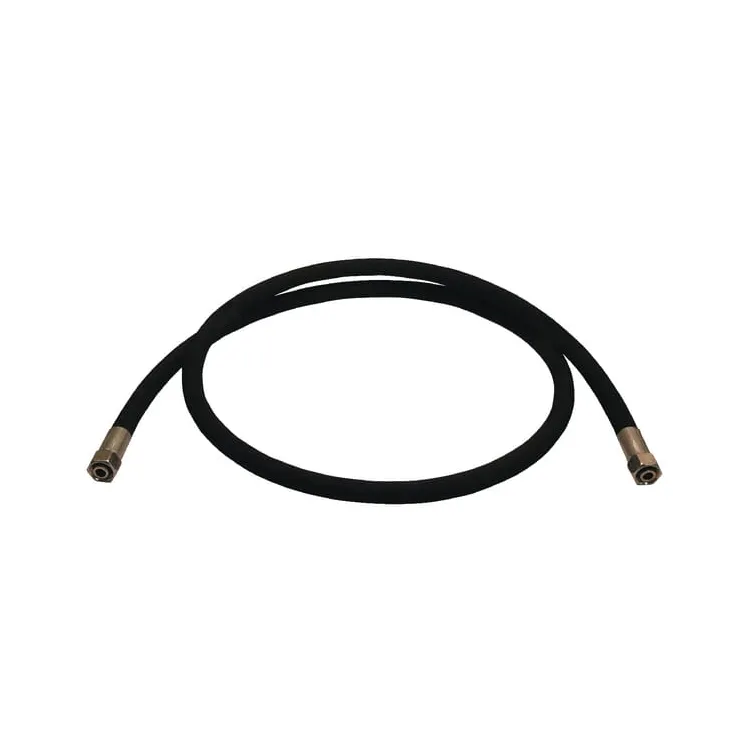

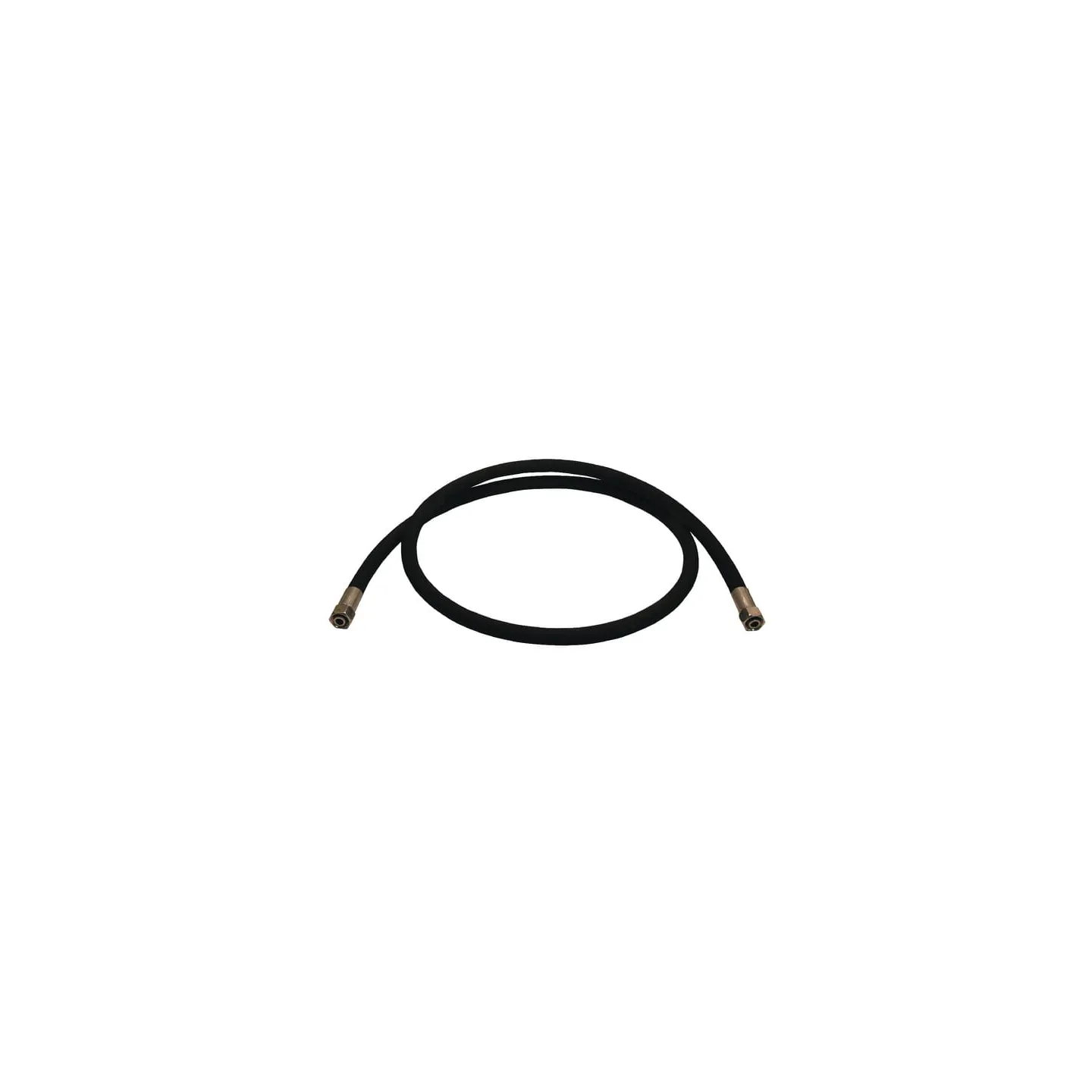

Hidrauliskā šļūtene DN12 2600mm DKLO132600

Name: Hidrauliskā šļūtene DN12 2600mm DKLO132600
Brand: Alfagomma
SKU: DKLO132600
Price: 45.67 EUR
Availability: InStock

Apmaksas iespējas

45,67 €

AR PVN

4-5 Darba dienas

Hidrauliskā šļūtene DN12 2600mm DKLO132600 Alfagomma

IR NOLIKTAVĀ

ID: 88231

Apraksts

Part number	DKLO132600
EAN
Unit	Each
Long description	DKLO hoses are ready-to-use hoses, available in the most common lengths and already fitted with inserts and crimp sleeves. Easy to order and immediately deployable for optimum time savings. Other combinations/customisations are available via the "Kramp product configurator", see "Services" at the bottom of each web page. Show more
Pros	Very competitively priced Available from stock Fast assembly
Product details	Screw cap M22x1.5 (15L) on both sides Length is the total length including couplings Mineral oil-based and glycol-based fluids Durable outer coating resistant to ozone and oil General use in hydraulic systems Not suitable for ester based oils
Includes	Complete hose with screw cap M22x1.5 (15L) on both sides
Medium	Oil
Hose inside diameter	12 mm
Type	Hydraulic high pressure hose
Type code	HST-13-2SN
Length	2.6 m
DN	12 mm
Material inside	Nitrile rubber [NBR]
Material outside	Styrene-butadiene rubber (SBR)
Max working pressure	275 BAR
Burst pressure	330 BAR
Colour outside	Black
Colour inside	Black
Connection 1 thread type	Metric
Connection 1 thread diameter	M22
Connection 1 pitch of thread	1.50 mm
Max working temperature	100 °C
Min working temperature	-40 °C
Reinforcement type	Braid
Reinforcement material	Steel
Number of plies	2
Connection series	15L
EN Standard	853-2SN
Original number equivalent	DKLO132600
