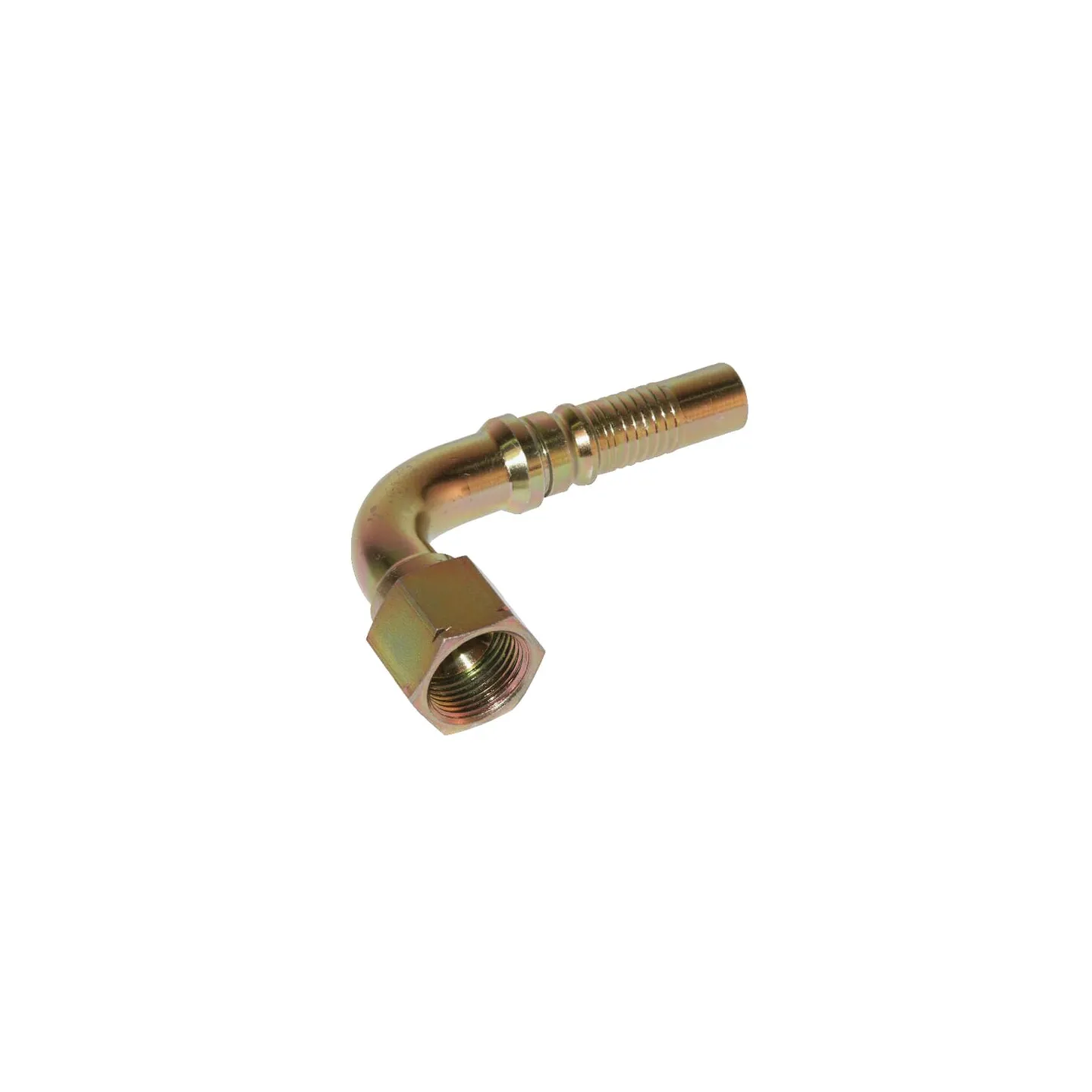

Ievietot 4SH-DN20-1.1/16 UNF-90° DKJH201790

Name: Ievietot 4SH-DN20-1.1/16 UNF-90° DKJH201790
Brand: Alfagomma
SKU: DKJH201790
Price: 23.87 EUR
Availability: InStock

Apmaksas iespējas

23,87 €

AR PVN

4-5 Darba dienas

Ievietot 4SH-DN20-1.1/16 UNF-90° DKJH201790 Alfagomma

IR NOLIKTAVĀ

ID: 88306

Apraksts

Part number	DKJH201790
EAN
Unit	Each
Pros	Press-fitting with heavy-duty anti-slip protection
Product details	Anchoring by means of interlock system Cone with O-ring seal Heavy duty machines with high operating and peak pressures Hydrostatic drives Flared fittings Series H14
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	37 °
Connection 2, diameter	1-1/16 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 diameter	3/4 Inch
Connection no 1 diameter	20 mm
Connection no 1 length	52 mm
F1Connection no 1 thread diameter	1-1/16 Inch
Connection no 1 thread type	UNF
Connection no 1 threads per inch	12
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
CH1Connection no 1 wrench size	32.0 mm
Material	Steel
Original number equivalent	H1422592-121200
Shape	Elbow - 2 connection sides
