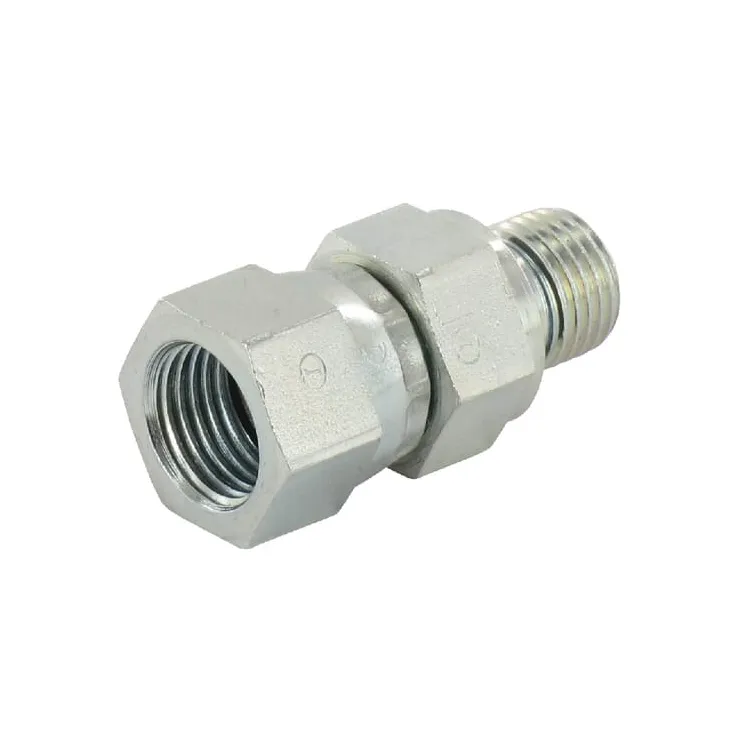

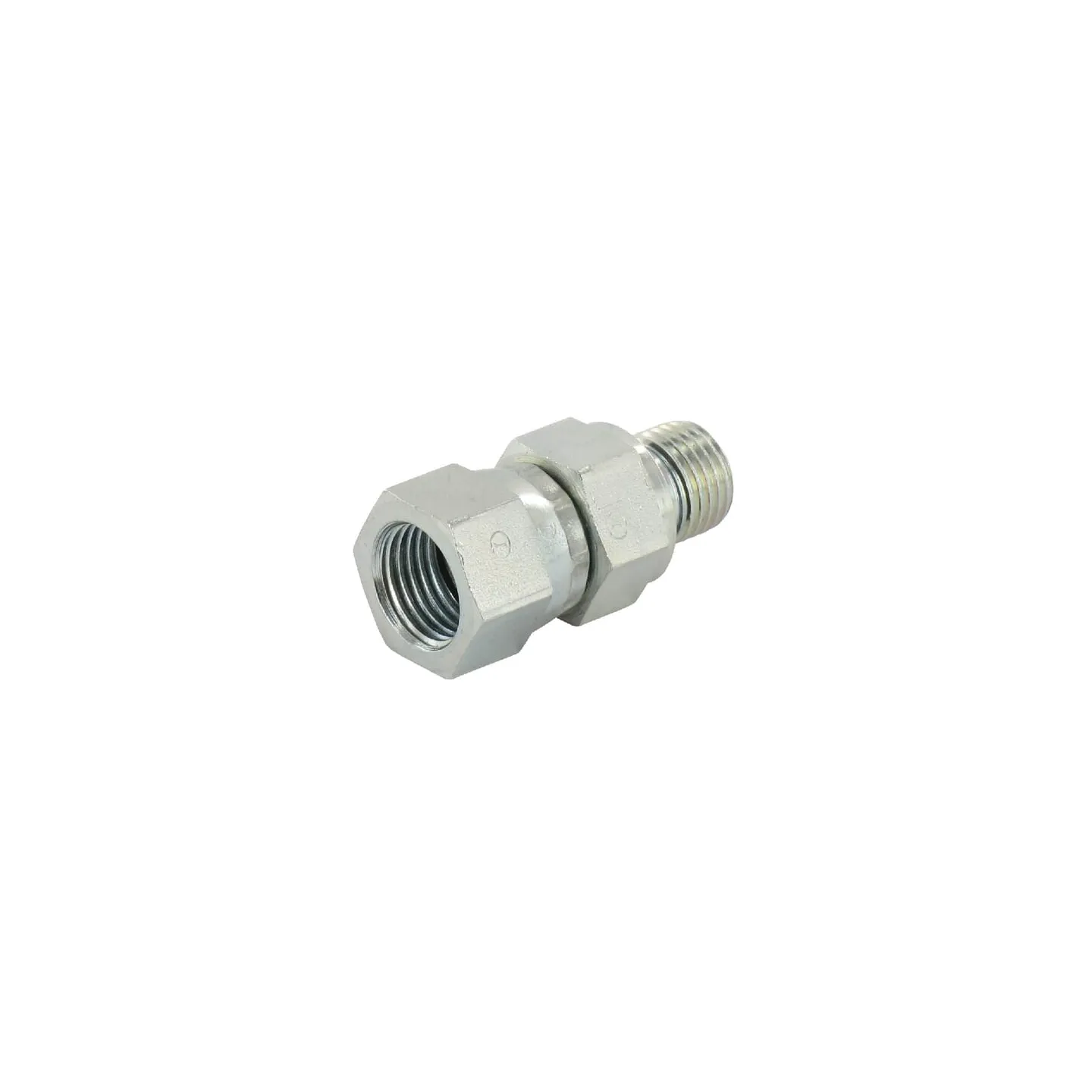

Grozāmais 9/16 JIC x 1/4 BSP FMUB0904

Name: Grozāmais 9/16 JIC x 1/4 BSP FMUB0904
Brand: Alfagomma
SKU: FMUB0904
Price: 7.71 EUR
Availability: InStock

Apmaksas iespējas

7,71 €

AR PVN

4-5 Darba dienas

Grozāmais 9/16 JIC x 1/4 BSP FMUB0904 Alfagomma

IR NOLIKTAVĀ

ID: 88359

Apraksts

Part number	FMUB0904
EAN
Unit	Each
Product details	For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. Connection thread on the 37º cone side is UNF in accordance with ANSI
Cone angle	74 °
F2Connection 2, thread diameter	1/4 Inch
Connection 2, thread length	10 mm
F2Connection 2, thread type	BSP
Connection 2, threads per inch	19
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	9/16 Inch
F1Connection no 1 thread type	JIC
Connection no 1 threads per inch	18
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
Length	42 mm
Material	Steel
Max working pressure	380 BAR
Shape	Straight - 2 connection sides
Surface treatment	Galvanised
