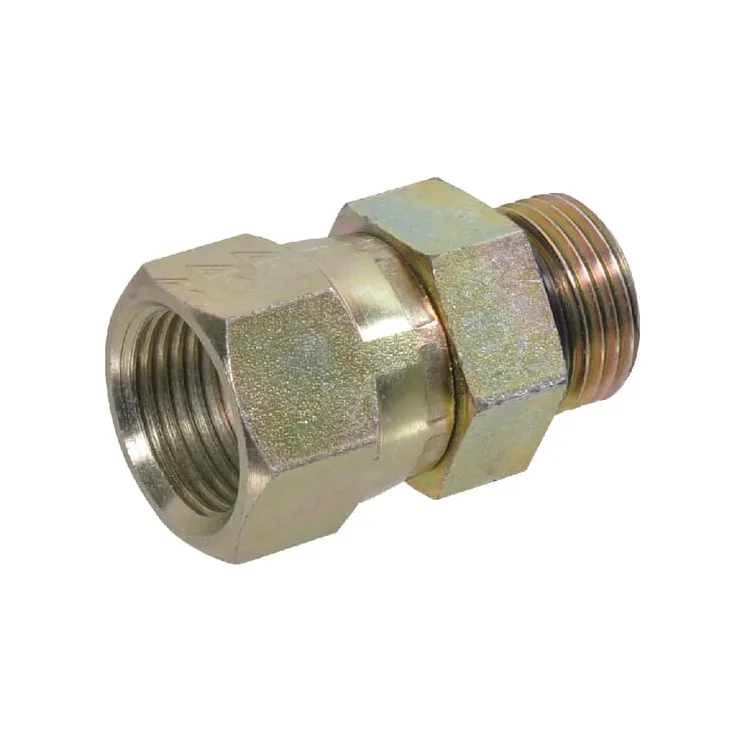

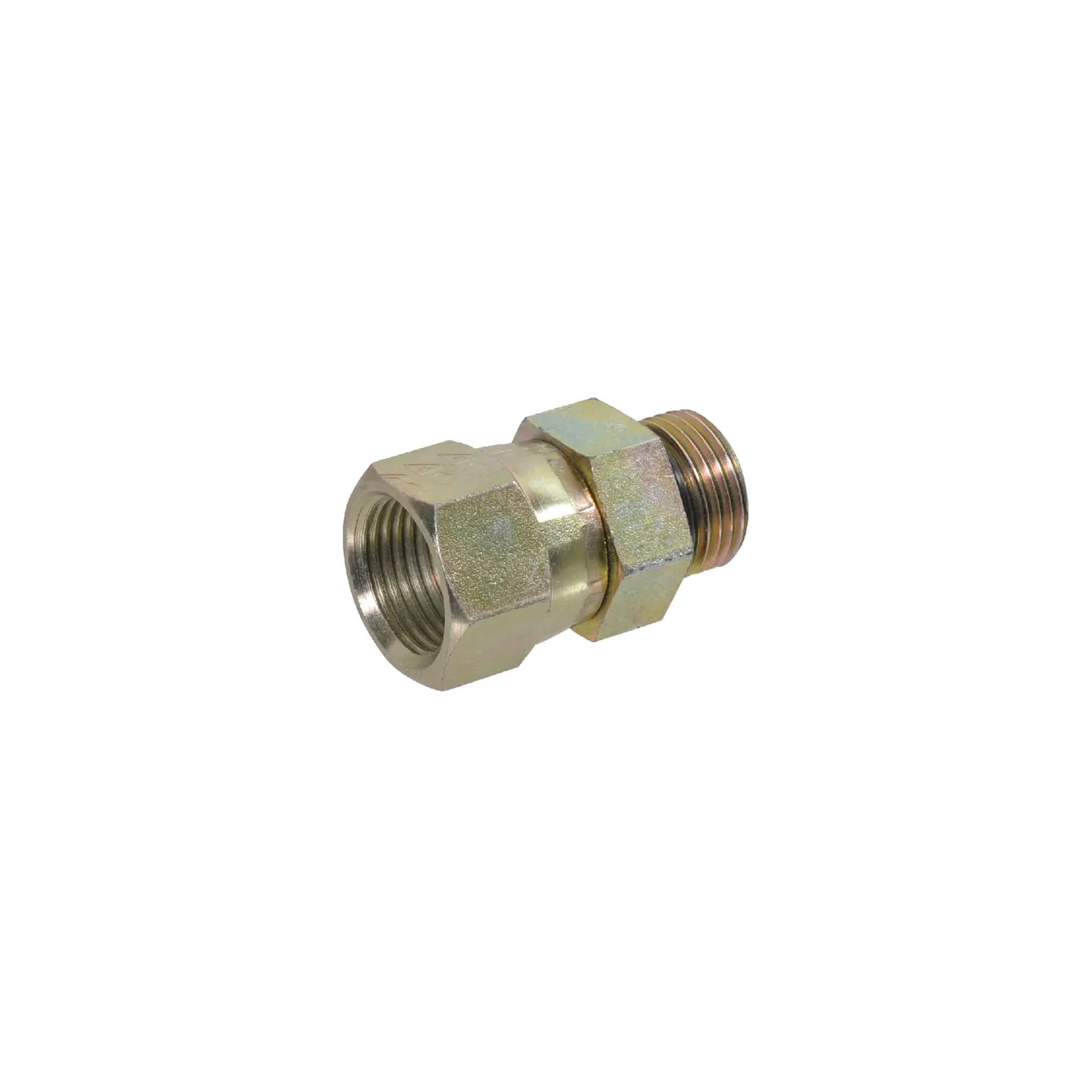

Grozāmais tapas 1/2 UNF FMU08

Name: Grozāmais tapas 1/2 UNF FMU08
Brand: Alfagomma
SKU: FMU08
Price: 7.24 EUR
Availability: InStock

Apmaksas iespējas

7,24 €

AR PVN

4-5 Darba dienas

Grozāmais tapas 1/2 UNF FMU08 Alfagomma

IR NOLIKTAVĀ

ID: 88363

Apraksts

Part number	FMU08
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37° cone side is UNF in accordance with ANSI
Cone angle	74 °
F2Connection 2, thread diameter	1/2 Inch
Connection 2, thread length	9 mm
F2Connection 2, thread type	UNF
Connection 2, threads per inch	20
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	1/2 Inch
F1Connection no 1 thread type	JIC
Connection no 1 threads per inch	20
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
Length	26 mm
Material	Steel
Max working pressure	380 BAR
Shape	Straight - 2 connection sides
Surface treatment	Galvanised
