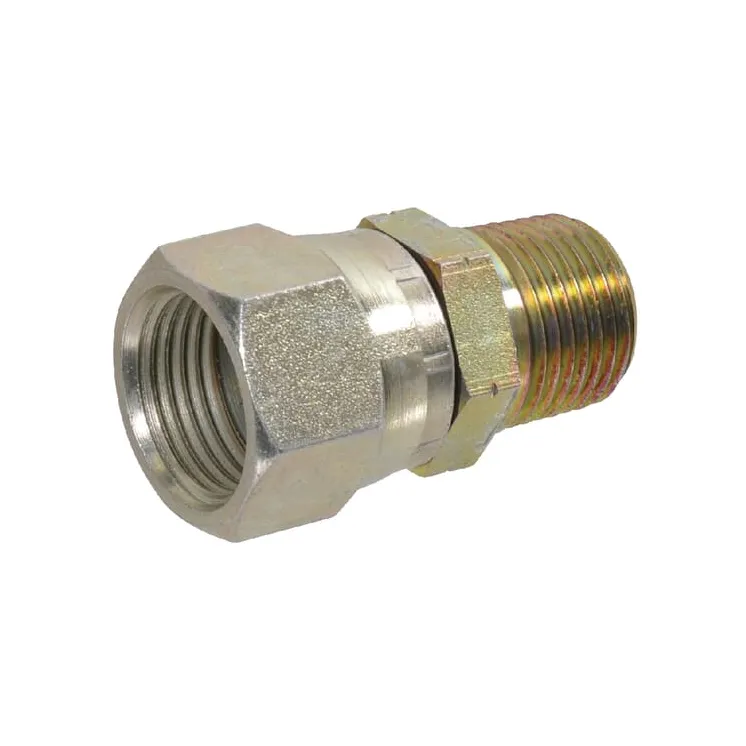

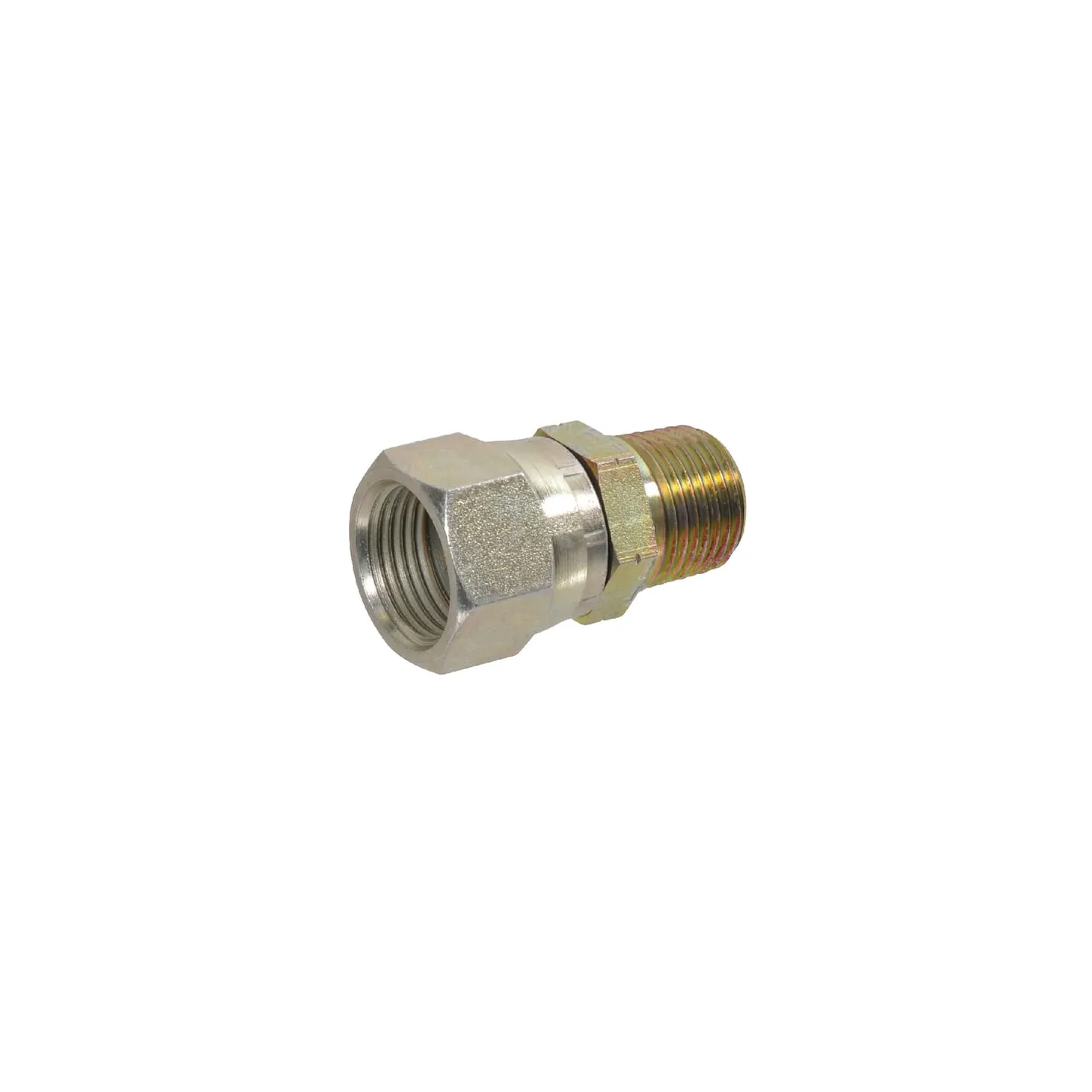

Grozāmais 7/8 JIC x 1/2 NPT FMUN1408

Name: Grozāmais 7/8 JIC x 1/2 NPT FMUN1408
Brand: Alfagomma
SKU: FMUN1408
Price: 13.46 EUR
Availability: InStock

Apmaksas iespējas

13,46 €

AR PVN

4-5 Darba dienas

Grozāmais 7/8 JIC x 1/2 NPT FMUN1408 Alfagomma

IR NOLIKTAVĀ

ID: 88367

Apraksts

Part number	FMUN1408
EAN
Unit	Each
Product details	For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514 Cone according to UNF ANSI
Cone angle	74 °
F2Connection 2, thread diameter	1/2 Inch
Connection 2, thread length	18.5 mm
F2Connection 2, thread type	NPT
Connection 2, threads per inch	14
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	7/8 Inch
C2Connection no 1 thread length	26 mm
F1Connection no 1 thread type	JIC
Connection no 1 threads per inch	14
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
Material	Steel
Max working pressure	280 BAR
Shape	Straight - 2 connection sides
Surface treatment	Galvanised
Total length	49.5 mm
