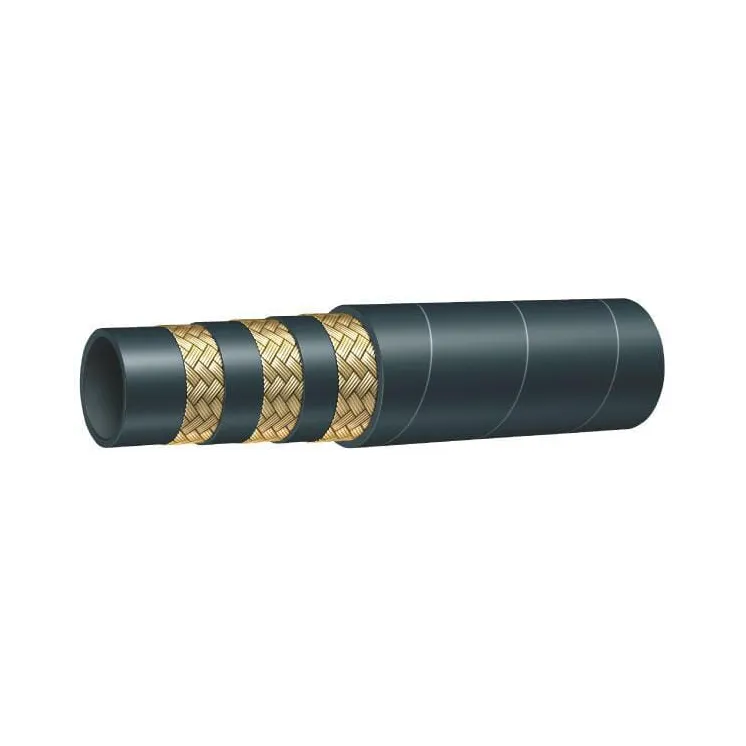

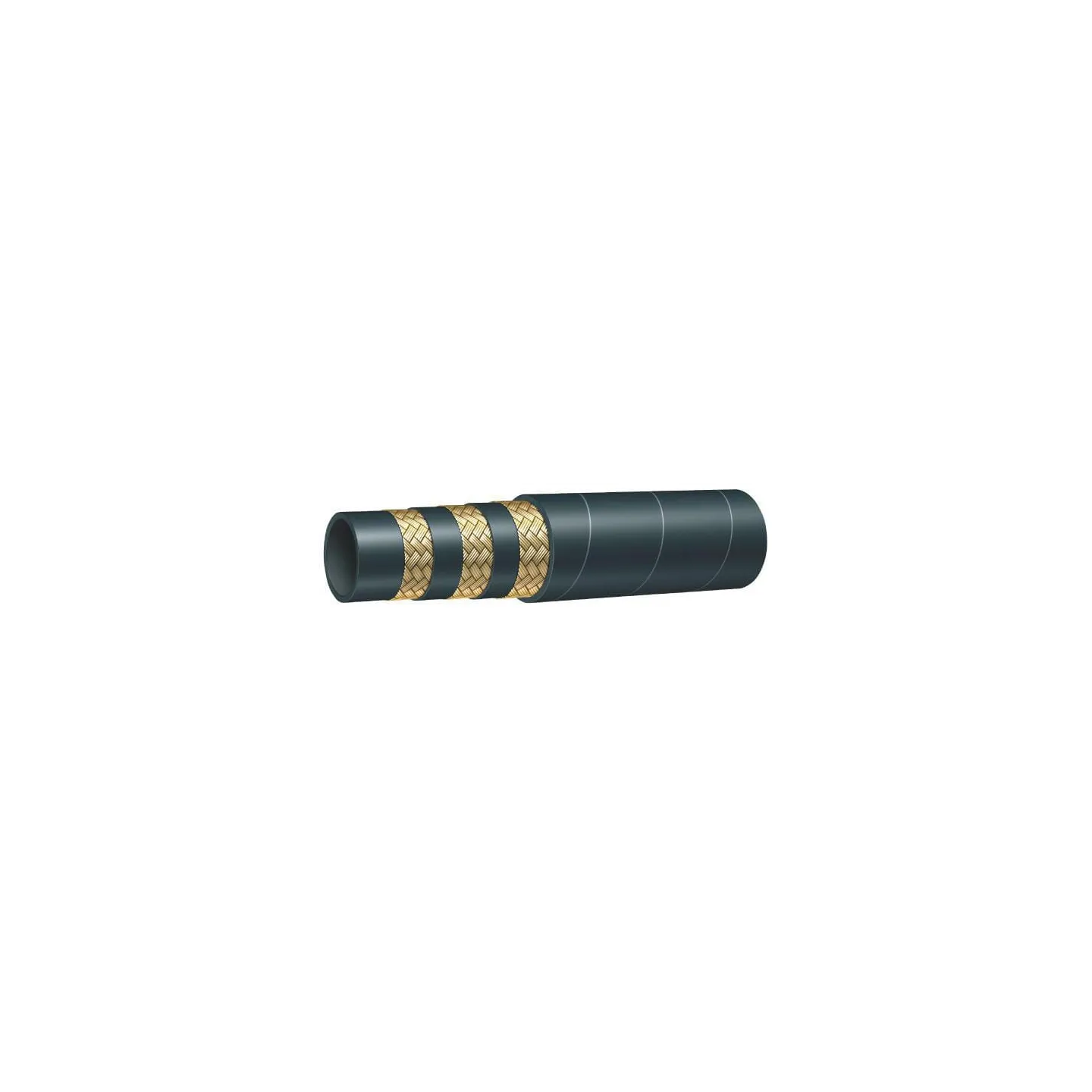

Hidrauliskā šļūtene 3/4 3Lg FXP320

Name: Hidrauliskā šļūtene 3/4 3Lg FXP320
Brand: Alfagomma
SKU: FXP320
Price: 28.11 EUR
Availability: InStock

Apmaksas iespējas

28,11 €

AR PVN

4-5 Darba dienas

Hidrauliskā šļūtene 3/4 3Lg FXP320 Alfagomma

IR NOLIKTAVĀ

ID: 88370

Apraksts

Part number	FXP320
EAN
Unit	Metre
Qty. Rounding	0.01
Details	Innovative, compact design
Application range	Maximum pressure hydraulic systems Forestry machines Construction machines Mineral oil-based and glycol-based fluids Oil, antifreeze solutions, air, water
Properties	Dunlop Hiflex hydraulic hose Durable ozone-resistant and oil-resistant outer sheath Small bend radius, comparable to 2SN hoses
Technical info	Outer hose must be stripped Available lengths: by the metre
Benefits	Higher operating pressure than 4SP hoses
Hose inside diameter	3/4 Inch
Hose inside diameter	19 mm
Max working pressure	375 BAR
Material inside	Nitrile rubber [NBR]
Bend radius	260 mm
Weight	1.43 kg/m
Type	Hydraulic high pressure hose
DN	20 mm
Hose outside diameter	32.2 mm
Burst pressure	1500 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Styrene-butadiene rubber (SBR)
Reinforcement type	Braid
Reinforcement number of plies	3
Reinforcement material	Steel
Number of plies	3
