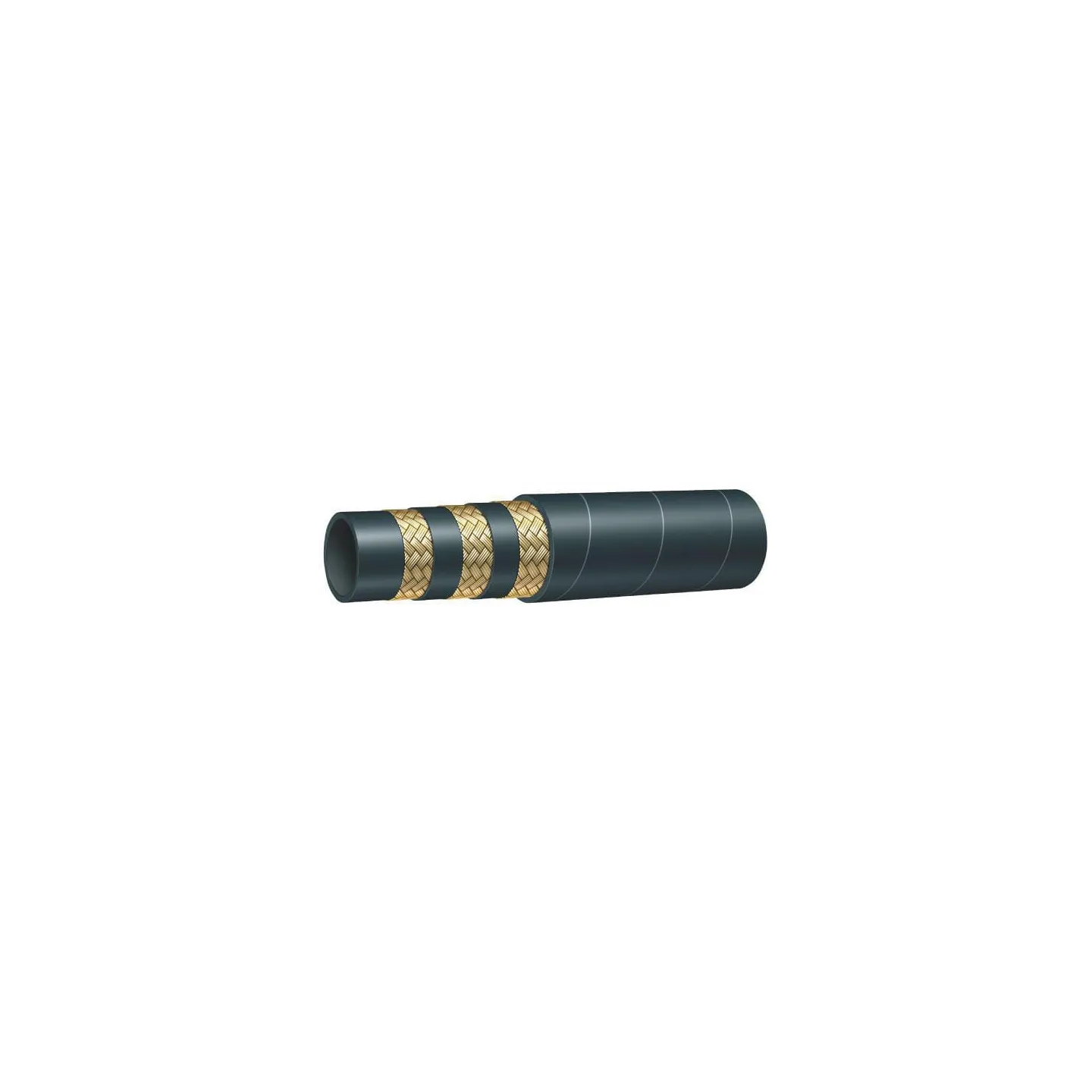

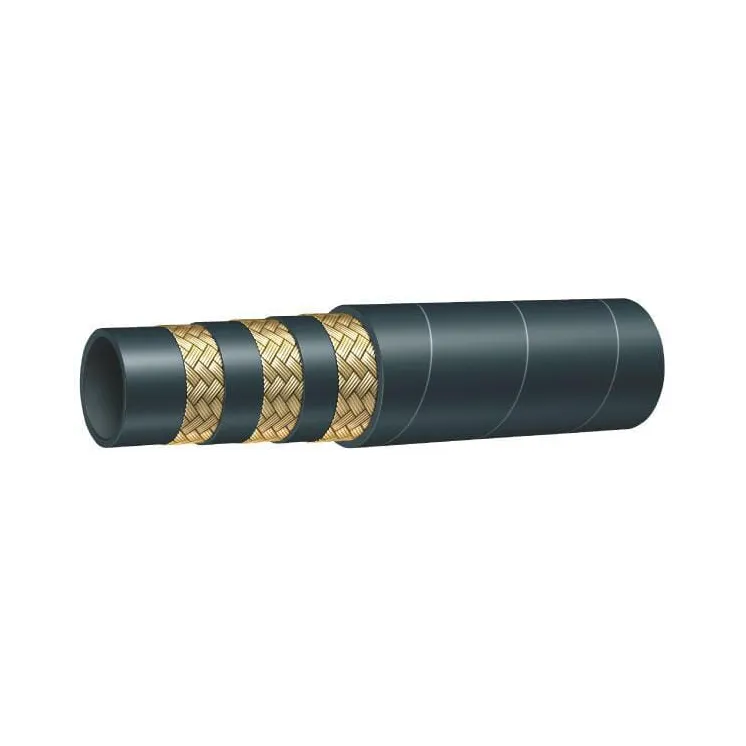

Hidrauliskā šļūtene 1/2 3Lg FXP313

Name: Hidrauliskā šļūtene 1/2 3Lg FXP313
Brand: Alfagomma
SKU: FXP313
Price: 22.24 EUR
Availability: InStock

Apmaksas iespējas

22,24 €

AR PVN

4-5 Darba dienas

Hidrauliskā šļūtene 1/2 3Lg FXP313 Alfagomma

IR NOLIKTAVĀ

ID: 88371

Apraksts

Part number	FXP313
EAN
Unit	Metre
Qty. Rounding	0.01
Details	Innovative, compact design
Application range	Maximum pressure hydraulic systems Forestry machines Construction machines Mineral oil-based and glycol-based fluids Oil, antifreeze solutions, air, water
Properties	Dunlop Hiflex hydraulic hose Durable ozone-resistant and oil-resistant outer sheath Small bend radius, comparable to 2SN hoses
Technical info	Outer hose must be stripped Available lengths: by the metre
Benefits	Higher operating pressure than 4SP hoses
Hose inside diameter	1/2 Inch
Hose inside diameter	12.7 mm
Max working pressure	470 BAR
Material inside	Nitrile rubber [NBR]
Bend radius	160 mm
Weight	0.88 kg/m
Type	Hydraulic high pressure hose
DN	12 mm
Hose outside diameter	24.8 mm
Burst pressure	1880 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Styrene-butadiene rubber (SBR)
Reinforcement type	Braid
Reinforcement number of plies	3
Reinforcement material	Steel
Number of plies	3
