| Part number | HT2SN13 | |
|---|---|---|
| EAN | ||
| Unit | Metre | |
| Qty. Rounding | 0.01 | |
| Pros |
| |
| Product details |
| |
| Hose inside diameter | 1/2 Inch | |
| Hose inside diameter | 13 mm | |
| Max working pressure | 275 BAR | |
| Material inside | Synthetic rubber | |
| Bend radius | 175 mm | |
| Weight | 0.549 kg/m | |

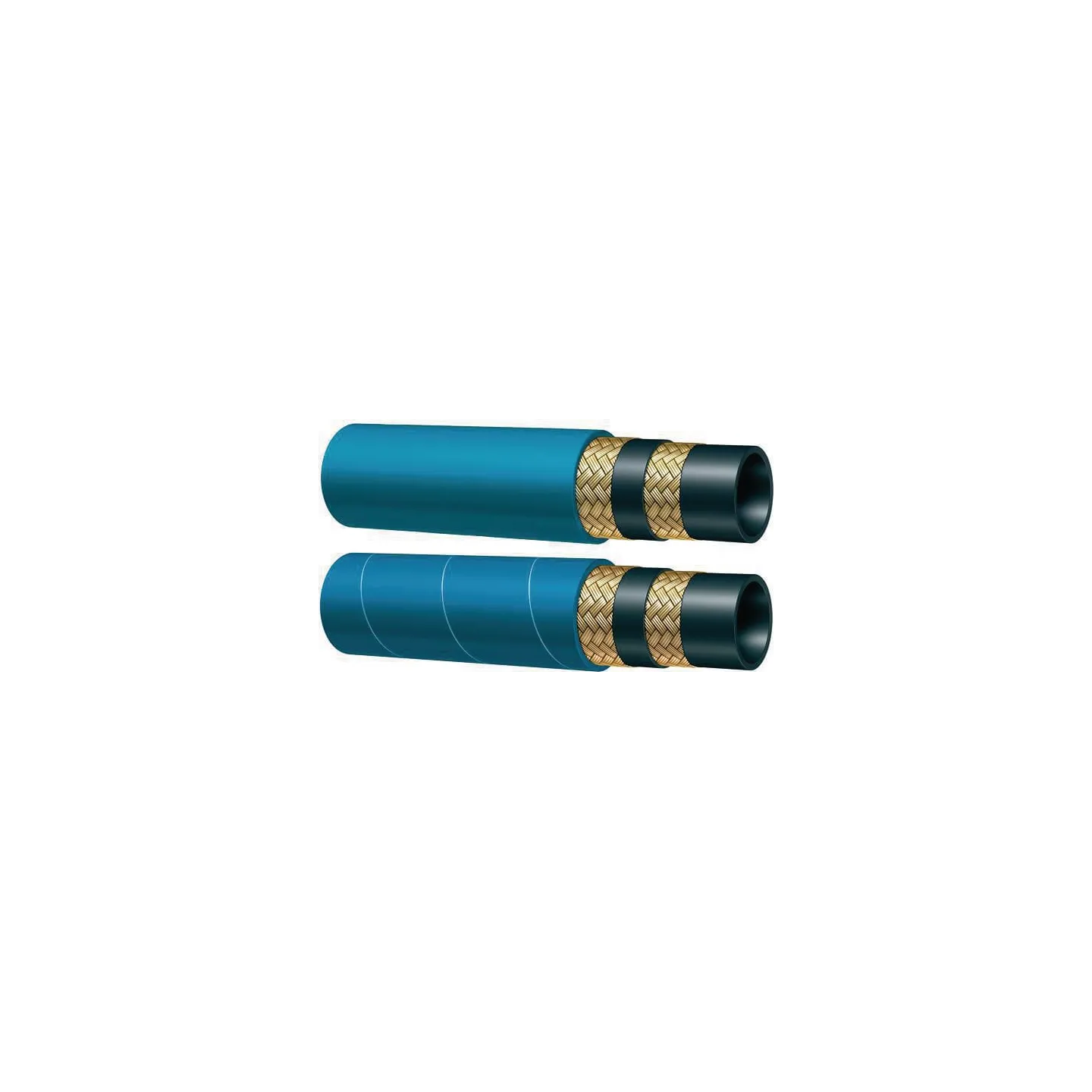

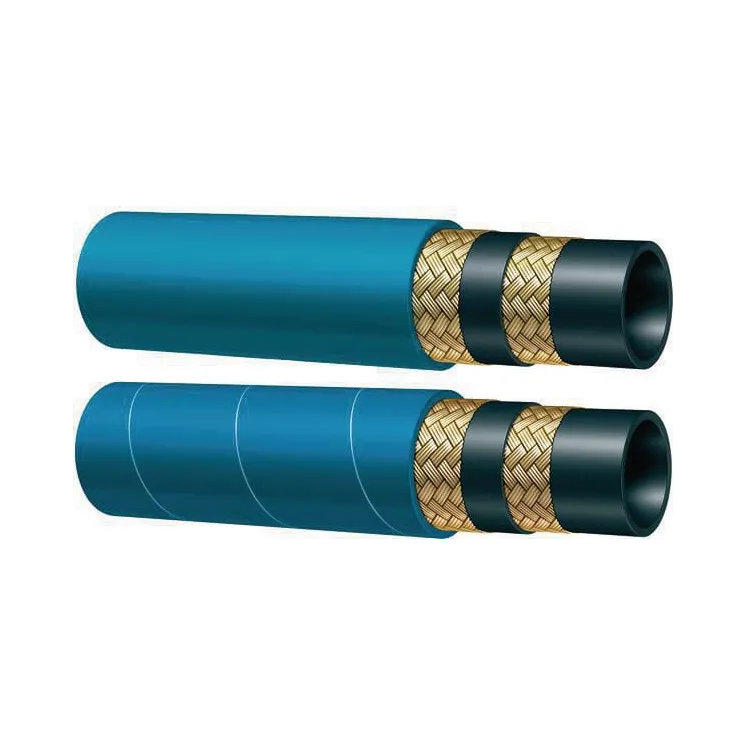

| Type | Hydraulic high pressure hose | |
| DN | 13 mm | |
| Hose outside diameter | 21.1 mm | |
| Hose outside diameter | 0.83 Inch | |
| Max working pressure | 4000 lbf/in² | |
| Burst pressure | 1100 BAR | |
| Burst pressure | 110 MPa | |
| Burst pressure | 16000 lbf/in² | |
| Medium | Hydraulic oil | |
| Max working temperature | 150 °C | |
| Max. working temperature | 300 °F | |
| Min working temperature | -40 °C | |
| Min. working temperature | -40 °F | |
| Material outside | Synthetic rubber | |
| Reinforcement type | Braid | |
| Reinforcement number of plies | 2 | |
| Reinforcement material | Steel | |
| Number of plies | 2 | |
| Weight | 0.37 lb/ft | |
| Bend radius | 6.89 Inch | |
| Norm | SAE 100 R2AT | |
| ISO standard | 1436 | |
| EN standard | 853 2SN |
