| Part number | HSKHF20 | |
|---|---|---|
| EAN | ||
| Unit | Metre | |
| Qty. Rounding | 0.01 | |
| Pros |
| |
| Product details |
| |
| Hose inside diameter | 3/4 Inch | |
| Hose inside diameter | 19 mm | |
| Max working pressure | 215 BAR | |
| Material inside | Synthetic rubber | |
| Bend radius | 200 mm | |
| Weight | 0.76 kg/m | |

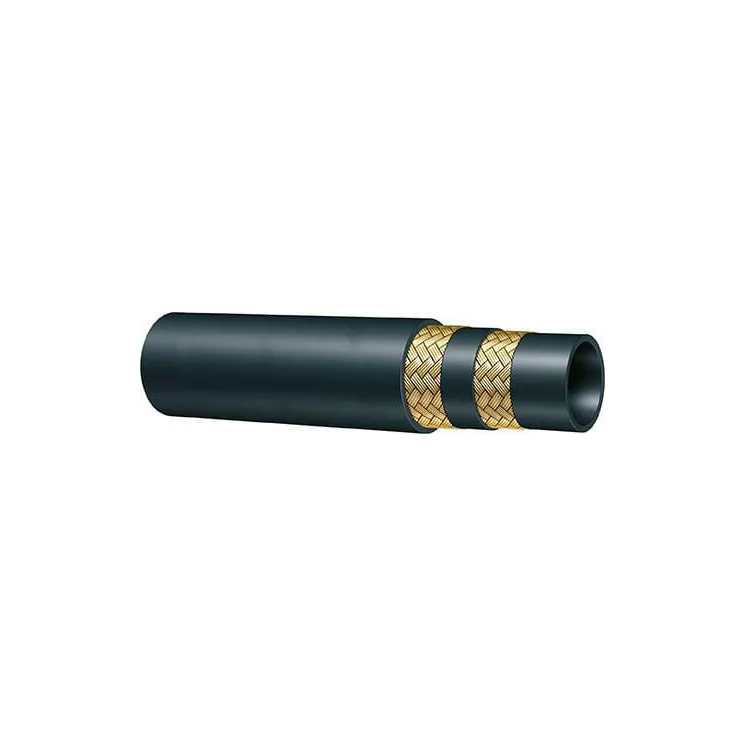

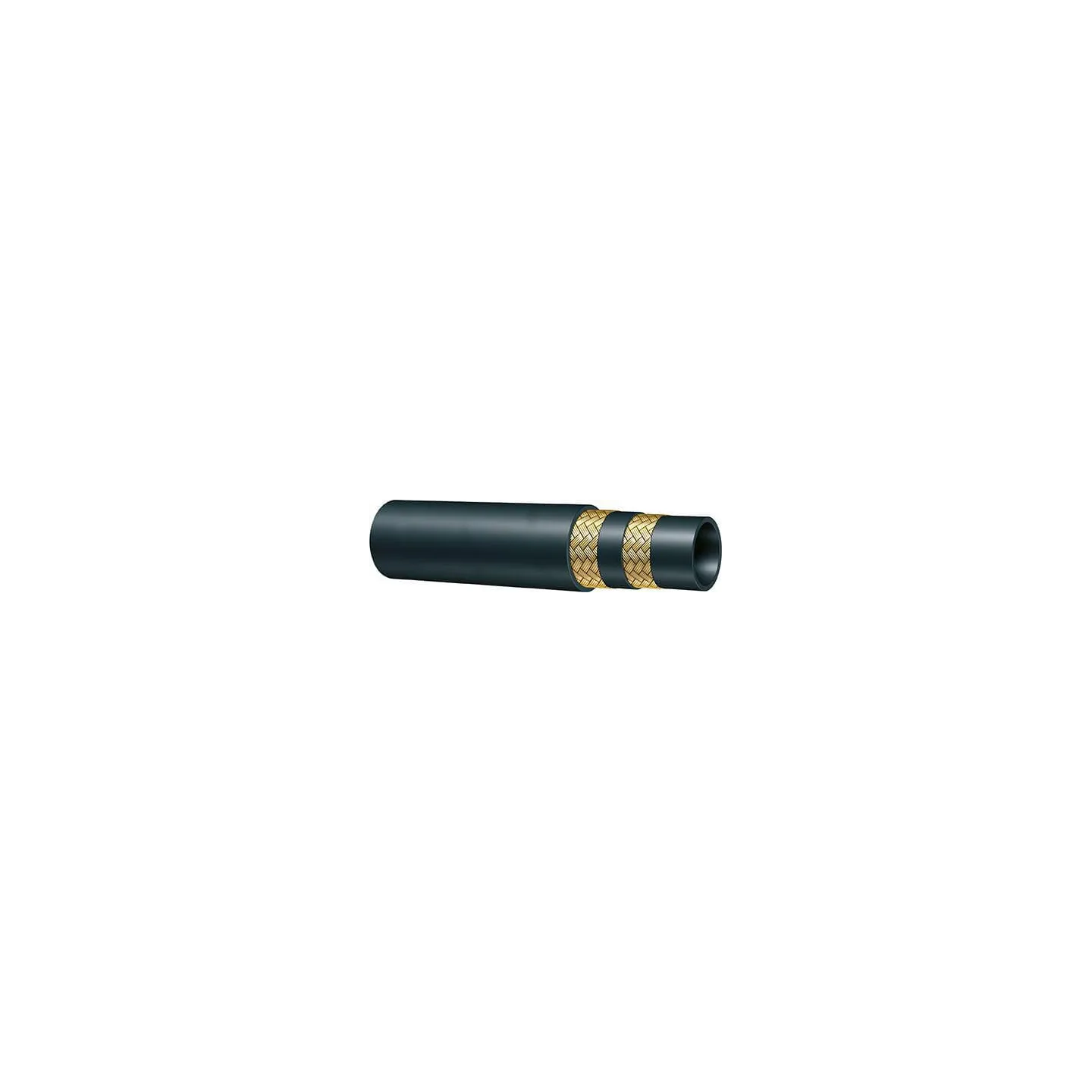

| Type | Hydraulic high pressure hose | |
| DN | 20 mm | |
| Hose outside diameter | 27.7 mm | |
| Hose outside diameter | 1.09 Inch | |
| Max working pressure | 3120 lbf/in² | |
| Burst pressure | 860 BAR | |
| Burst pressure | 86 MPa | |
| Burst pressure | 12500 lbf/in² | |
| Medium | Hydraulic oil | |
| Max working temperature | 100 °C | |
| Max. working temperature | 212 °F | |
| Min working temperature | -40 °C | |
| Min. working temperature | -40 °F | |
| Material outside | Synthetic rubber | |
| Reinforcement type | Braid | |
| Reinforcement number of plies | 2 | |
| Reinforcement material | Steel | |
| Number of plies | 2 | |
| Weight | 0.54 lb/ft | |
| Bend radius | 7.87 Inch | |
| Norm | SAE 100 R16S | |
| ISO standard | 11237 | |
| EN standard | 857 2SC | |
| Approval | MSHA | |
| Additional info | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. |
