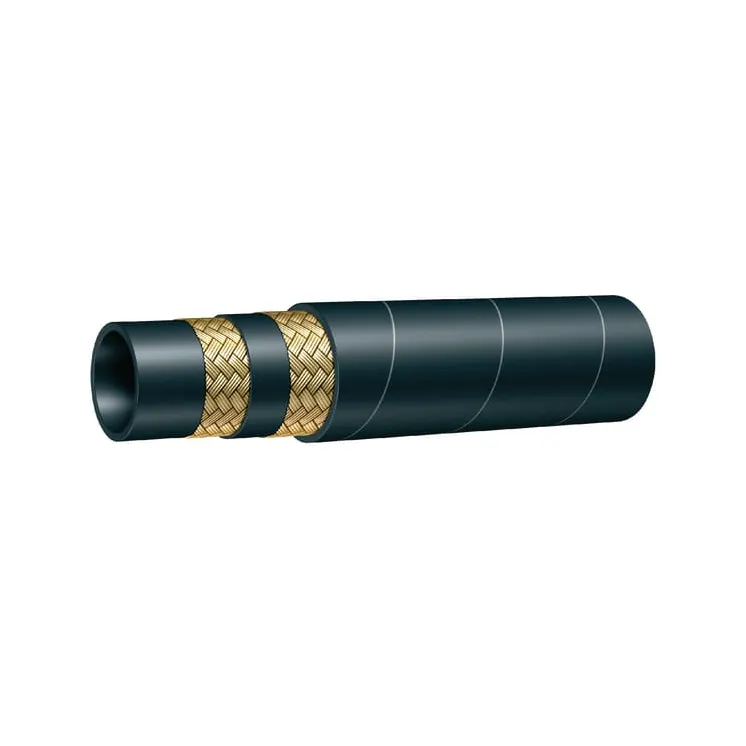

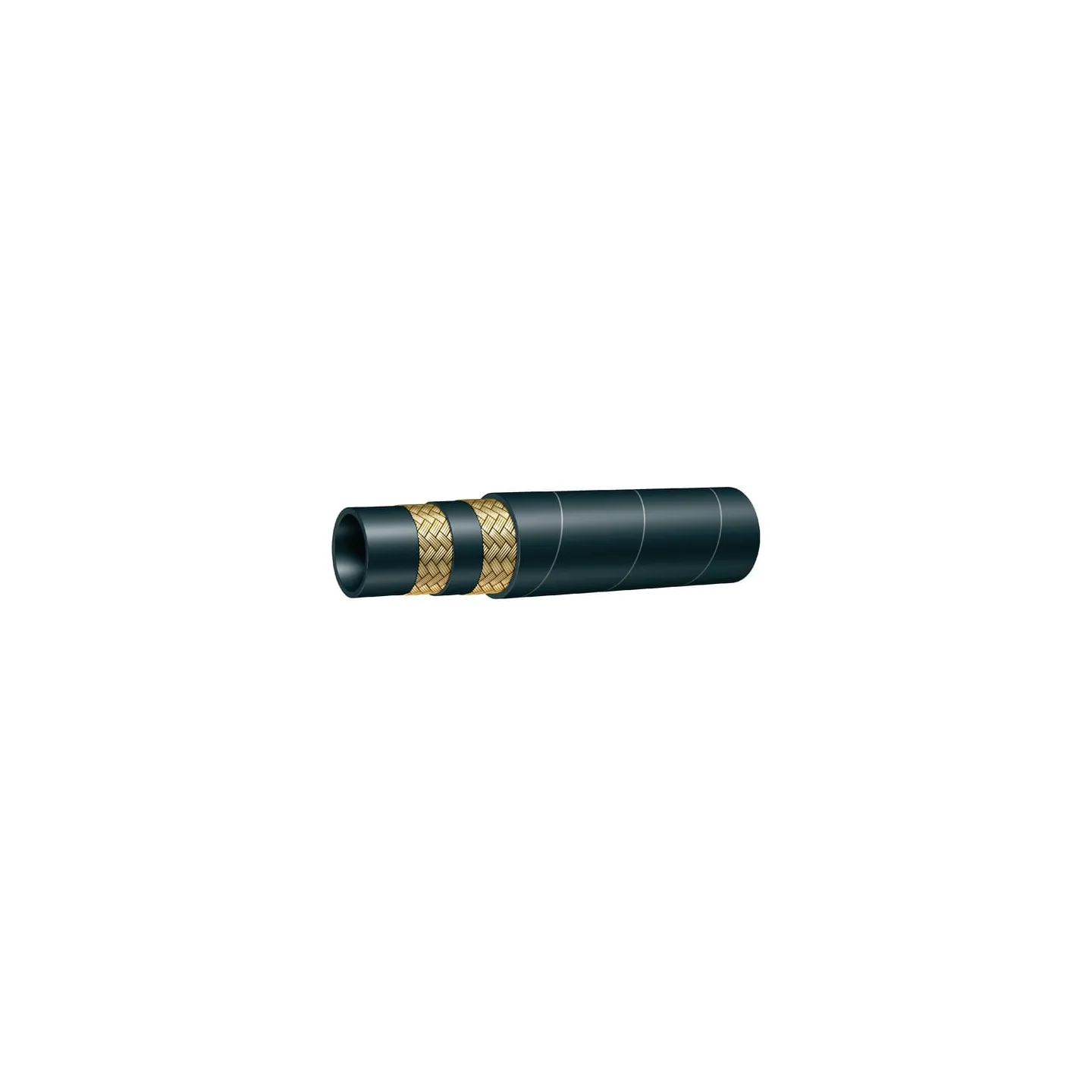

Hidrauliskā šļūtene EN857-2SC-DN06 HSKPQ6 HSK6

Name: Hidrauliskā šļūtene EN857-2SC-DN06 HSKPQ6 HSK6
Brand: Alfagomma
SKU: HSKPQ6
Price: 7.2 EUR
Availability: InStock

Apmaksas iespējas

7,20 €

AR PVN

4-5 Darba dienas

Hidrauliskā šļūtene EN857-2SC-DN06 HSKPQ6 Alfagomma HSK6

IR NOLIKTAVĀ

ID: 88711

Apraksts

Part number	HSKPQ6
EAN
Unit	Metre
Qty. Rounding	0.01
Pros	High operating pressure Small bending radius Extremely wear-resistant outer coating (15x vs standard) Outer coating resistant to ozone and oil
Product details	Hydraulic hose rubber compact with 2 braided steel wire layers of high tensile strength Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions HSK-PQ 32 through HSK-PQ 50 must be peeled before use Available by the metre Available on 50-metre reel, up to 1/2" Available on 25-metre reel, up to 3/4" Always consult the latest press dimensions tables, see downloads at the bottom of each web page For longer single-piece lengths, please contact our sales department
Hose inside diameter	1/4 Inch
Hose inside diameter	6.4 mm
Max working pressure	420 BAR
Material inside	Synthetic rubber
Bend radius	51 mm
Weight	0.29 kg/m
Type	Hydraulic high pressure hose
DN	6 mm
Hose outside diameter	13.2 mm
Burst pressure	1680 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Synthetic rubber
Reinforcement type	Braid
Reinforcement number of plies	2
Reinforcement material	Steel
Number of plies	2
EN standard	857 2SC
Approval	MSHA
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
