| Part number | HT2SN10 | |
|---|---|---|
| EAN | ||
| Unit | Metre | |
| Qty. Rounding | 0.01 | |
| Pros |
| |
| Product details |
| |
| Hose inside diameter | 3/8 Inch | |
| Hose inside diameter | 10 mm | |
| Max working pressure | 330 BAR | |
| Material inside | Synthetic rubber | |
| Bend radius | 125 mm | |
| Weight | 0.48 kg/m | |

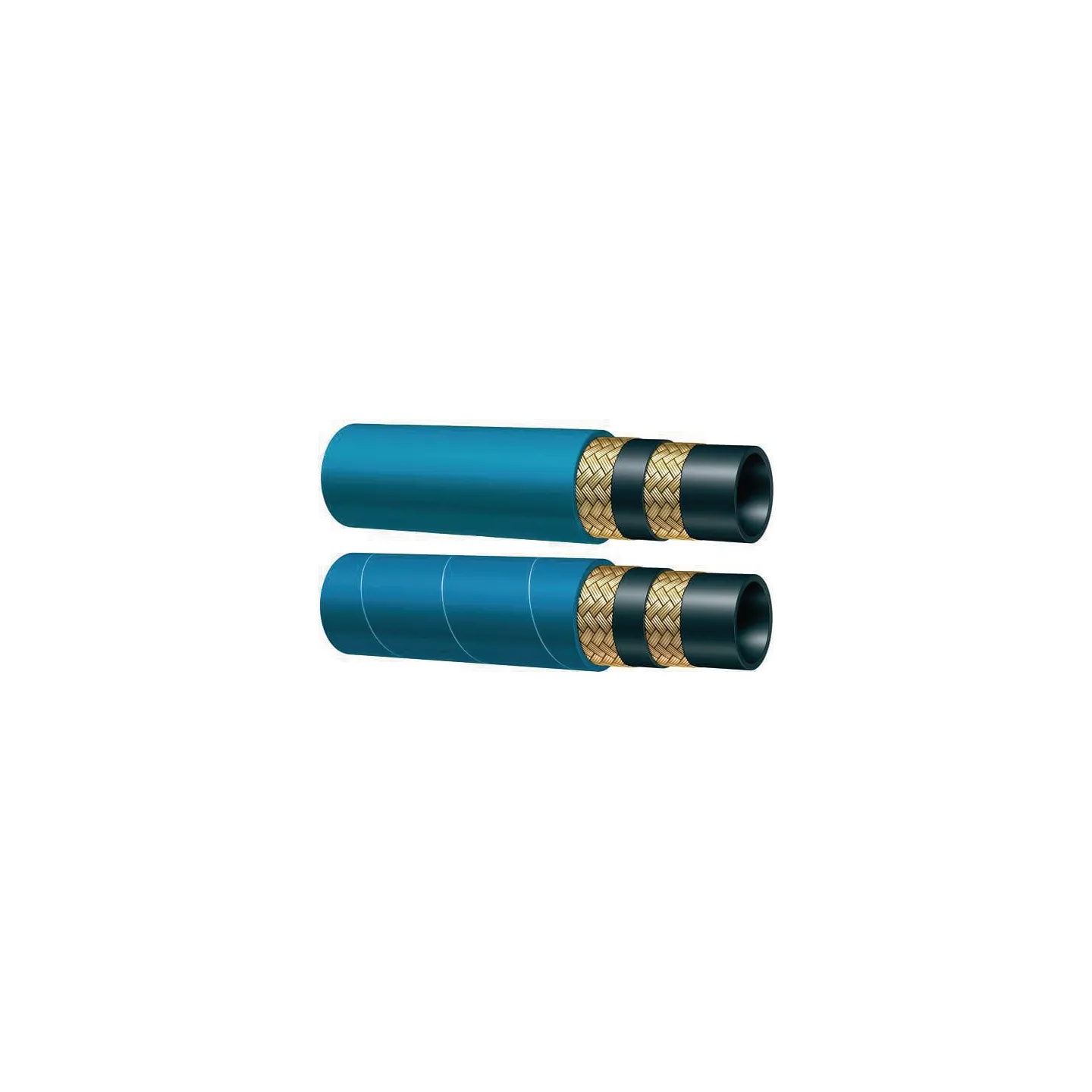

| Type | Hydraulic high pressure hose | |
| DN | 10 mm | |
| Hose outside diameter | 18.4 mm | |
| Hose outside diameter | 0.72 Inch | |
| Max working pressure | 4800 lbf/in² | |
| Burst pressure | 1320 BAR | |
| Burst pressure | 132 MPa | |
| Burst pressure | 19200 lbf/in² | |
| Medium | Hydraulic oil | |
| Max working temperature | 150 °C | |
| Max. working temperature | 300 °F | |
| Min working temperature | -40 °C | |
| Min. working temperature | -40 °F | |
| Material outside | Synthetic rubber | |
| Reinforcement type | Braid | |
| Reinforcement number of plies | 2 | |
| Reinforcement material | Steel | |
| Number of plies | 2 | |
| Weight | 0.33 lb/ft | |
| Bend radius | 4.92 Inch | |
| Norm | SAE 100 R2AT | |
| ISO standard | 1436 | |
| EN standard | 853 2SN |
