| Part number | HSKHF10 | |
|---|
| EAN | | |
|---|
| Unit | Metre | |
|---|
| Qty. Rounding | 0.01 | |
|---|
| Pros | - Fewer harmful emissions released during cutting
- Eco-friendly production
- Halogen-free rubber surface
- Lightweight and flexible
| |
|---|
| Product details | - Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions
- A smaller bending radius
- Lower weight
- Durable outer coating resistant to ozone and oil
- Mineral oil-based and glycol-based fluids
- Vegetable and mineral lubricants
- Crude oils, heating oil, coolant, compressed air
- Also available on 25 and 50 metre reels, see category "hoses on Kramp reel"
- For longer single-piece lengths, please contact our sales department
| |
|---|
| Long description | - Application:
- Hydraulic systems
- Gardening machines
- Agricultural equipment
- Mineral oil-based and glycol-based fluids
- Vegetable and mineral lubricants
- Crude oils, heating oil, coolant, compressed air
-
- Benefits:
- Fewer harmful emissions released during cutting
- Eco-friendly production
-
- Details:
- Halogen-free rubber surface
- Lightweight and flexible
-
- Properties:
- Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions
- Smaller bending radius
- Lower weight
- Durable outer coating resistant to ozone and oil
-
- Technical information:
- Available lengths: 25 and 50-metre reels or by the metre
| |
|---|
| Hose inside diameter | 3/8 Inch | |
|---|
| Hose inside diameter | 9.5 mm | |
|---|
| Max working pressure | 330 BAR | |
|---|
| Material inside | Synthetic rubber | |
|---|
| Bend radius | 90 mm | |
|---|
| Weight | 0.36 kg/m | |
|---|

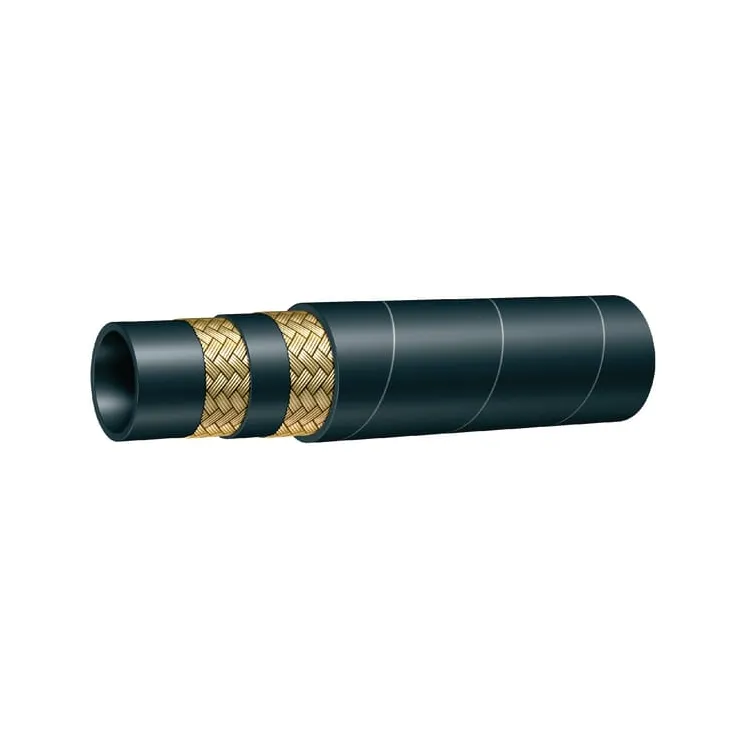

| Type | Hydraulic high pressure hose | |
|---|
| DN | 10 mm | |
|---|
| Hose outside diameter | 17 mm | |
|---|
| Burst pressure | 1320 BAR | |
|---|
| Medium | Hydraulic oil | |
|---|
| Max working temperature | 100 °C | |
|---|
| Min working temperature | -40 °C | |
|---|
| Material outside | Synthetic rubber | |
|---|
| Reinforcement type | Braid | |
|---|
| Reinforcement number of plies | 2 | |
|---|
| Reinforcement material | Steel | |
|---|
| Number of plies | 2 | |
|---|
| Norm | SAE 100 R16S | |
|---|
| ISO standard | 11237 | |
|---|
| EN standard | 857 2SC | |
|---|
| Approval | MSHA | |
|---|
| Additional info | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. | |
|---|
