Hidrauliskā šļūtene EN857-2SC-DN10 HSKPQ10 Alfagomma HSK10 HSKMT10
search
  • Hidrauliskā šļūtene EN857-2SC-DN10 HSKPQ10 Alfagomma HSK10 HSKMT10

Hidrauliskā šļūtene EN857-2SC-DN10 HSKPQ10 HSK10 HSKMT10

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
8,03 €
AR PVN
4-5 Darba dienas
Hidrauliskā šļūtene EN857-2SC-DN10 HSKPQ10 Alfagomma HSK10 HSKMT10
IR NOLIKTAVĀ

88726

  • Zīmols
    Alfagomma
  • Norāde
    HSKPQ10
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    HSK10 HSKMT10
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
HSKPQ10
EAN
Unit
Metre
Qty. Rounding
0.01
Pros
  • High operating pressure
  • Small bending radius
  • Extremely wear-resistant outer coating (15x vs standard)
  • Outer coating resistant to ozone and oil
Product details

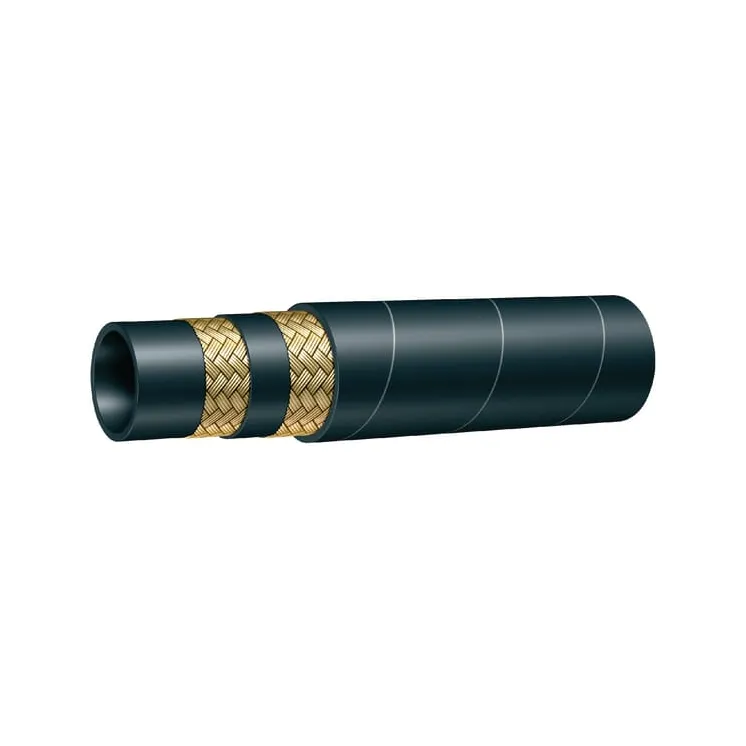

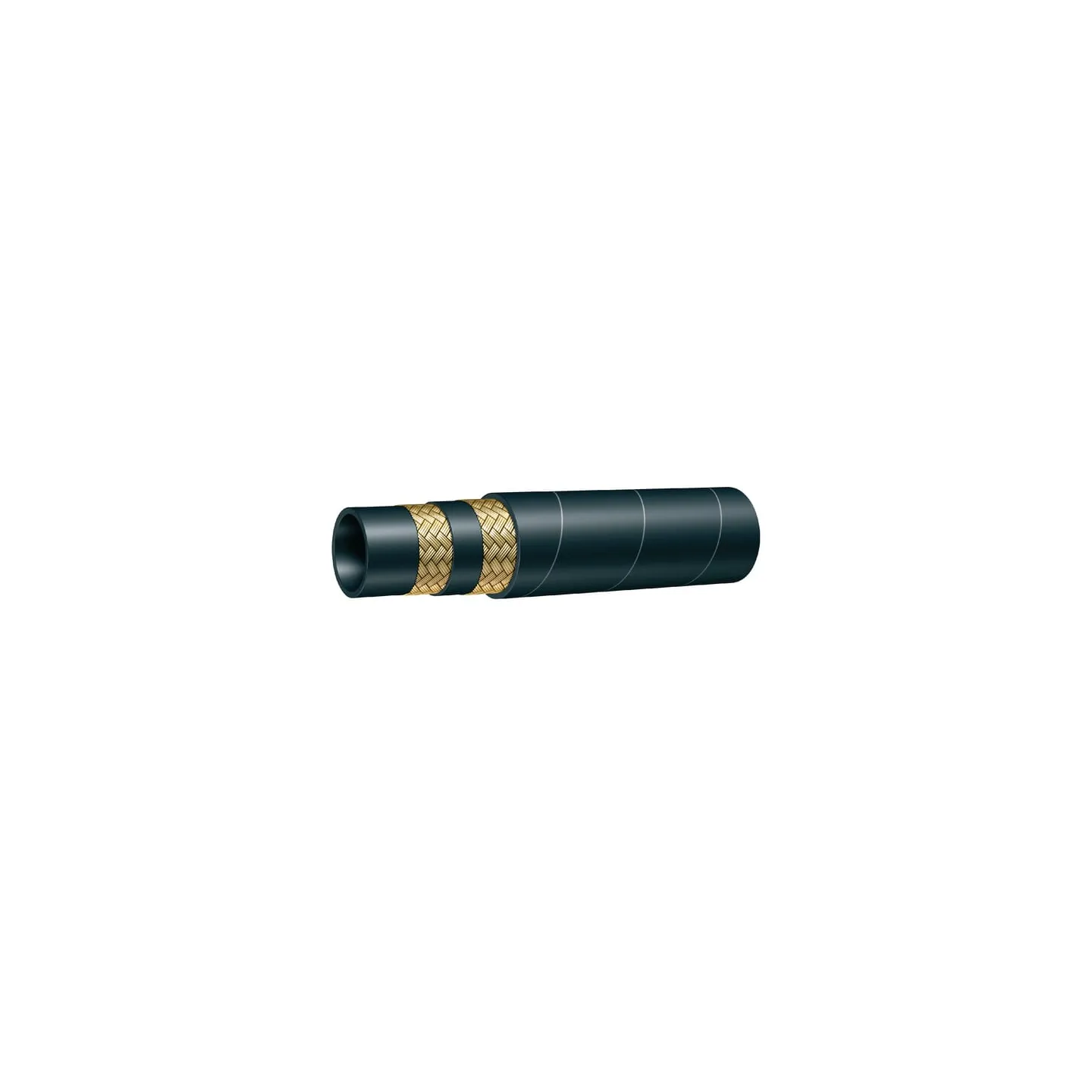

  • Hydraulic hose rubber compact with 2 braided steel wire layers of high tensile strength
  • Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions
  • HSK-PQ 32 through HSK-PQ 50 must be peeled before use
  • Available by the metre
  • Available on 50-metre reel, up to 1/2"
  • Available on 25-metre reel, up to 3/4"
  • Always consult the latest press dimensions tables, see downloads at the bottom of each web page
  • For longer single-piece lengths, please contact our sales department
Long description
  • Application range:
  • Standard applications in hydraulic systems
  • Agricultural equipment
  • Construction machines
  • Mineral oil-based and glycol-based fluids
  • Vegetable and mineral lubricants
  • Crude oils, heating oil, coola
Hose inside diameter
3/8 Inch
Hose inside diameter
9.5 mm
Max working pressure
350 BAR
Material inside
Synthetic rubber
Bend radius
64 mm
Weight
0.4 kg/m
Type
Hydraulic high pressure hose
DN
10 mm
Hose outside diameter
17.4 mm
Burst pressure
1400 BAR
Medium
Hydraulic oil
Max working temperature
100 °C
Min working temperature
-40 °C
Material outside
Synthetic rubber
Reinforcement type
Braid
Reinforcement number of plies
2
Reinforcement material
Steel
Number of plies
2
EN standard
857 2SC
Approval
MSHA
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
