| Part number | HSKHF25 | |
|---|---|---|
| EAN | ||
| Unit | Metre | |
| Qty. Rounding | 0.01 | |
| Pros |
| |
| Product details |
| |
| Hose inside diameter | 1 Inch | |
| Hose inside diameter | 25.4 mm | |
| Max working pressure | 165 BAR | |
| Material inside | Synthetic rubber | |
| Bend radius | 250 mm | |
| Weight | 1.13 kg/m | |

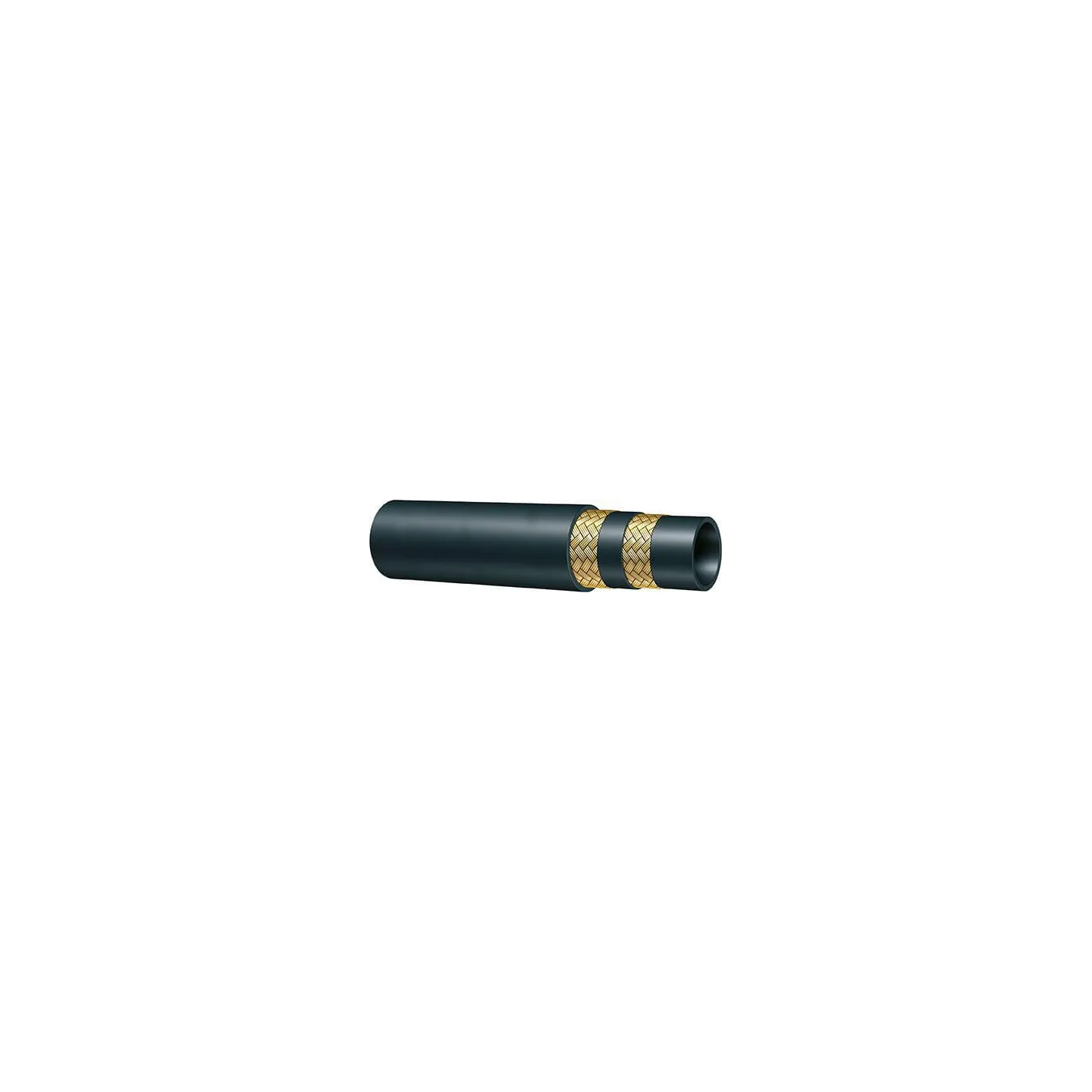

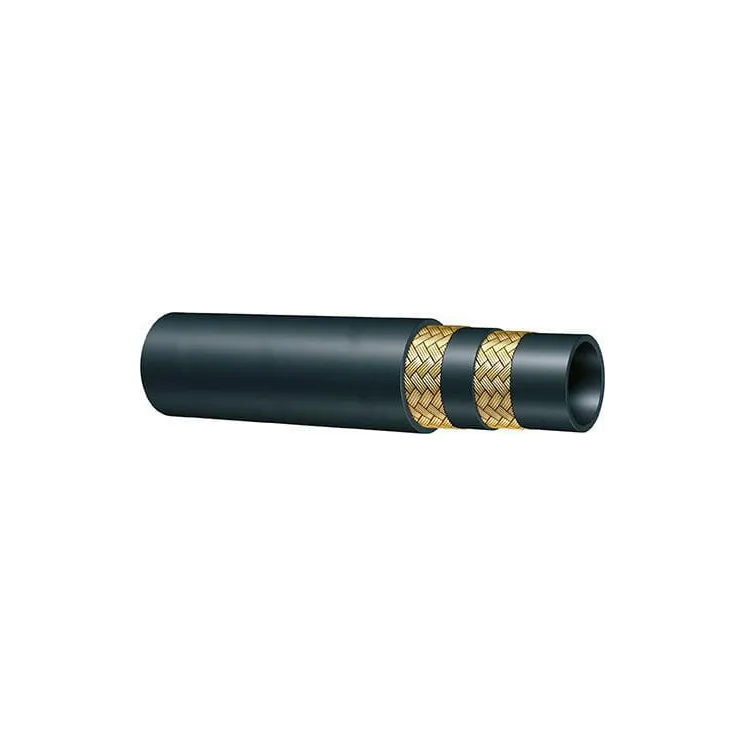

| Type | Hydraulic high pressure hose | |
| DN | 25 mm | |
| Hose outside diameter | 34.6 mm | |
| Hose outside diameter | 1.37 Inch | |
| Max working pressure | 2400 lbf/in² | |
| Burst pressure | 660 BAR | |
| Burst pressure | 66 MPa | |
| Burst pressure | 9600 lbf/in² | |
| Medium | Hydraulic oil | |
| Max working temperature | 100 °C | |
| Max. working temperature | 212 °F | |
| Min working temperature | -40 °C | |
| Min. working temperature | -40 °F | |
| Material outside | Synthetic rubber | |
| Reinforcement type | Braid | |
| Reinforcement number of plies | 2 | |
| Reinforcement material | Steel | |
| Number of plies | 2 | |
| Weight | 0.78 lb/ft | |
| Bend radius | 9.84 Inch | |
| ISO standard | 11237 | |
| EN standard | 857 2SC | |
| Approval | MSHA |
