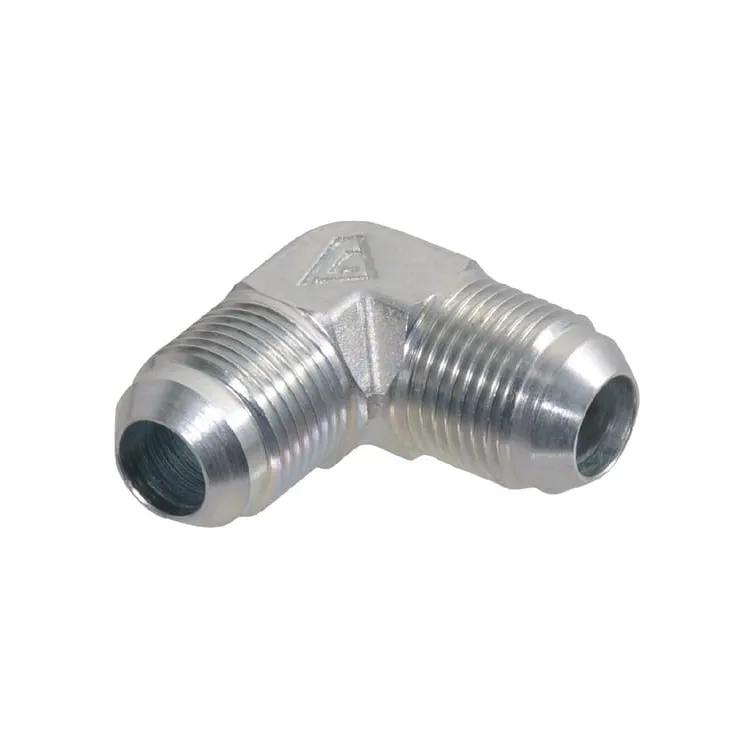

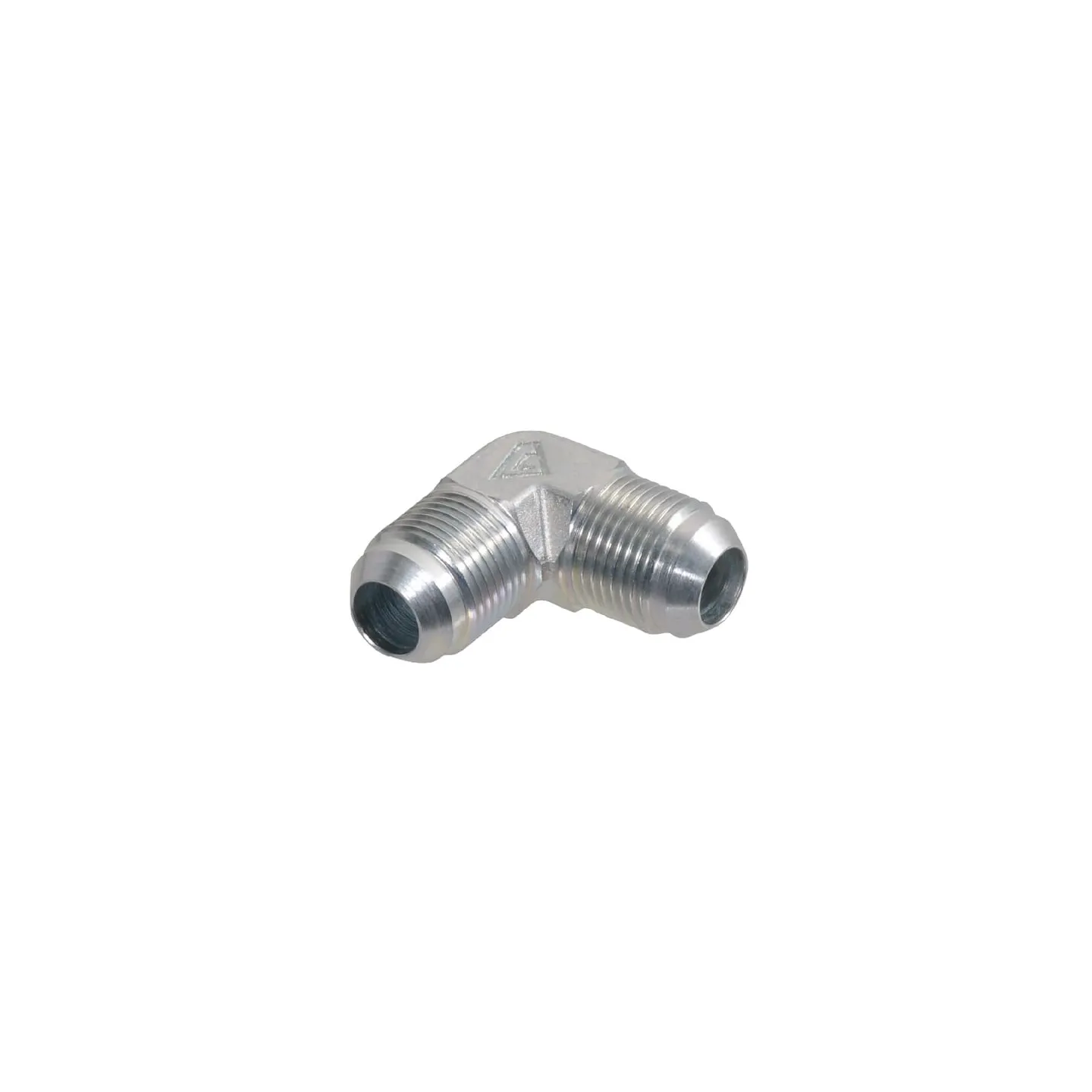

Elkoņa savienojums. M 7/8 JIC 90° K14

Name: Elkoņa savienojums. M 7/8 JIC 90° K14
Brand: Alfagomma
SKU: K14
Price: 7.03 EUR
Availability: InStock

Apmaksas iespējas

7,03 €

AR PVN

4-5 Darba dienas

Elkoņa savienojums. M 7/8 JIC 90° K14 Alfagomma

IR NOLIKTAVĀ

ID: 88742

Apraksts

Part number	K14
EAN
Unit	Each
Product details	For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. Connection thread on the 37º cone side is UNF in accordance with ANSI
Cone angle	74 °
Connection 2, centre to end distance	36.5 mm
Connection 2, type	Thread
Connection 2, type - male/female	Male
FConnection no 1 thread diameter	7/8 Inch
Connection no 1 thread type	JIC
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Max working pressure	280 BAR
Pipe diameter	16 mm
Pipe diameter	5/8 Inch
Shape	Elbow - 2 connection sides
