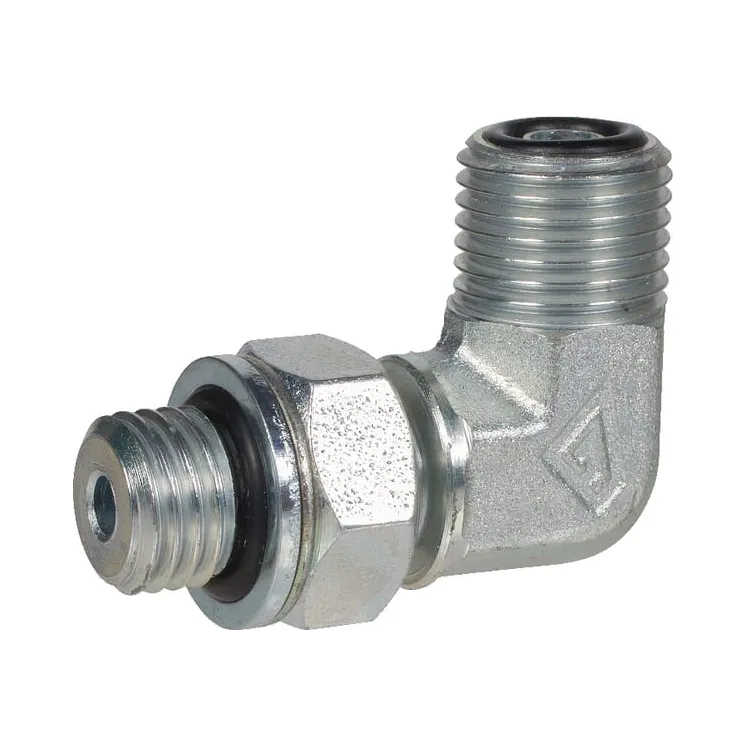

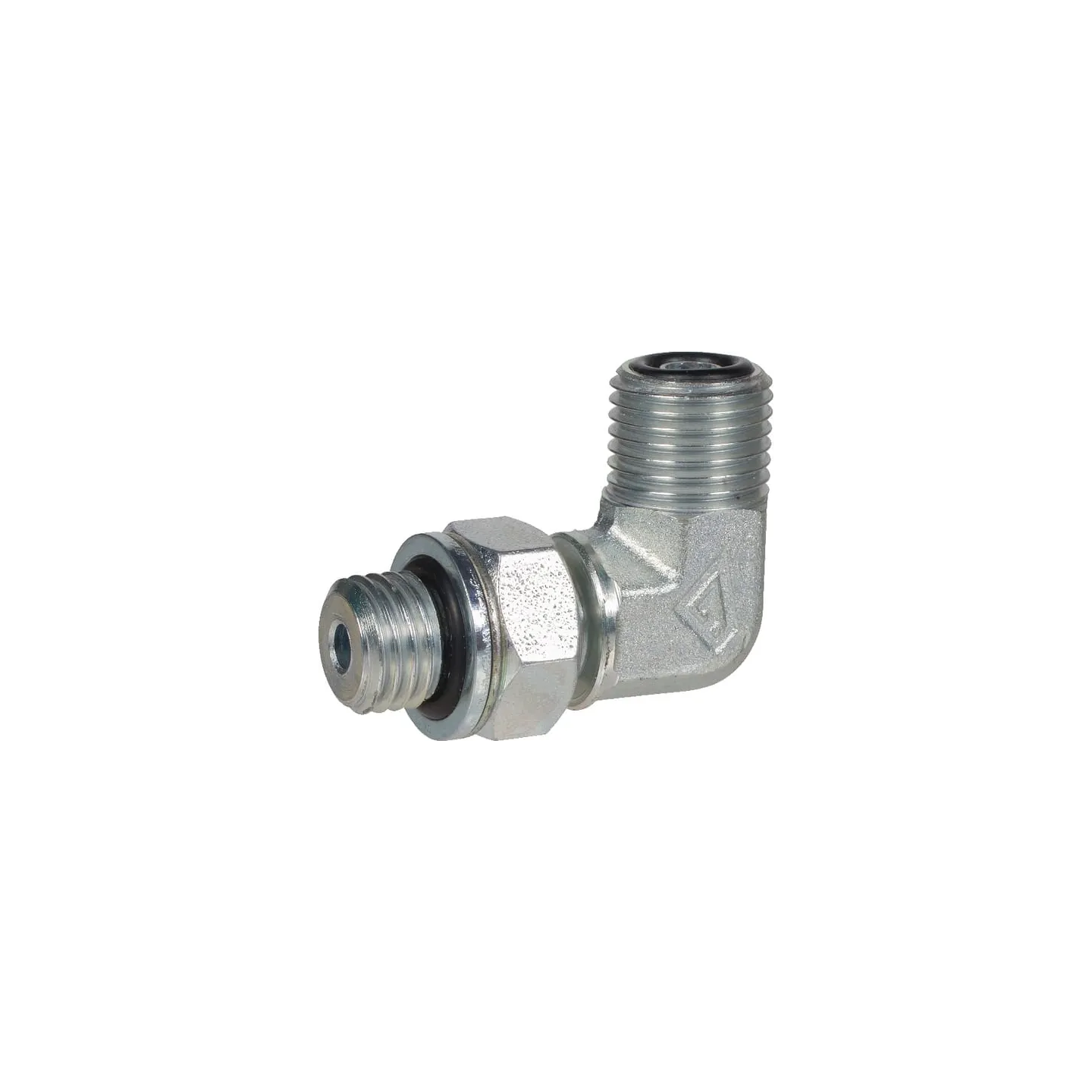

Elkonis ORFS 9/16xM10 KIOM0910

Name: Elkonis ORFS 9/16xM10 KIOM0910
Brand: Alfagomma
SKU: KIOM0910
Price: 9.78 EUR
Availability: InStock

Apmaksas iespējas

9,78 €

AR PVN

4-5 Darba dienas

Elkonis ORFS 9/16xM10 KIOM0910 Alfagomma

IR NOLIKTAVĀ

ID: 88746

Apraksts

Part number	KIOM0910
EAN
Unit	Each
Long description	ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time.
Pros	High tightening torques Reusable
Product details	O-Ring Face Seals O-ring in recess on the connection surface of the nipple Standard : SAE I 1453 Material: Steel Surface treatment: Zinc-plated Viton seal available on request
Angle	90 °
L2Connection 2, centre to end distance	30.5 mm
Connection 2, thread pitch	1.00 mm
F2Connection 2, thread diameter	M10
Connection 2, thread type	Metric
Connection 2, type	Thread
Connection 2, type - male/female	Male
CH2Connection 2, wrench size	14.0 mm
L1Connection no 1 center to end distance	21.5 mm
F1Connection no 1 thread diameter	9/16 Inch
Connection no 1 thread type	ORFS
Connection no 1 threads per inch	18
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
CH1Connection no 1 wrench size	14.0 mm
Material	Steel
Shape	Elbow - 2 connection sides
