| Part number | KIM1418 | |
|---|---|---|
| EAN | ||
| Unit | Each | |

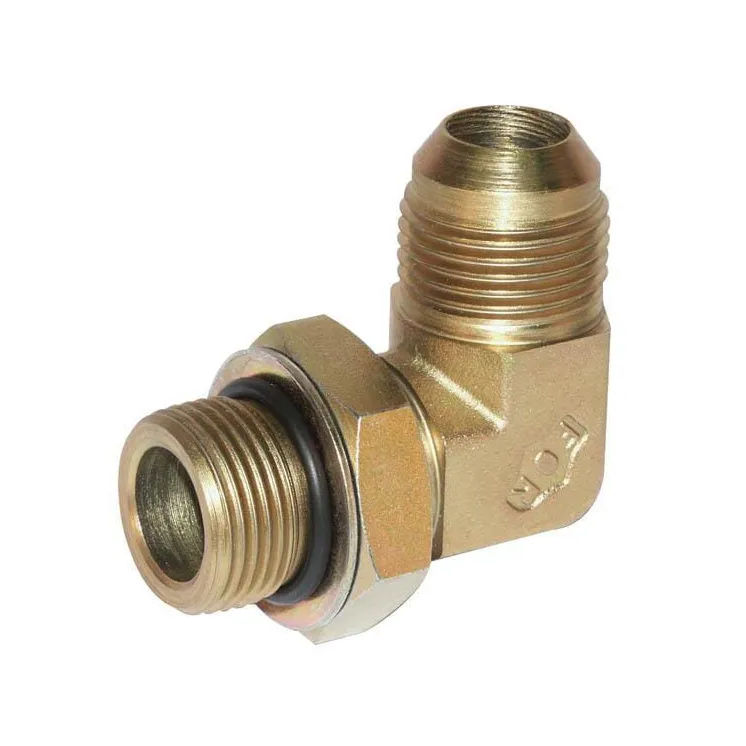

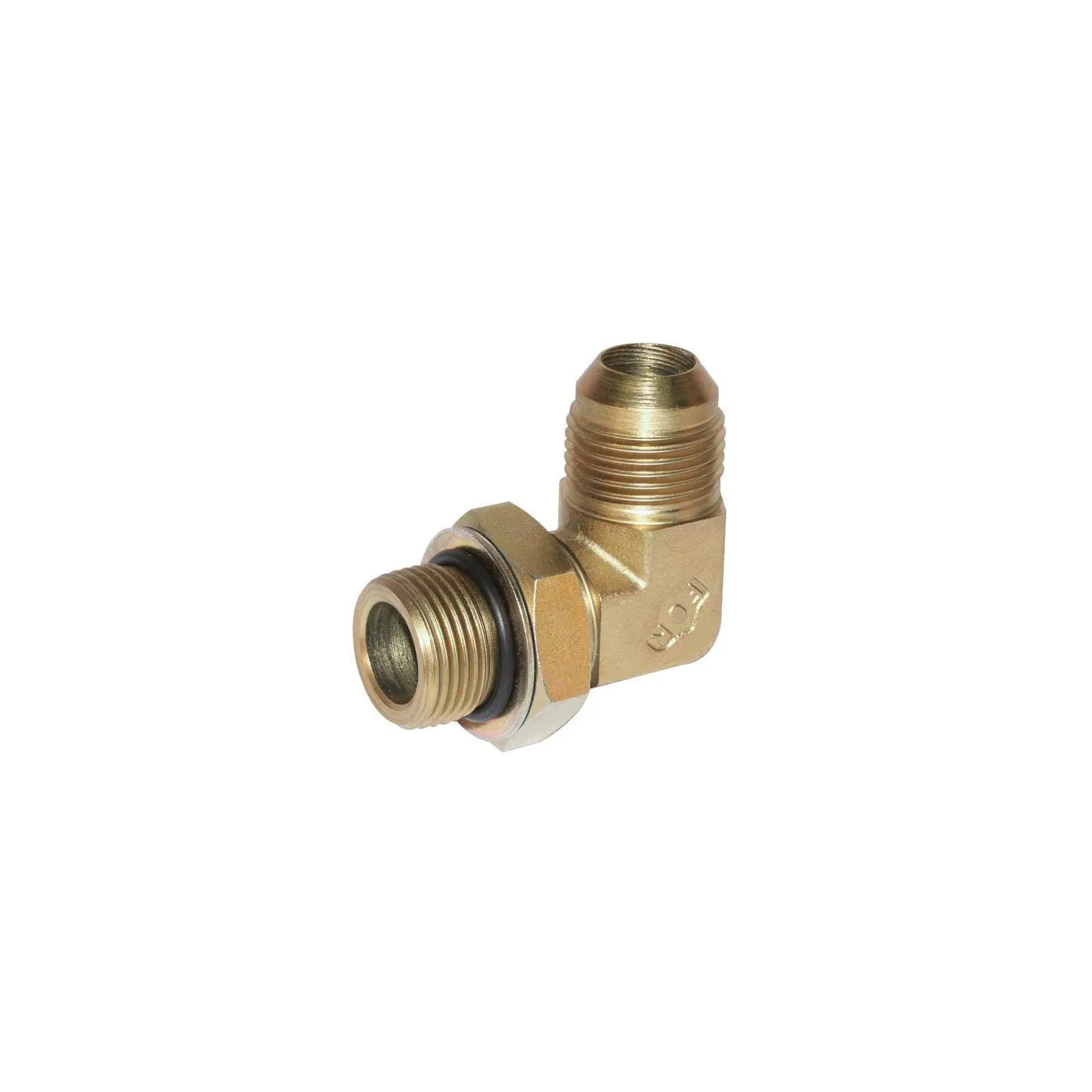

| Product details | For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. - Connection thread on the 37º cone side is UNF in accordance with ANSI | |
| Angle | 90 ° | |
| Cone angle | 74 ° | |
| Connection 2, centre to end distance | 36.5 mm | |
| F2Connection 2, thread pitch | 1.50 mm | |
| Connection 2, thread diameter | M18 | |
| Connection 2, thread type | Metric | |
| Connection 2, type | Thread | |
| Connection 2, type - male/female | Male | |
| F1Connection no 1 thread diameter | 7/8 Inch | |
| Connection no 1 thread type | JIC | |
| Connection no 1 threads per inch | 14 | |
| Connection no 1 type - male/female | Male | |
| Connection no 1 type | Thread | |
| L1Connections distance | 41.5 mm | |
| Max working pressure | 280 BAR | |
| Pipe diameter | 14 mm | |
| Pipe diameter | 5/8 Inch | |
| Shape | Elbow - 2 connection sides |
