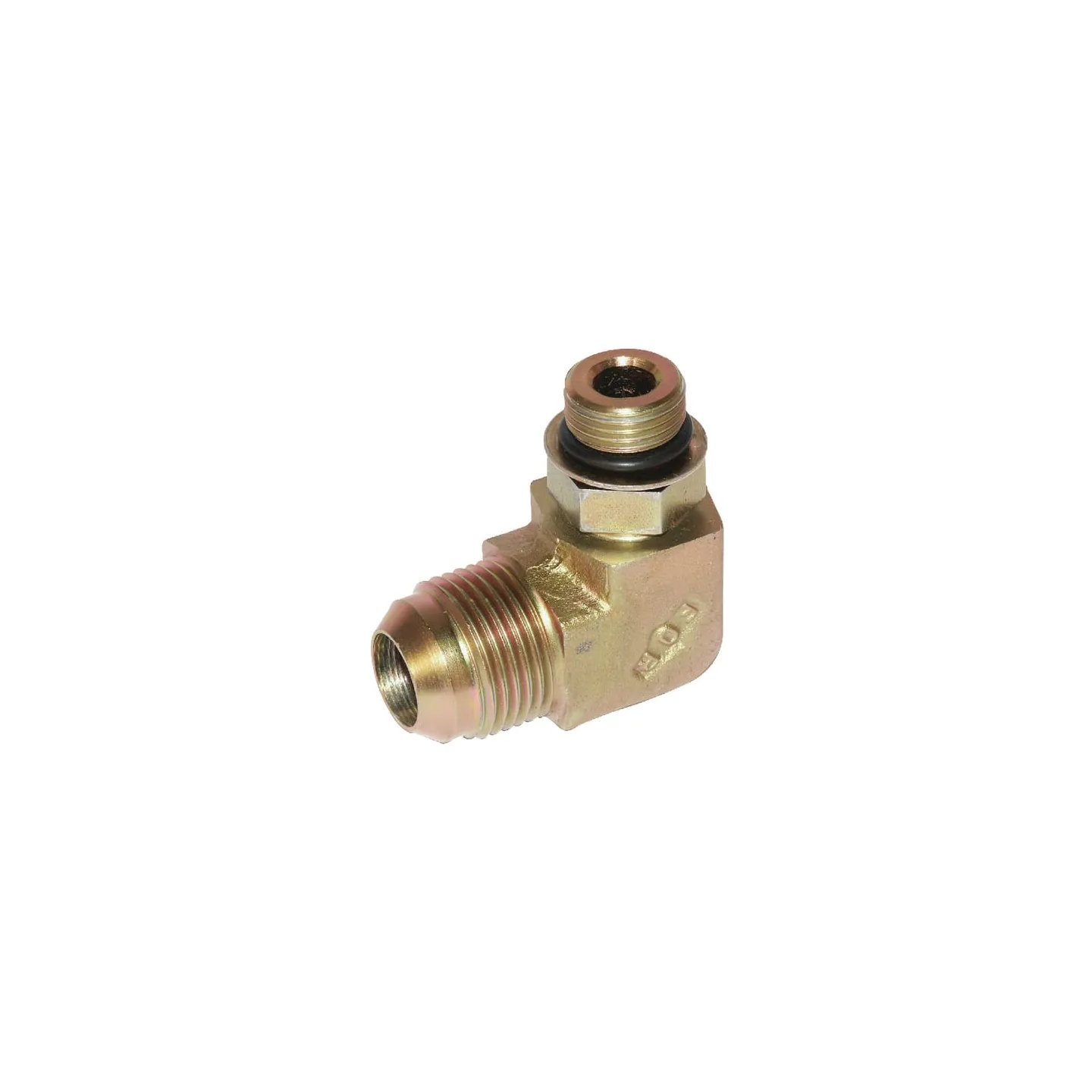

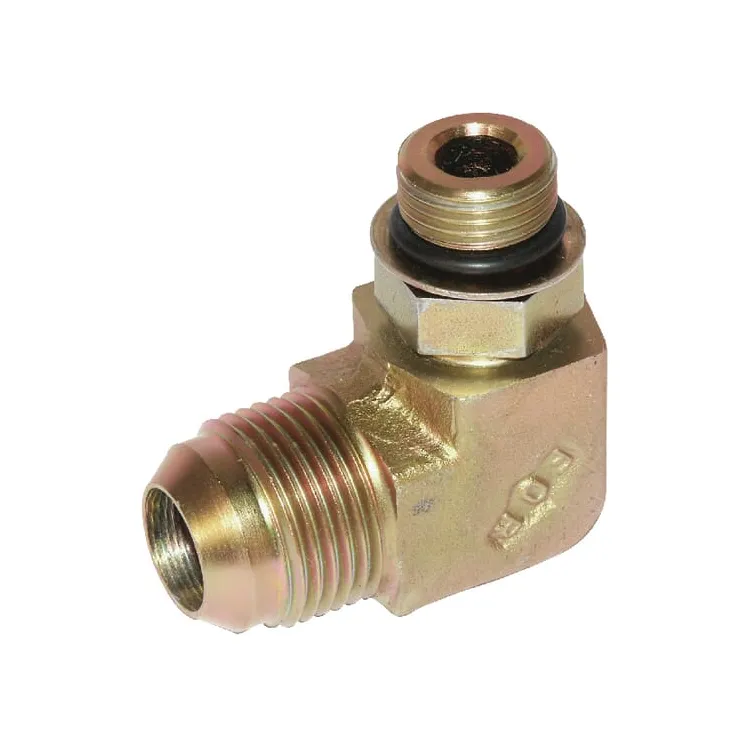

Elkonis 7/16 JICx7/16 UNF KIU0707 K07SAE

Name: Elkonis 7/16 JICx7/16 UNF KIU0707 K07SAE
Brand: Alfagomma
SKU: KIU0707
Price: 9.3 EUR
Availability: InStock

Apmaksas iespējas

9,30 €

AR PVN

4-5 Darba dienas

Elkonis 7/16 JICx7/16 UNF KIU0707 Alfagomma K07SAE

IR NOLIKTAVĀ

ID: 88753

Apraksts

Part number	KIU0707
EAN
Unit	Each
Product details	UNF cone 37°
Long description	Details: adjustable coupling Technical information: For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	22.5 mm
Connection 2, thread diameter	7/16 Inch
Connection 2, thread type	UNF
Connection 2, threads per inch	20
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	26 mm
F1Connection no 1 thread diameter	7/16 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	20
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Material	Steel
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
Working pressure	380 BAR
