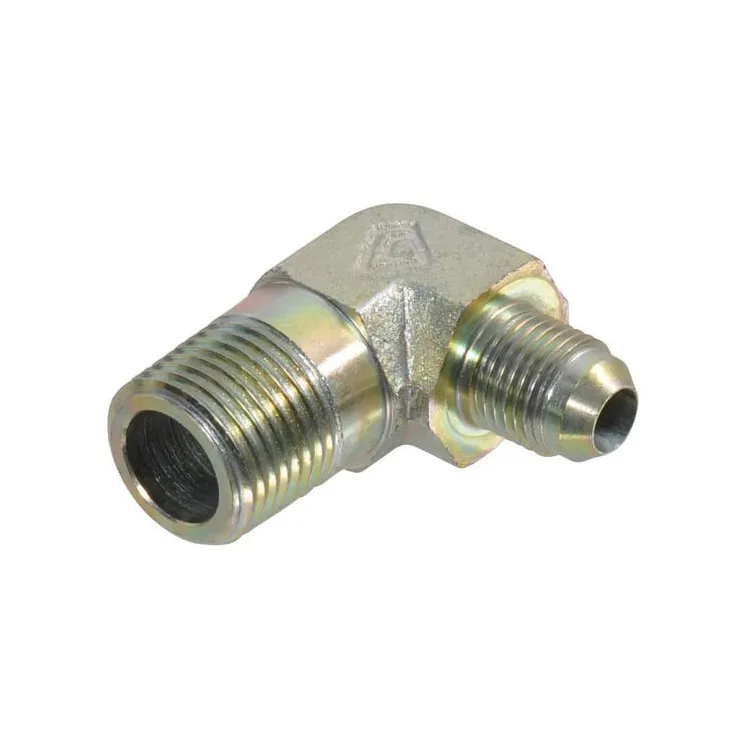

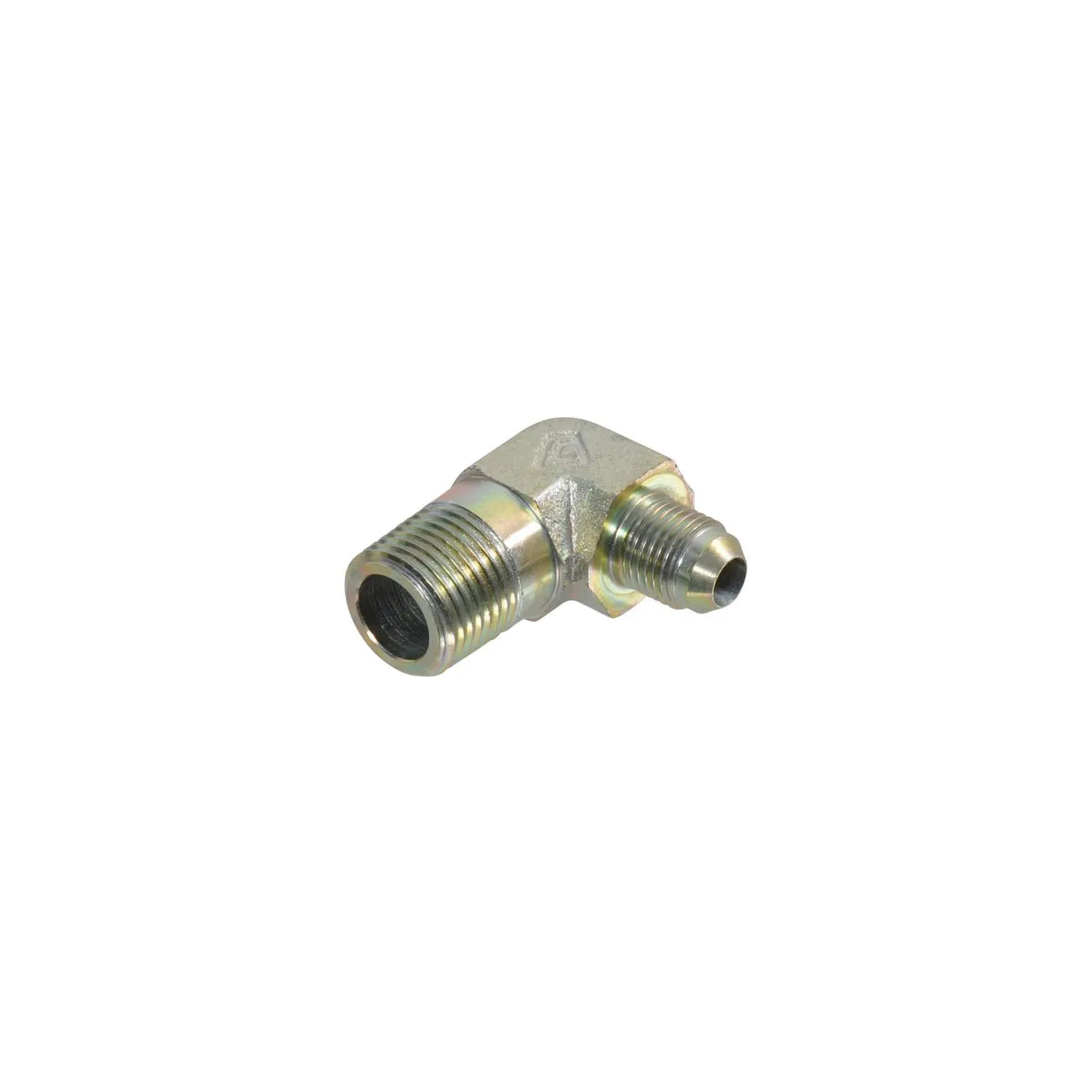

Elkoņa savienojums 7/16JIC x 1/8NPT KIN0702

Name: Elkoņa savienojums 7/16JIC x 1/8NPT KIN0702
Brand: Alfagomma
SKU: KIN0702
Price: 3.97 EUR
Availability: InStock

Apmaksas iespējas

3,97 €

AR PVN

4-5 Darba dienas

Elkoņa savienojums 7/16JIC x 1/8NPT KIN0702 Alfagomma

IR NOLIKTAVĀ

ID: 88754

Apraksts

Part number	KIN0702
EAN
Unit	Each
Angle	90 °
Cone angle	74 °
L1Connection 2, centre to end distance	24 mm
F2Connection 2, thread diameter	1/8 Inch
Connection 2, thread type	NPT
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	7/16 Inch
Connection no 1 thread type	JIC
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
L2Connections distance	20.3 mm
Material	Steel
Max working pressure	380 BAR
Pipe diameter	6 mm
Pipe diameter	1/4 Inch
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
