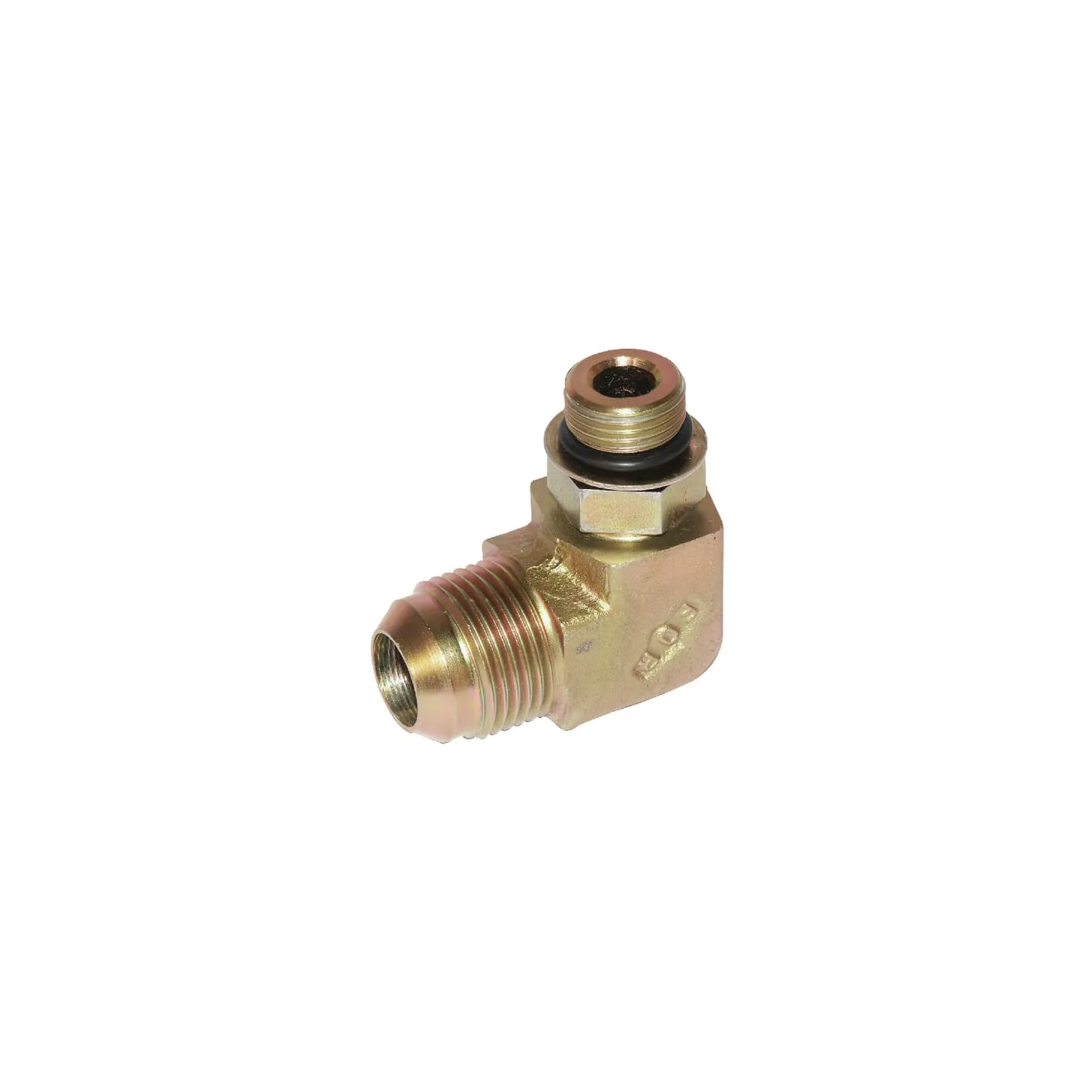

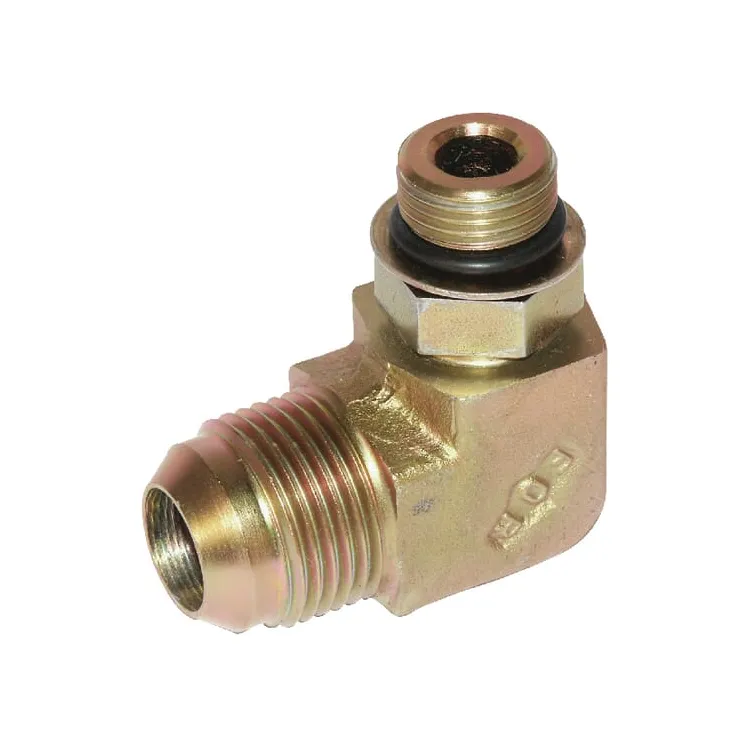

Elkonis 3/4 JIC x 7/8 UNF KIU1214

Name: Elkonis 3/4 JIC x 7/8 UNF KIU1214
Brand: Alfagomma
SKU: KIU1214
Price: 13.25 EUR
Availability: InStock

Apmaksas iespējas

13,25 €

AR PVN

4-5 Darba dienas

Elkonis 3/4 JIC x 7/8 UNF KIU1214 Alfagomma

IR NOLIKTAVĀ

ID: 88755

Apraksts

Part number	KIU1214
EAN
Unit	Each
Product details	UNF cone 37°
Long description	Details: adjustable coupling Technical information: For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	34 mm
Connection 2, thread diameter	7/8 Inch
Connection 2, thread type	UNF
Connection 2, threads per inch	14
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	43 mm
F1Connection no 1 thread diameter	3/4 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	14
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Material	Steel
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
Working pressure	340 BAR
