Elkoņa sakabe 3/4JIC x M18 KIM1218

Name: Elkoņa sakabe 3/4JIC x M18 KIM1218
Brand: Alfagomma
SKU: KIM1218
Price: 16.21 EUR
Availability: InStock

Apmaksas iespējas

16,21 €

AR PVN

4-5 Darba dienas

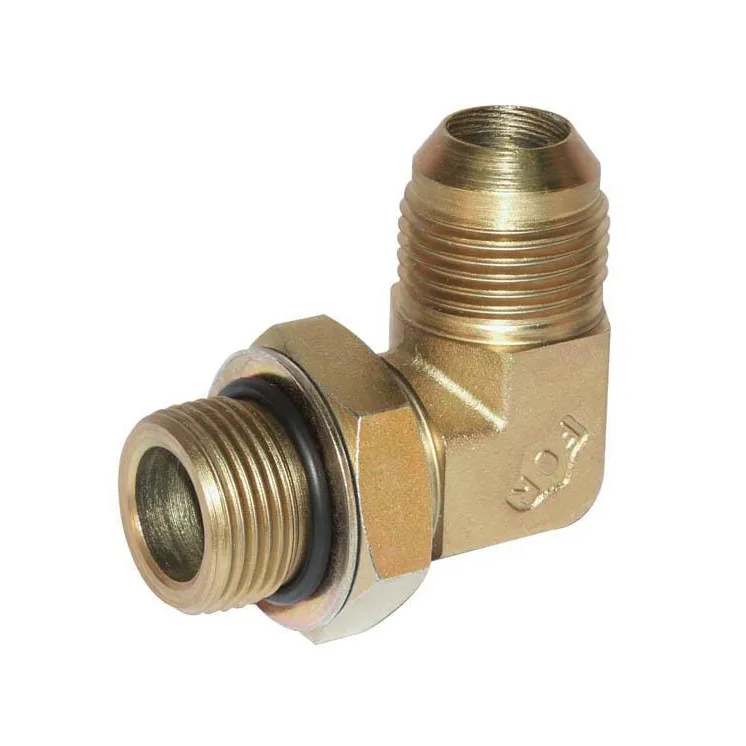

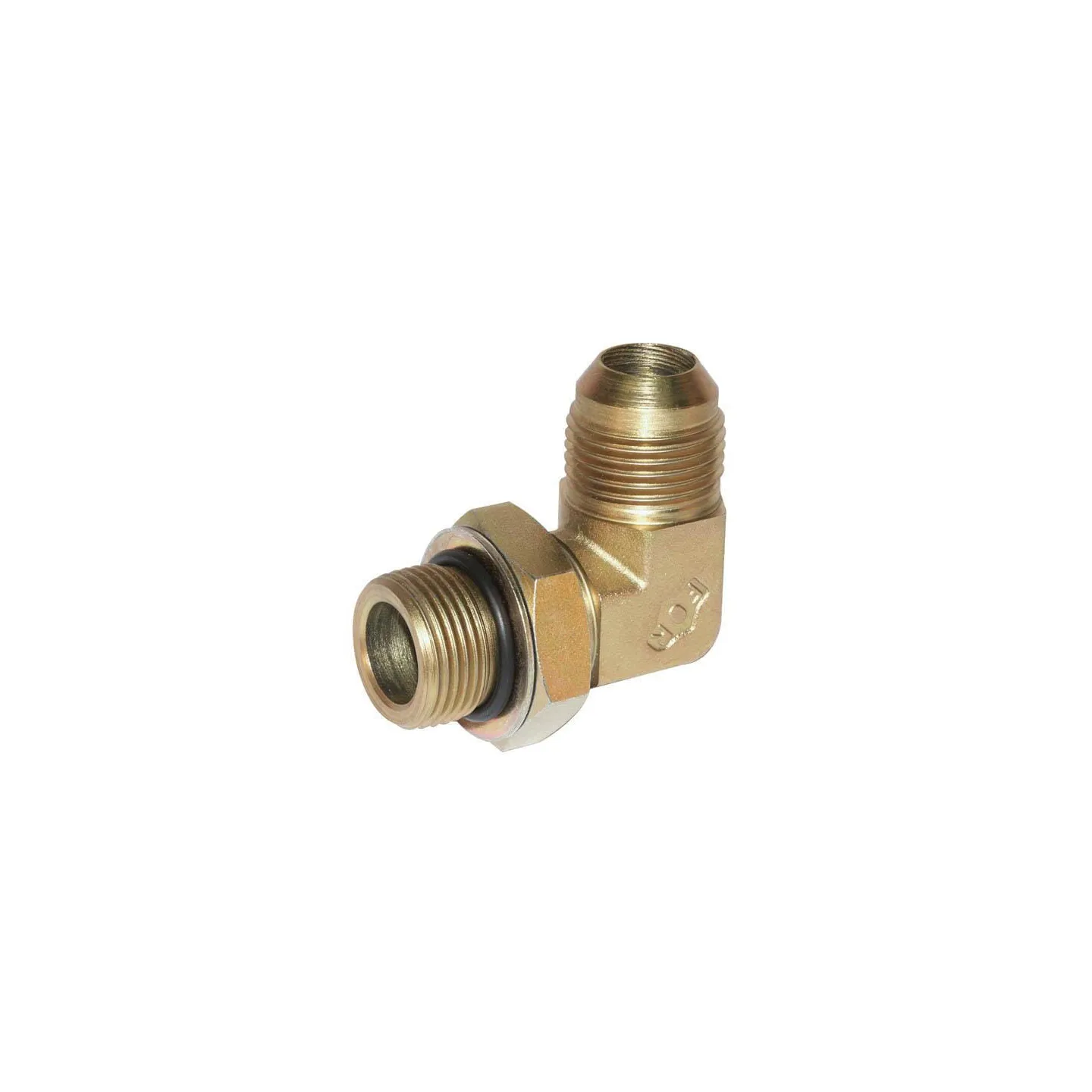

Elkoņa sakabe 3/4JIC x M18 KIM1218 Alfagomma

IR NOLIKTAVĀ

ID: 88756

Apraksts

Part number	KIM1218
EAN
Unit	Each
Product details	For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. - Connection thread on the 37º cone side is UNF in accordance with ANSI
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	31.5 mm
F2Connection 2, thread pitch	1.50 mm
Connection 2, thread diameter	M18
Connection 2, thread type	Metric
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	3/4 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	16
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
L1Connections distance	39.5 mm
Max working pressure	340 BAR
Pipe diameter	12 mm
Pipe diameter	1/2 Inch
Series	12L
Shape	Elbow - 2 connection sides
