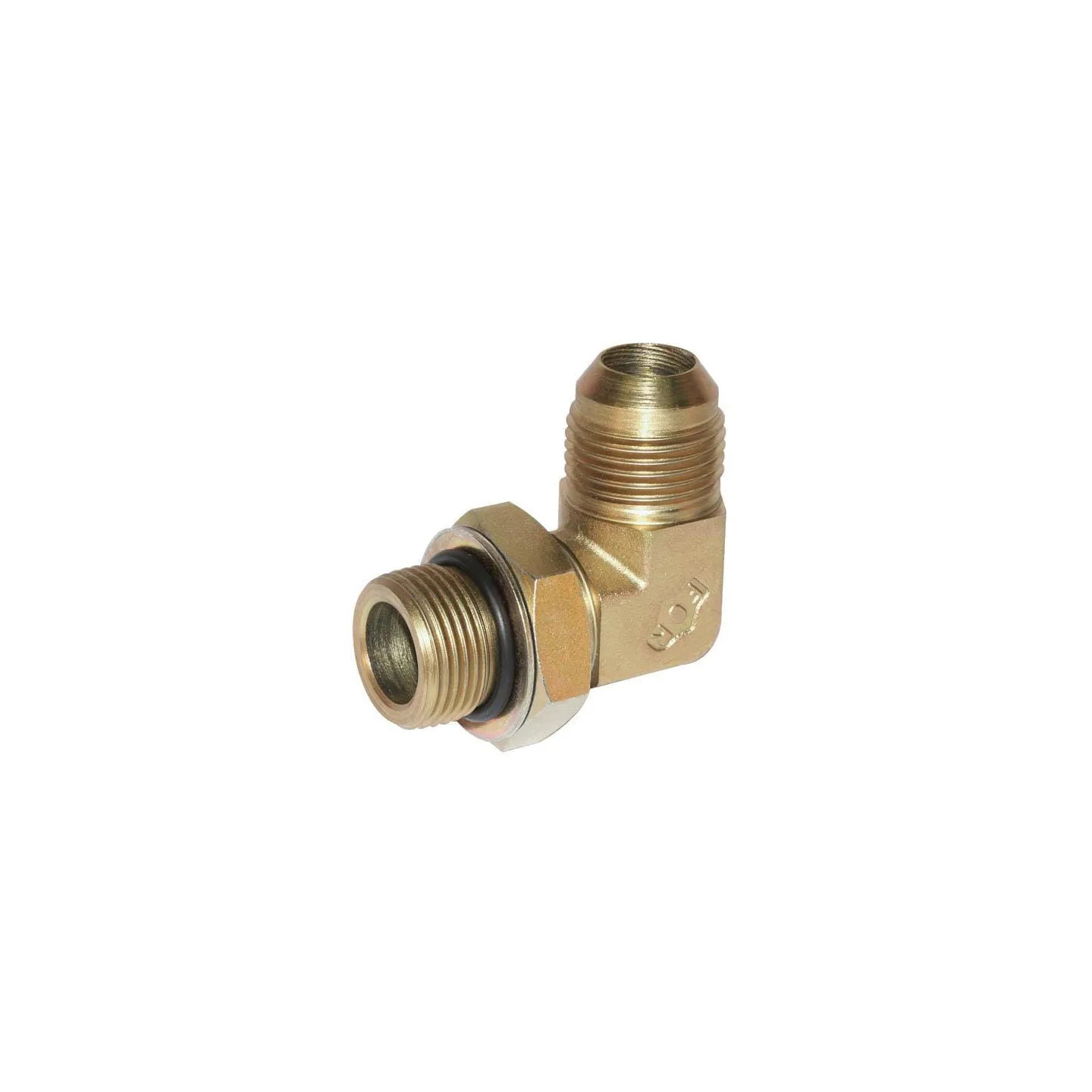

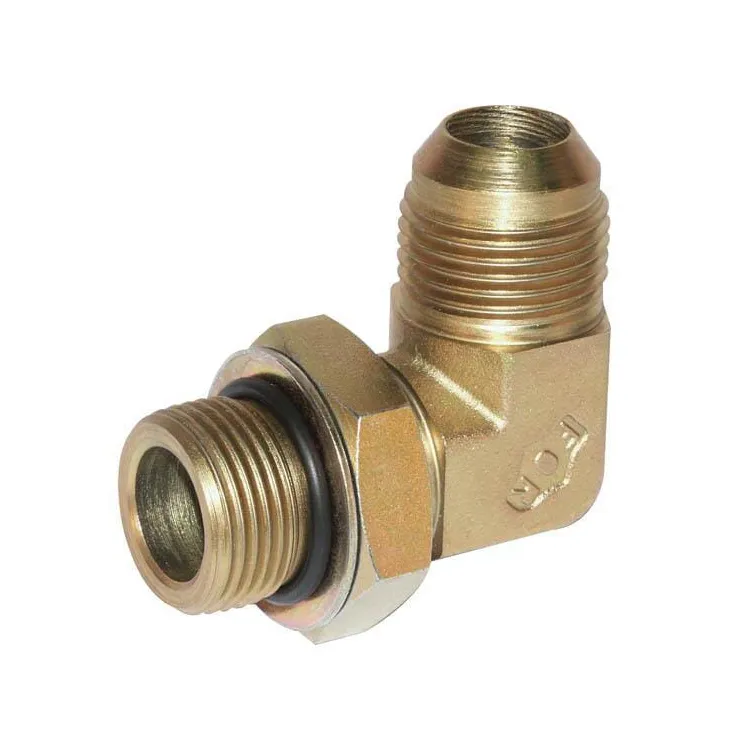

Elkoņa sakabe 7/16 JIC x M12 KIM0712

Name: Elkoņa sakabe 7/16 JIC x M12 KIM0712
Brand: Alfagomma
SKU: KIM0712
Price: 11.8 EUR
Availability: InStock

Apmaksas iespējas

11,80 €

AR PVN

4-5 Darba dienas

Elkoņa sakabe 7/16 JIC x M12 KIM0712 Alfagomma

IR NOLIKTAVĀ

ID: 88757

Apraksts

Part number	KIM0712
EAN
Unit	Each
Product details	For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. - Connection thread on the 37º cone side is UNF in accordance with ANSI
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	27.5 mm
F2Connection 2, thread pitch	1.50 mm
Connection 2, thread diameter	M12
Connection 2, thread type	Metric
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	7/16 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	20
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
L1Connections distance	31.5 mm
Max working pressure	380 BAR
Pipe diameter	6 mm
Pipe diameter	1/4 Inch
Shape	Elbow - 2 connection sides
