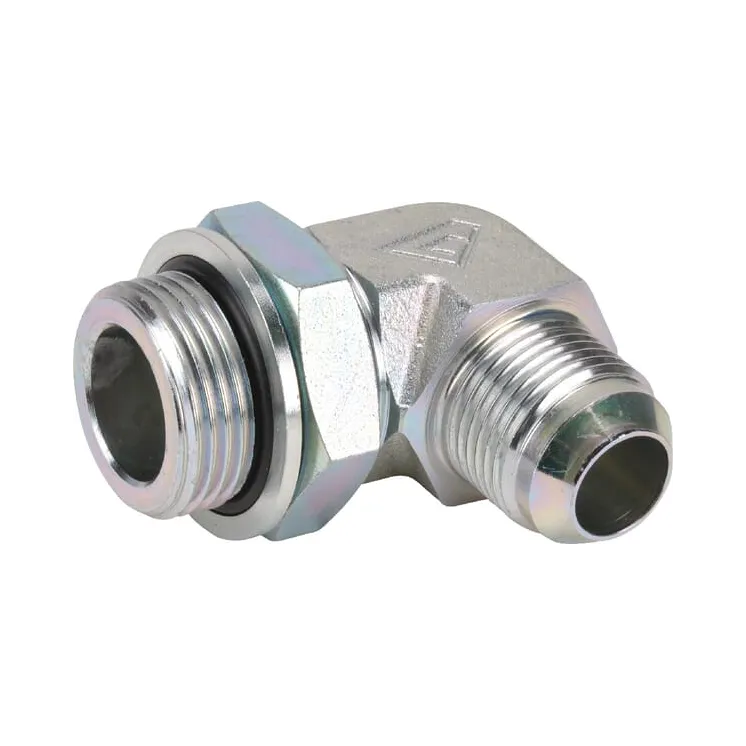

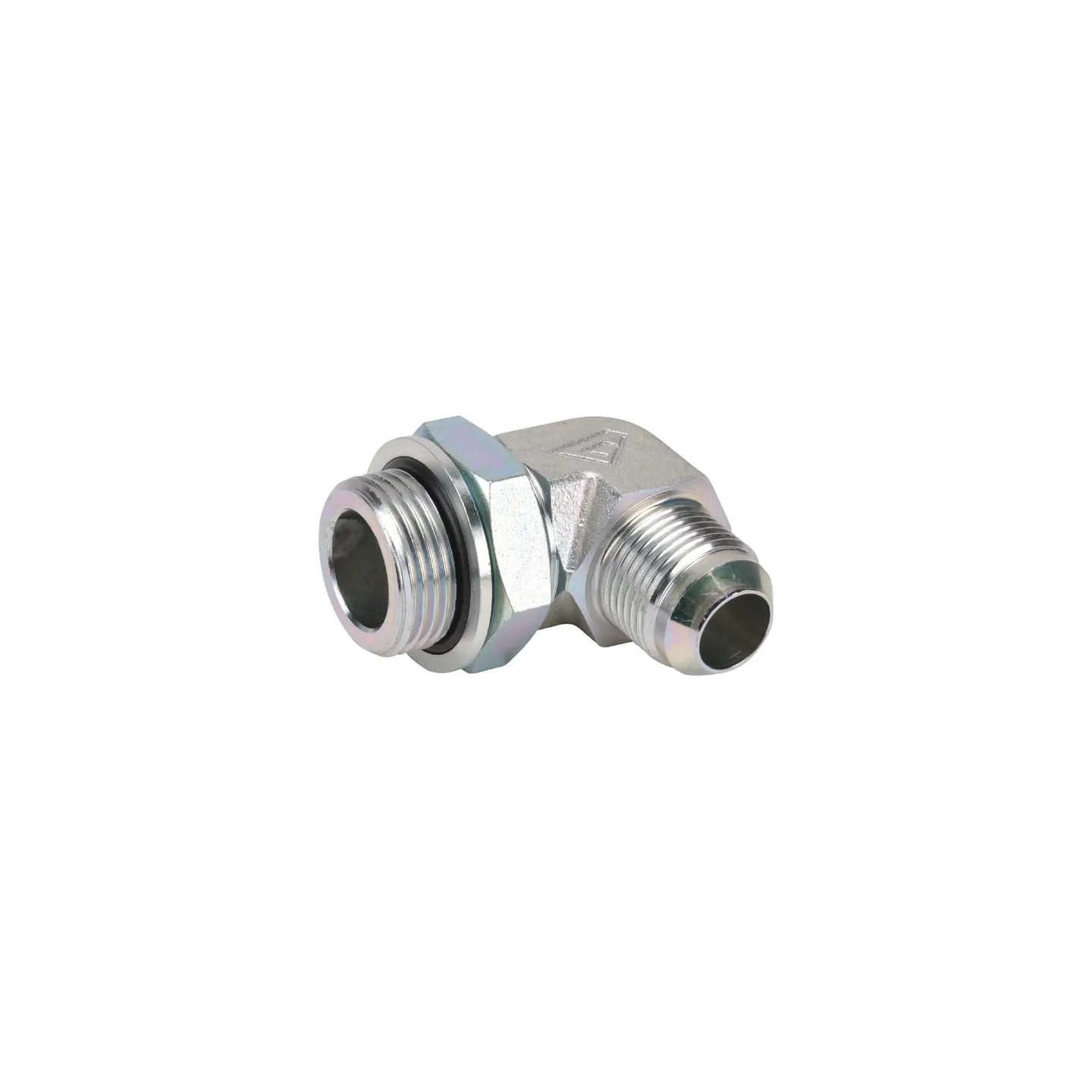

Elkoņa sakabe 9/16 JIC x 1/2 BSP KIB0908

Name: Elkoņa sakabe 9/16 JIC x 1/2 BSP KIB0908
Brand: Alfagomma
SKU: KIB0908
Price: 14.21 EUR
Availability: InStock

Apmaksas iespējas

14,21 €

AR PVN

4-5 Darba dienas

Elkoņa sakabe 9/16 JIC x 1/2 BSP KIB0908 Alfagomma

IR NOLIKTAVĀ

ID: 88758

Apraksts

Part number	KIB0908
EAN
Unit	Each
Technical info	For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Angle	90 °
Cone angle	74 °
F2Connection 2, thread diameter	1/2 Inch
Connection 2, thread type	JIC
Connection 2, threads per inch	18
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	31 mm
F1Connection no 1 thread diameter	9/16 Inch
Connection no 1 thread type	BSP
Connection no 1 threads per inch	14
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
L1Connections distance	43.5 mm
Material	Steel
Max working pressure	380 BAR
Pipe diameter	38 mm
Pipe diameter	3/8 Inch
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
