| Part number | KIOM1114 | |
|---|---|---|
| EAN | ||
| Unit | Each | |

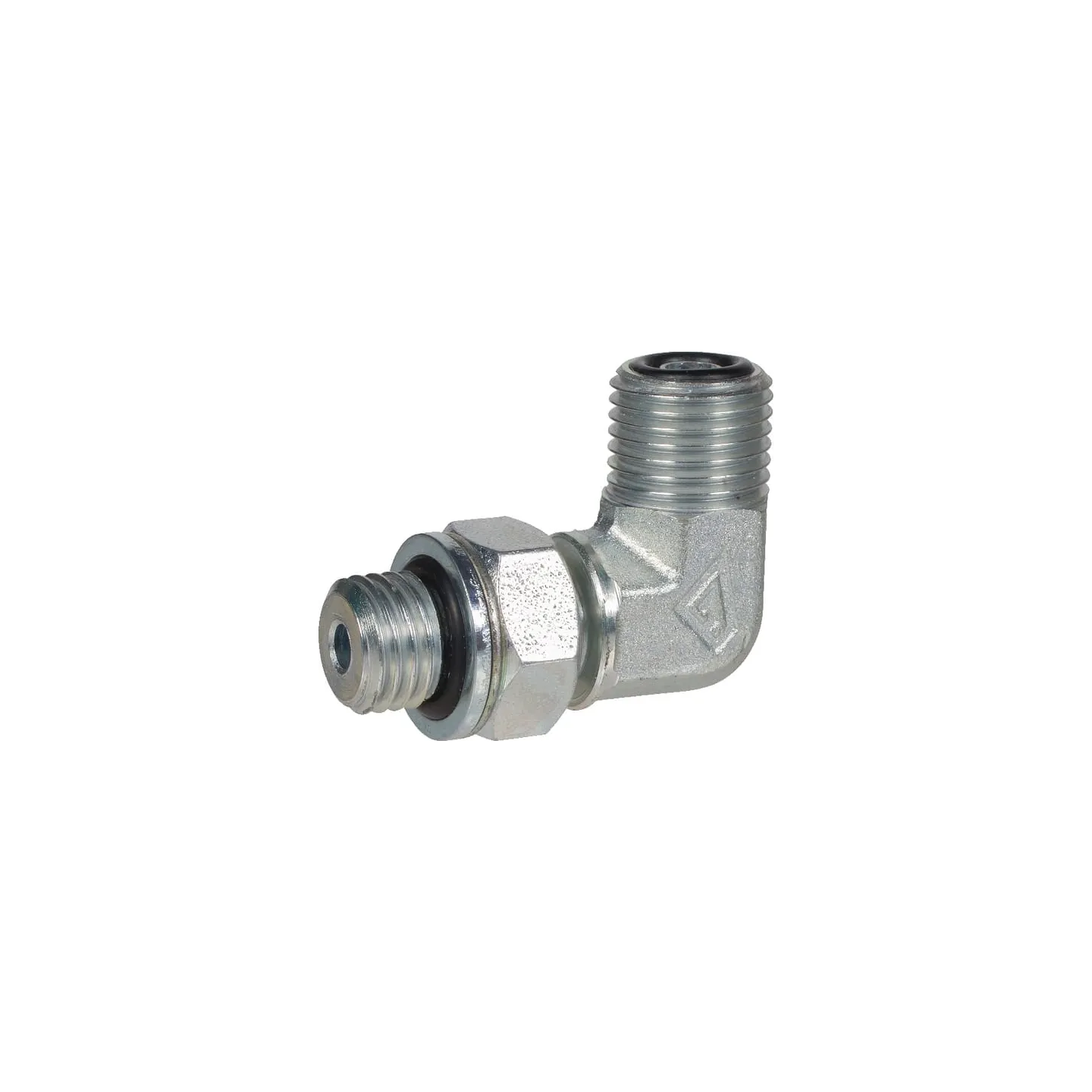

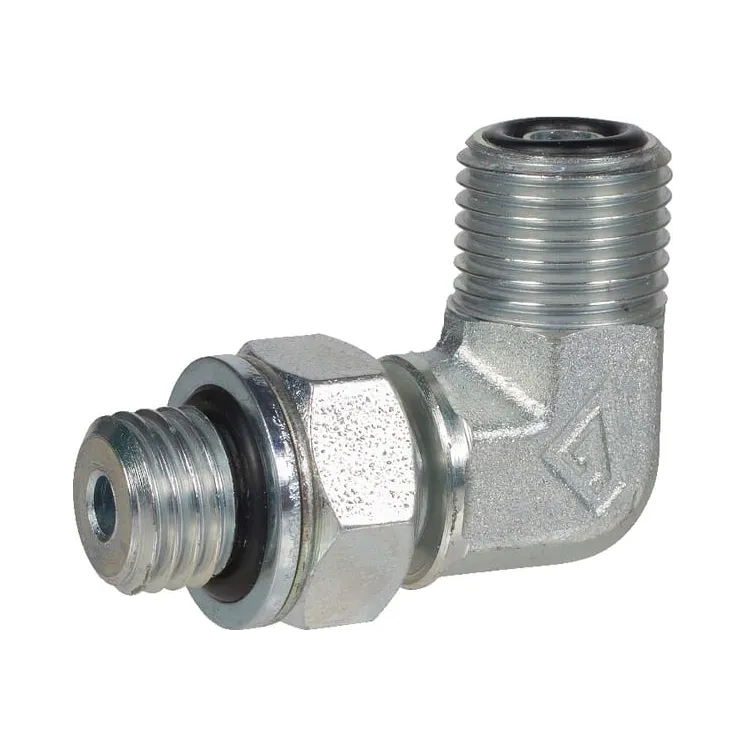

| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. | |
| Pros |
| |
| Product details |
| |
| Angle | 90 ° | |
| L2Connection 2, centre to end distance | 35.5 mm | |
| Connection 2, thread pitch | 1.50 mm | |
| F2Connection 2, thread diameter | M14 | |
| Connection 2, thread type | Metric | |
| Connection 2, type | Thread | |
| Connection 2, type - male/female | Male | |
| CH2Connection 2, wrench size | 19.0 mm | |
| L1Connection no 1 center to end distance | 25 mm | |
| F1Connection no 1 thread diameter | 11/16 Inch | |
| Connection no 1 thread type | ORFS | |
| Connection no 1 threads per inch | 16 | |
| Connection no 1 type - male/female | Male | |
| Connection no 1 type | Thread | |
| CH1Connection no 1 wrench size | 17.0 mm | |
| Material | Steel | |
| Shape | Elbow - 2 connection sides |
