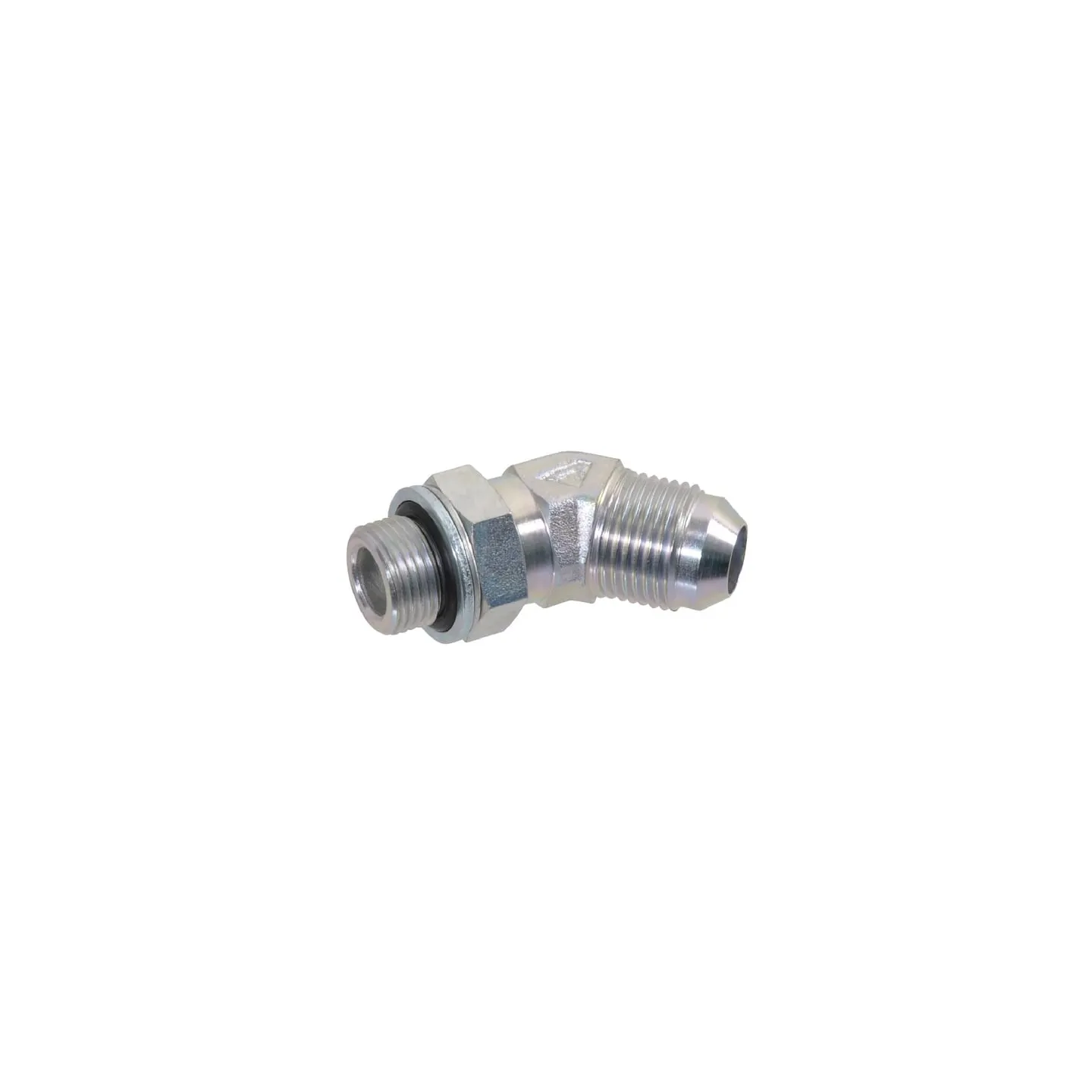

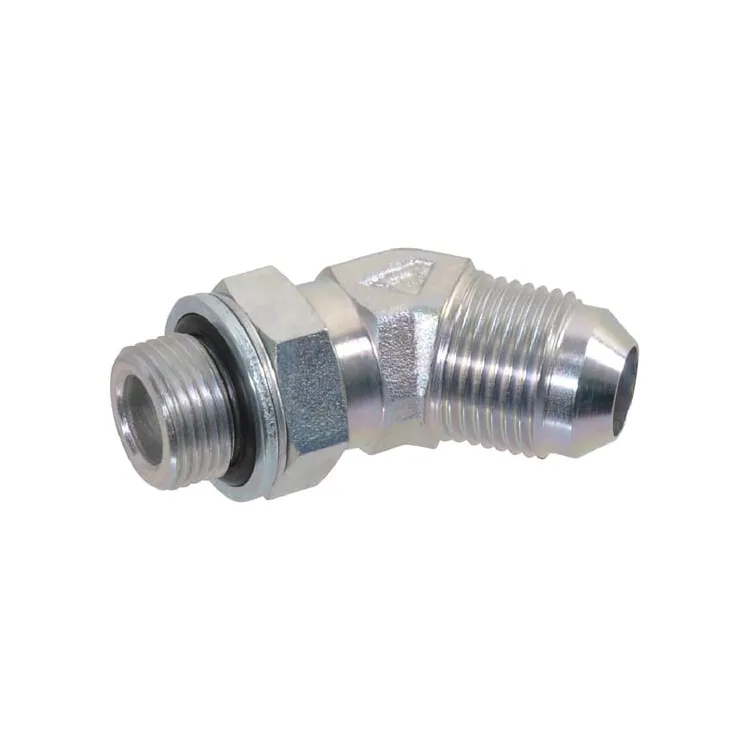

Elkonis 1-1/16 JIC x 3/4 BSP 45° KIB451712

Name: Elkonis 1-1/16 JIC x 3/4 BSP 45° KIB451712
Brand: Alfagomma
SKU: KIB451712
Price: 21.5 EUR
Availability: InStock

Apmaksas iespējas

21,50 €

AR PVN

4-5 Darba dienas

Elkonis 1-1/16 JIC x 3/4 BSP 45° KIB451712 Alfagomma

IR NOLIKTAVĀ

ID: 88760

Apraksts

Part number	KIB451712
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37° cone side is UNF in accordance with ANSI Screw-in couplings Adjustable 45°
Angle	45 °
Connection 2, centre to end distance	31.5 mm
Connection 2, diameter	3/4 Inch
Connection 2, thread diameter	3/4 Inch
Connection 2, threads per inch	14
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	43 mm
F1Connection no 1 thread diameter	1-1/16 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	12
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Max working pressure	280 BAR
Pipe diameter	20 mm
Shape	Elbow - 2 connection sides
