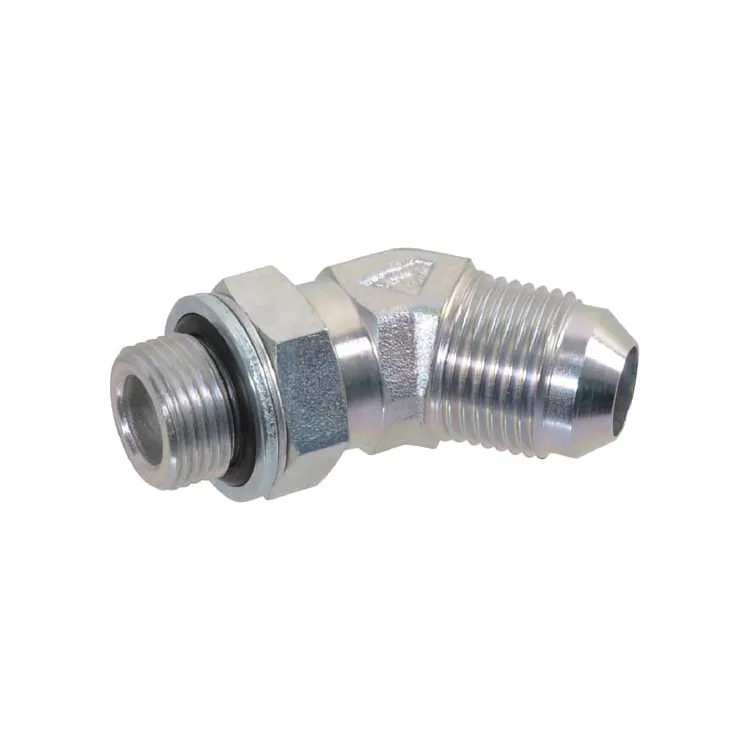

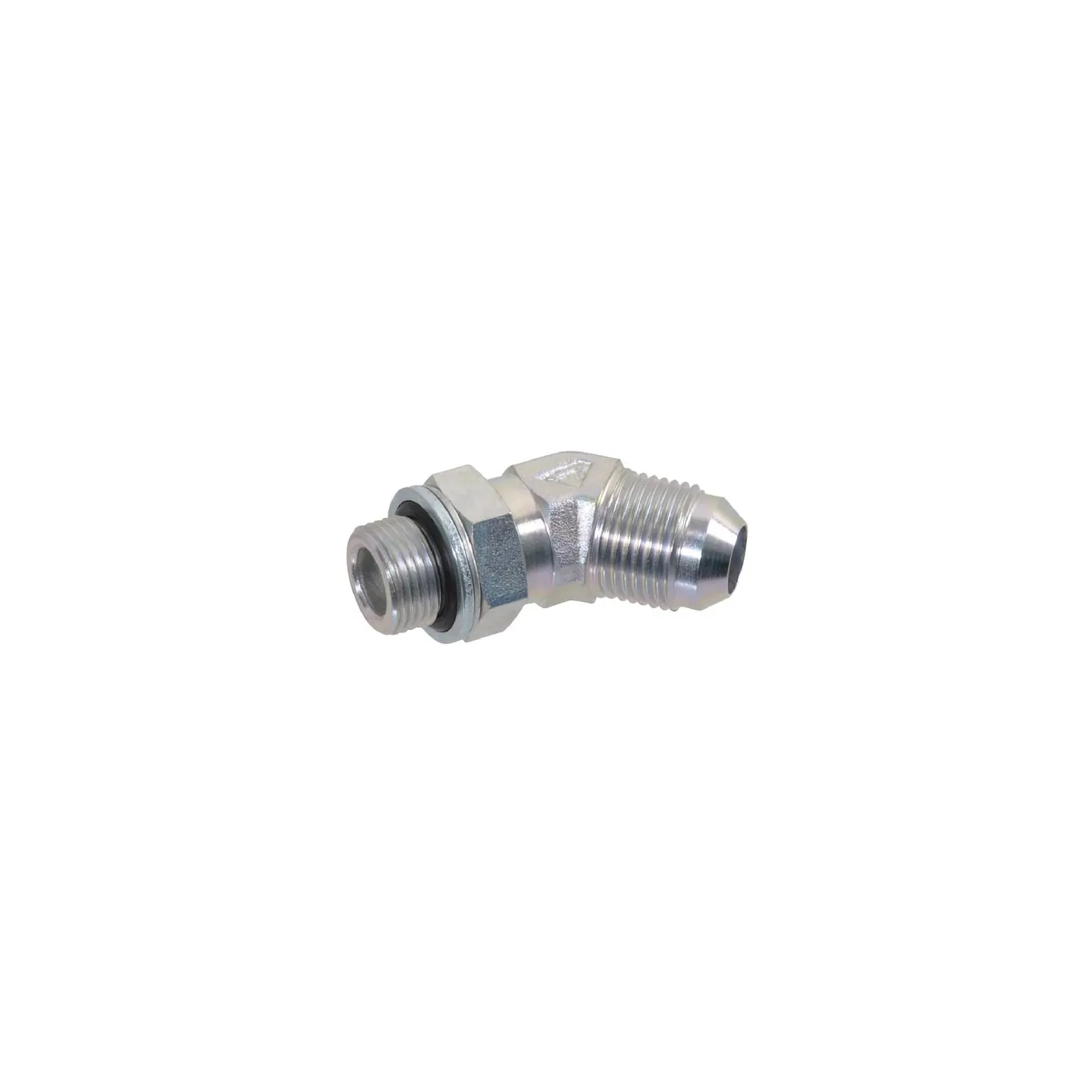

Elkonis 9/16 JIC x 1/4 BSP 45° KIB450904

Name: Elkonis 9/16 JIC x 1/4 BSP 45° KIB450904
Brand: Alfagomma
SKU: KIB450904
Price: 9.73 EUR
Availability: InStock

Apmaksas iespējas

9,73 €

AR PVN

4-5 Darba dienas

Elkonis 9/16 JIC x 1/4 BSP 45° KIB450904 Alfagomma

IR NOLIKTAVĀ

ID: 88761

Apraksts

Part number	KIB450904
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37° cone side is UNF in accordance with ANSI Screw-in couplings Adjustable 45°
Angle	45 °
Connection 2, centre to end distance	21 mm
Connection 2, diameter	1/4 Inch
Connection 2, thread diameter	1/4 Inch
Connection 2, threads per inch	19
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	29 mm
F1Connection no 1 thread diameter	9/16 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	18
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Max working pressure	380 BAR
Pipe diameter	10 mm
Shape	Elbow - 2 connection sides
