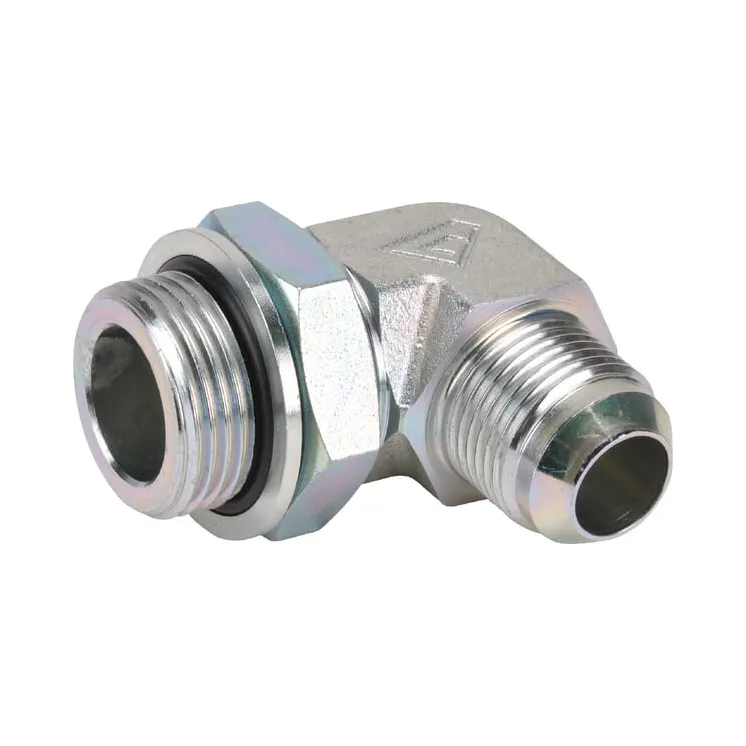

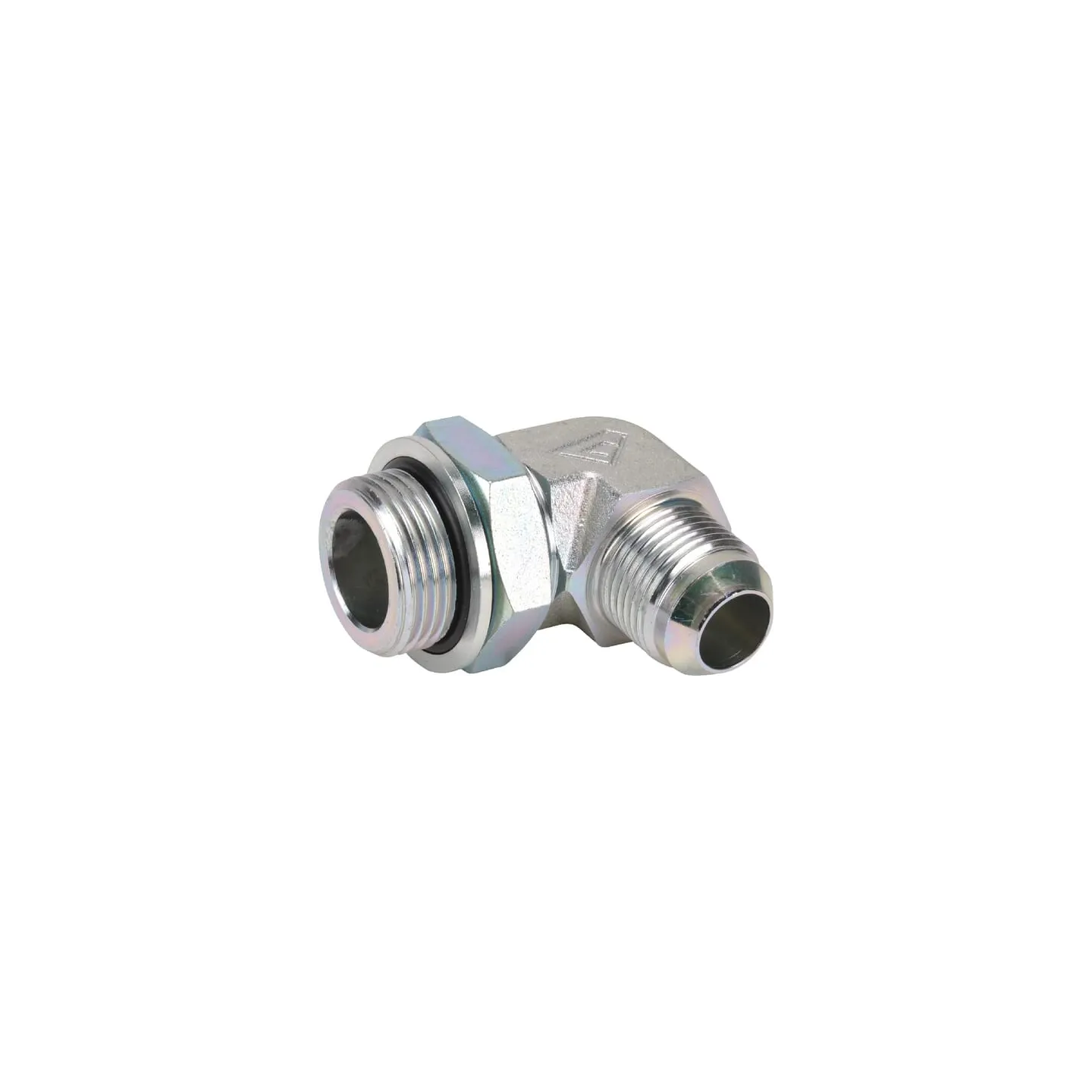

Elkoņa sakabe 7/8 JIC x 1/2 BSP KIB1408

Name: Elkoņa sakabe 7/8 JIC x 1/2 BSP KIB1408
Brand: Alfagomma
SKU: KIB1408
Price: 9.39 EUR
Availability: InStock

Apmaksas iespējas

9,39 €

AR PVN

4-5 Darba dienas

Elkoņa sakabe 7/8 JIC x 1/2 BSP KIB1408 Alfagomma

IR NOLIKTAVĀ

ID: 88765

Apraksts

Part number	KIB1408
EAN
Unit	Each
Technical info	For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	43 mm
F2Connection 2, thread diameter	1/2 Inch
Connection 2, thread type	JIC
Connection 2, threads per inch	14
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	37 mm
F1Connection no 1 thread diameter	7/8 Inch
Connection no 1 thread type	BSP
Connection no 1 threads per inch	14
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Material	Steel
Max working pressure	280 BAR
Pipe diameter	14 mm
Pipe diameter	5/8 Inch
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
