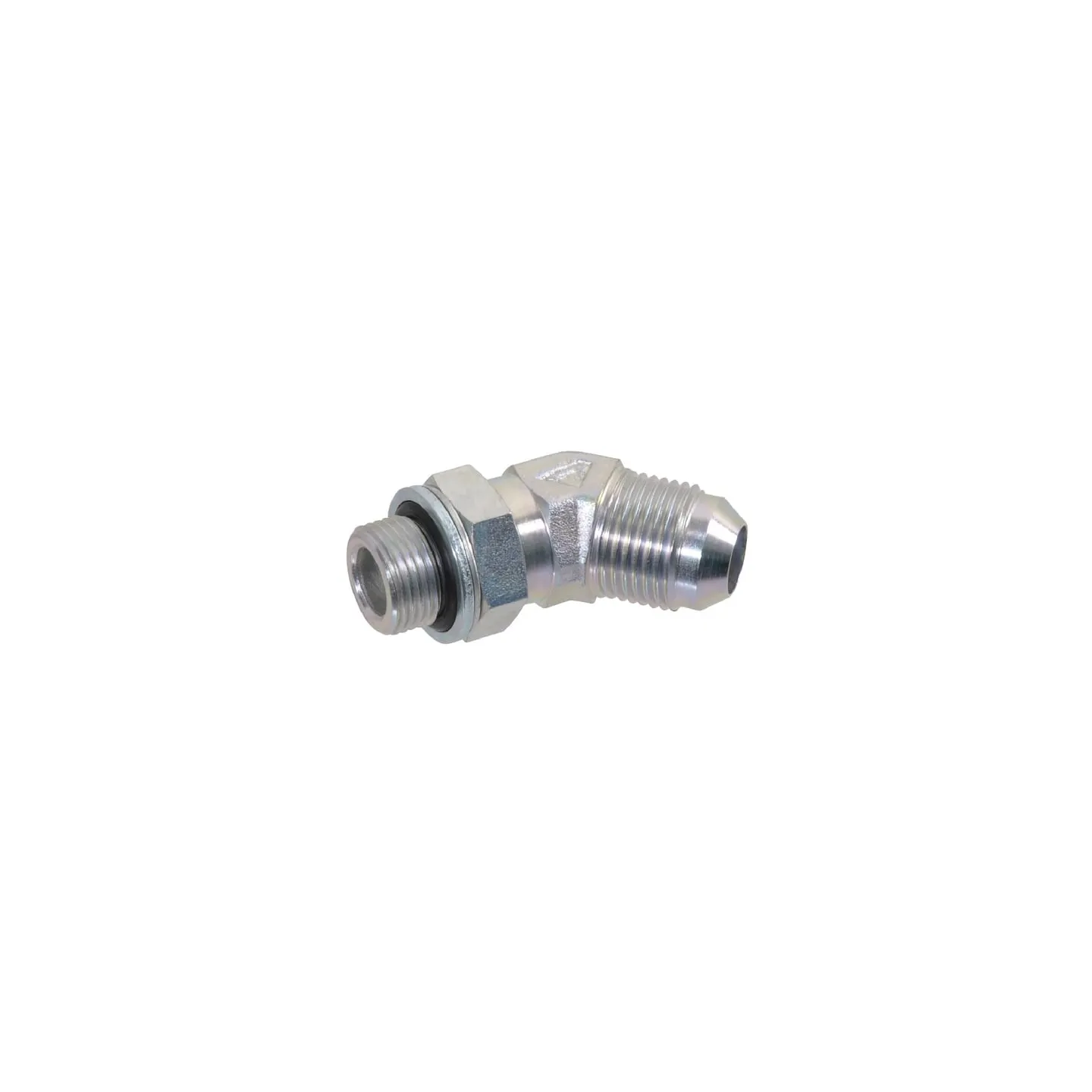

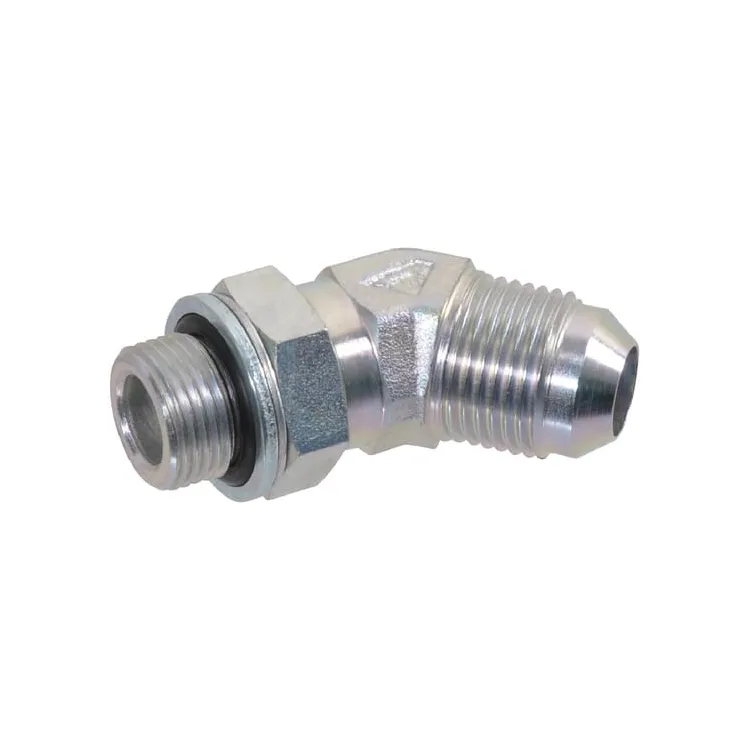

Elkonis 3/4 JIC x 3/8 BSP 45° KIB451206

Name: Elkonis 3/4 JIC x 3/8 BSP 45° KIB451206
Brand: Alfagomma
SKU: KIB451206
Price: 7.05 EUR
Availability: BackOrder

Apmaksas iespējas

7,05 €

AR PVN

Pēc pieprasījuma

Elkonis 3/4 JIC x 3/8 BSP 45° KIB451206 Alfagomma

Uz pasūtījumu

ID: 88773

Apraksts

Part number	KIB451206
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37° cone side is UNF in accordance with ANSI Screw-in couplings Adjustable 45°
Angle	45 °
Connection 2, centre to end distance	25 mm
Connection 2, diameter	3/8 Inch
Connection 2, thread diameter	3/8 Inch
Connection 2, thread type	BSP
Connection 2, threads per inch	19
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	3/4 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	16
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Connections distance	33 mm
Max working pressure	340 BAR
Pipe diameter	12 mm
Pipe diameter	1/2 Inch
Shape	Elbow - 2 connection sides
