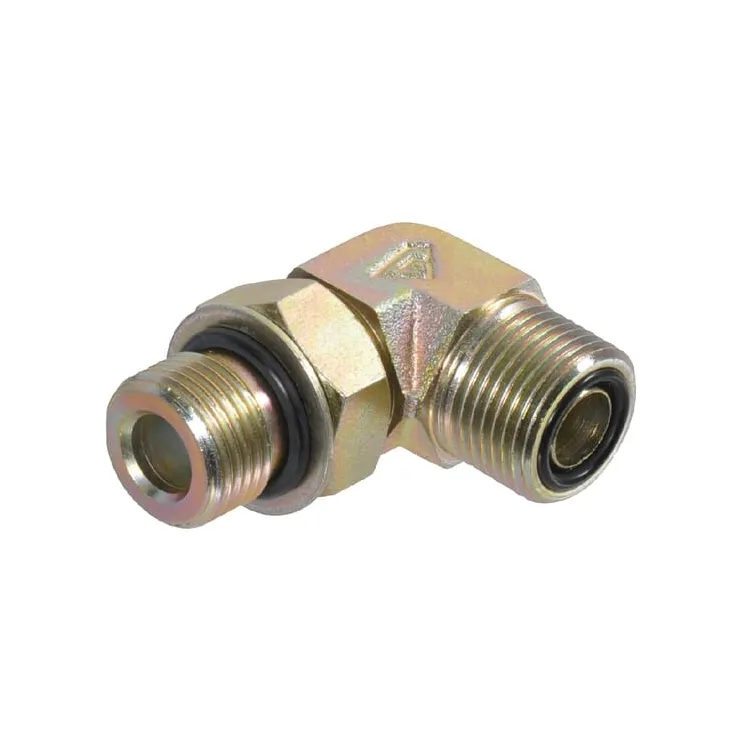

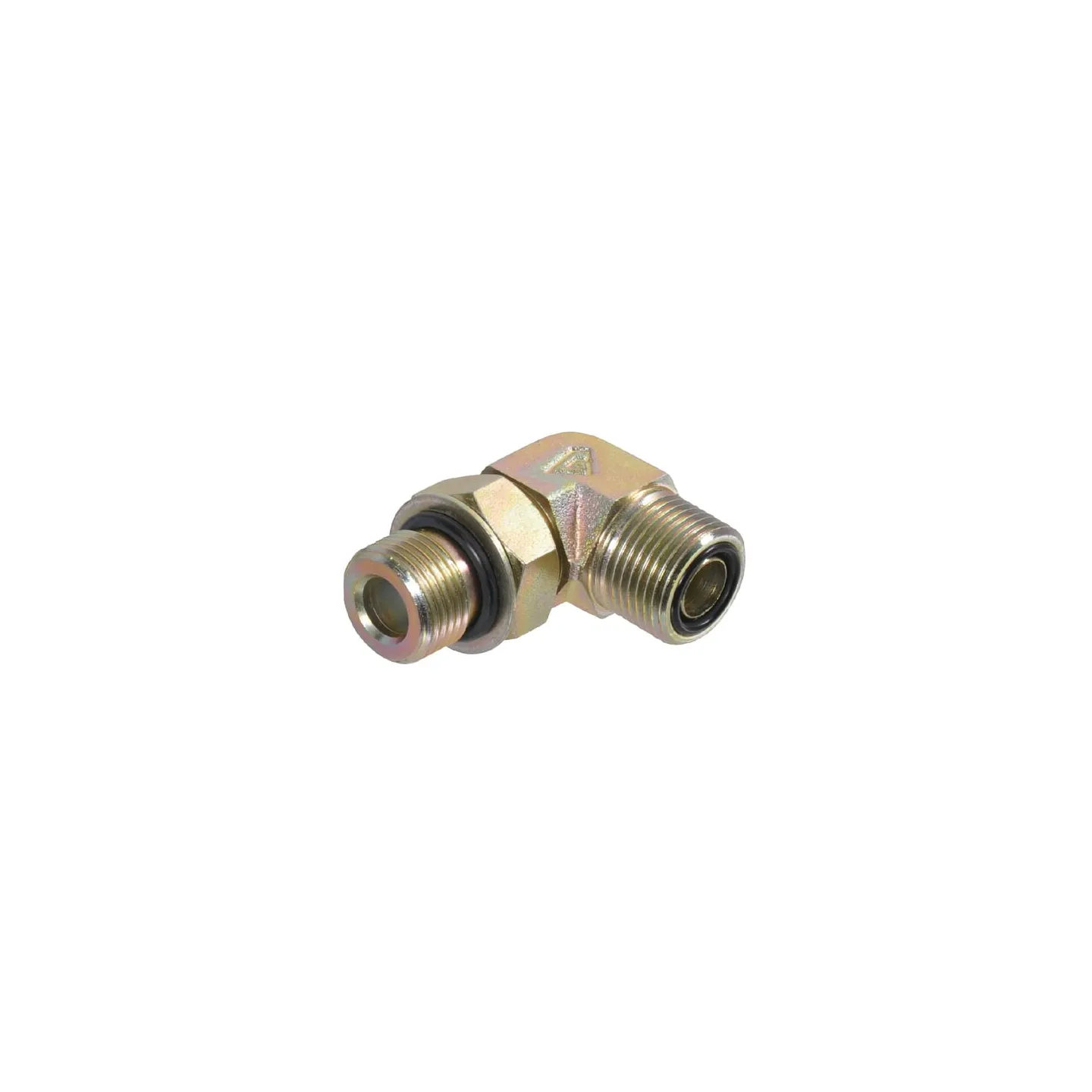

Elkonis 13/16 ORFS x 7/8 UNF KIOU1314

Name: Elkonis 13/16 ORFS x 7/8 UNF KIOU1314
Brand: Alfagomma
SKU: KIOU1314
Price: 13.66 EUR
Availability: BackOrder

Apmaksas iespējas

13,66 €

AR PVN

Pēc pieprasījuma

Elkonis 13/16 ORFS x 7/8 UNF KIOU1314 Alfagomma

Uz pasūtījumu

ID: 88774

Apraksts

Part number	KIOU1314
EAN
Unit	Each
Long description	ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time.
Pros	High tightening torques Reusable
Product details	O-Ring Face Seals O-ring in recess on the connection surface of the nipple Standard : SAE I 1453 Material: Steel Surface treatment: Zinc-plated Viton seal available on request
Angle	90 °
L2Connection 2, centre to end distance	50 mm
F2Connection 2, thread diameter	7/8 Inch
Connection 2, thread type	UNF
Connection 2, threads per inch	14
Connection 2, type	Thread
Connection 2, type - male/female	Male
CH2Connection 2, wrench size	27.0 mm
L1Connection no 1 center to end distance	31 mm
F1Connection no 1 thread diameter	13/16 Inch
Connection no 1 thread type	ORFS
Connection no 1 threads per inch	16
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
CH1Connection no 1 wrench size	22.0 mm
Material	Steel
Shape	Elbow - 2 connection sides
