Elkonis 90° ORFS 13/16 - M18 KIOM1318 KNOM1318

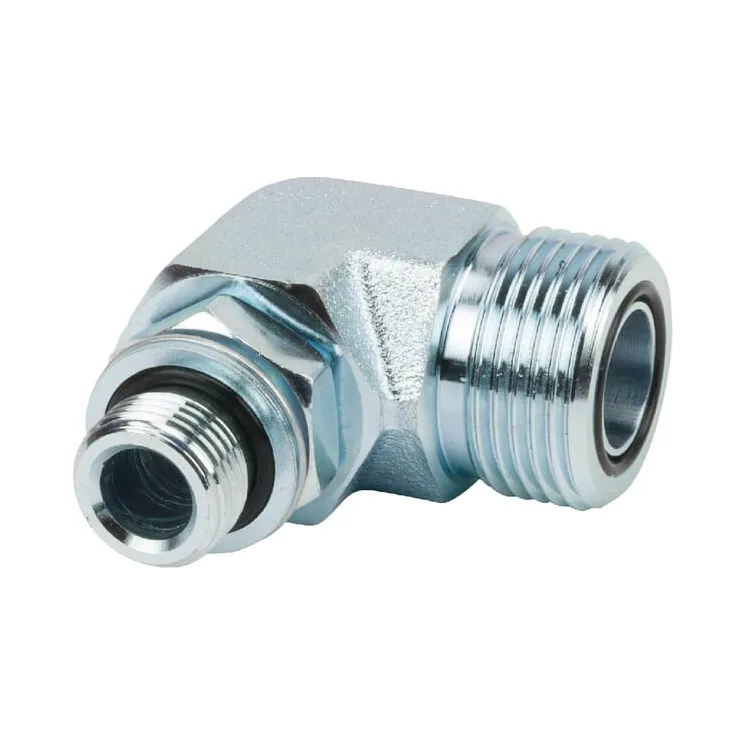

Name: Elkonis 90° ORFS 13/16 - M18 KIOM1318 KNOM1318
Brand: Alfagomma
SKU: KIOM1318
Price: 12.64 EUR
Availability: BackOrder

Apmaksas iespējas

12,64 €

AR PVN

Pēc pieprasījuma

Elkonis 90° ORFS 13/16 - M18 KIOM1318 Alfagomma KNOM1318

Uz pasūtījumu

ID: 88777

Apraksts

Part number	KIOM1318
EAN
Unit	Each
Long description	ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time.
Pros	High tightening torques Reusable
Product details	O-Ring Face Seals O-ring in recess on the connection surface of the nipple Standard : SAE I 1453 Material: Steel Surface treatment: Zinc-plated Viton seal available on request
Angle	90 °
L2Connection 2, centre to end distance	41 mm
Connection 2, thread pitch	1.50 mm
F2Connection 2, thread diameter	M18
Connection 2, thread type	Metric
Connection 2, type	Thread
Connection 2, type - male/female	Male
CH2Connection 2, wrench size	24.0 mm
L1Connection no 1 center to end distance	28 mm
F1Connection no 1 thread diameter	13/16 Inch
Connection no 1 thread type	ORFS
Connection no 1 threads per inch	16
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
CH1Connection no 1 wrench size	19.0 mm
Material	Steel
Shape	Elbow - 2 connection sides
