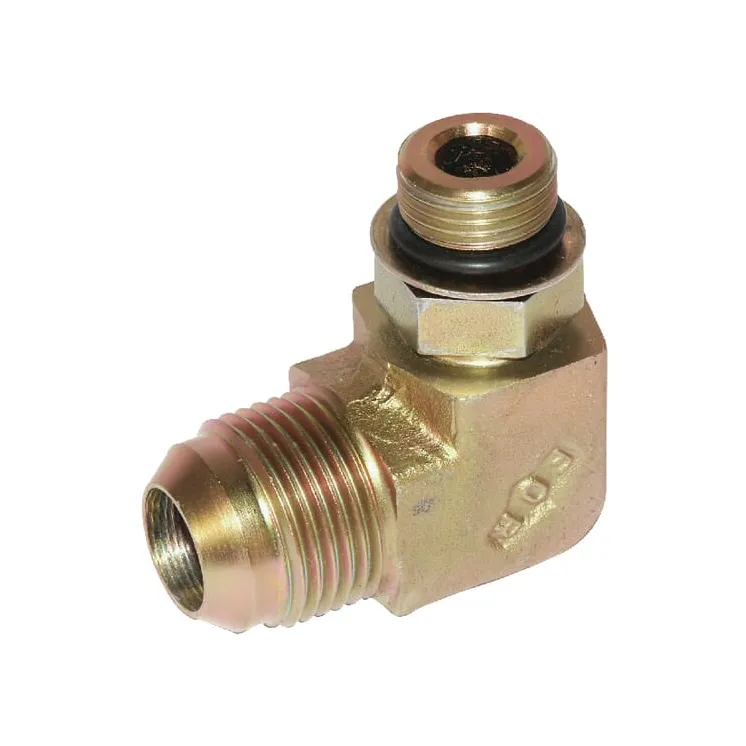

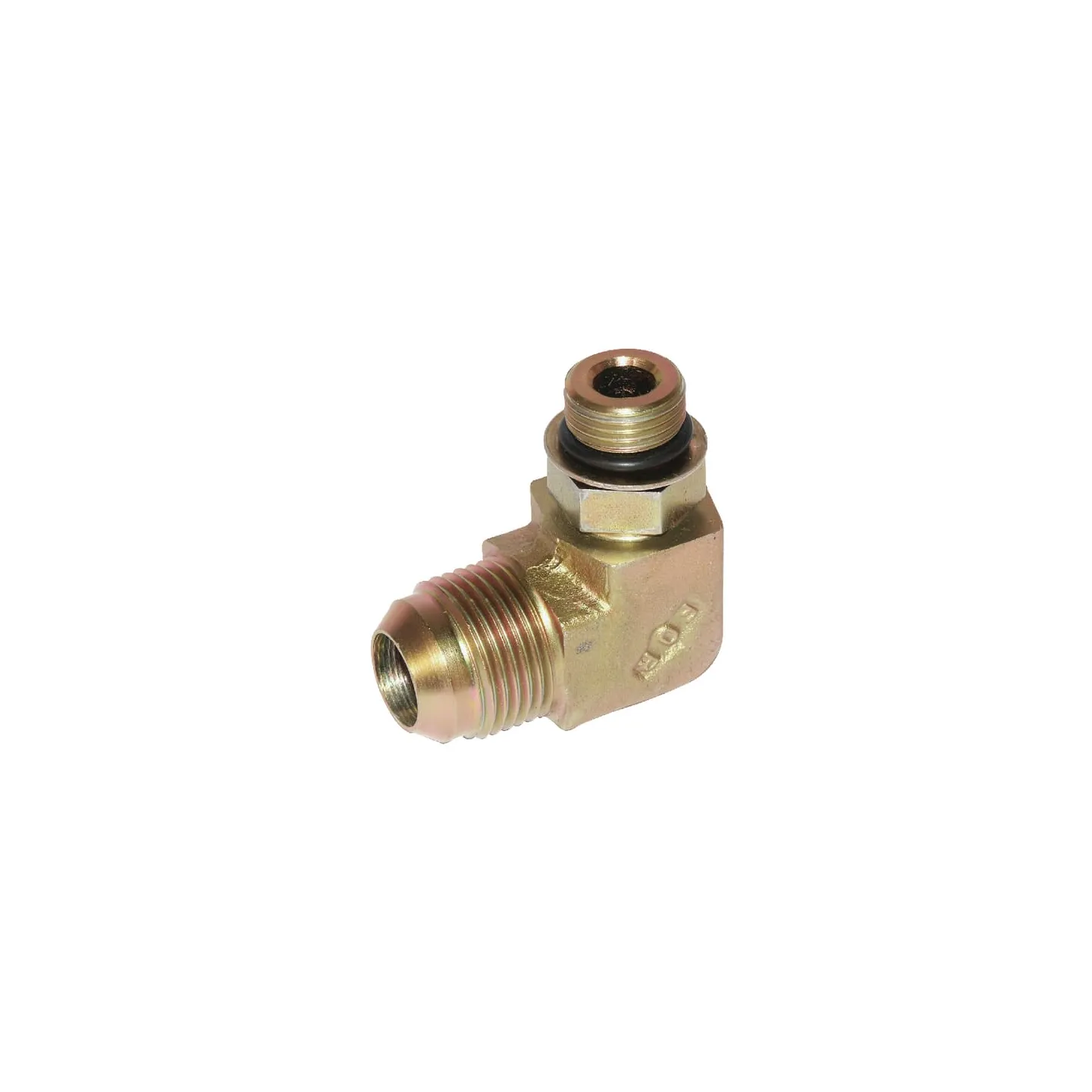

Elkonis 7/16 JIC x 9/16 UNF KIU0709

Name: Elkonis 7/16 JIC x 9/16 UNF KIU0709
Brand: Alfagomma
SKU: KIU0709
Price: 9.78 EUR
Availability: BackOrder

Apmaksas iespējas

9,78 €

AR PVN

Pēc pieprasījuma

Elkonis 7/16 JIC x 9/16 UNF KIU0709 Alfagomma

Uz pasūtījumu

ID: 88780

Apraksts

Part number	KIU0709
EAN
Unit	Each
Product details	UNF cone 37°
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	27 mm
Connection 2, thread diameter	9/16 Inch
Connection 2, thread type	UNF
Connection 2, threads per inch	18
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	31.5 mm
F1Connection no 1 thread diameter	7/16 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	18
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Material	Steel
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
Working pressure	380 BAR
