Elkonis 1.7/16 ORFS x 1BSP KIOB2316 Alfagomma
search
  • Elkonis 1.7/16 ORFS x 1BSP KIOB2316 Alfagomma

Elkonis 1.7/16 ORFS x 1BSP KIOB2316

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
28,57 €
AR PVN
4-5 Darba dienas

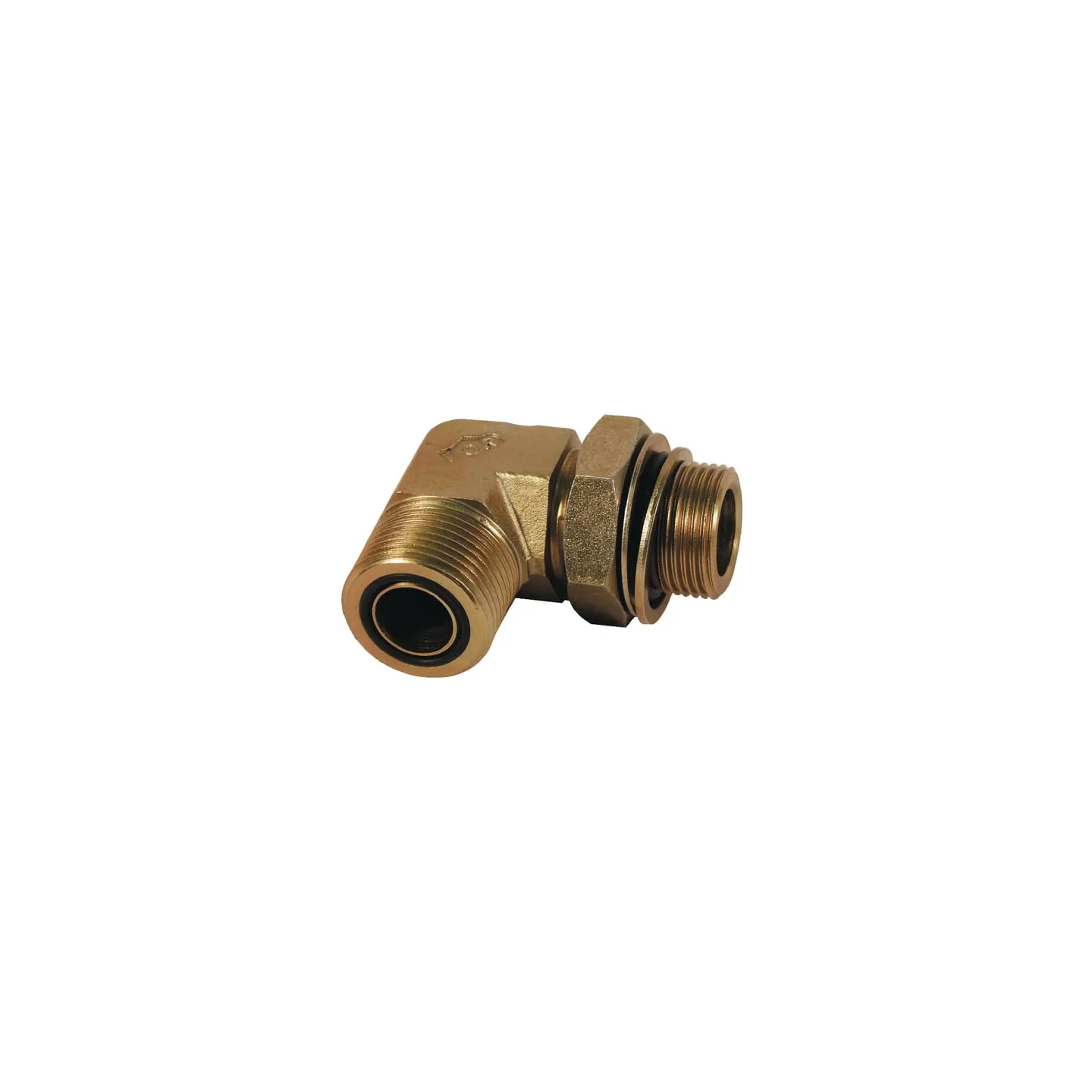

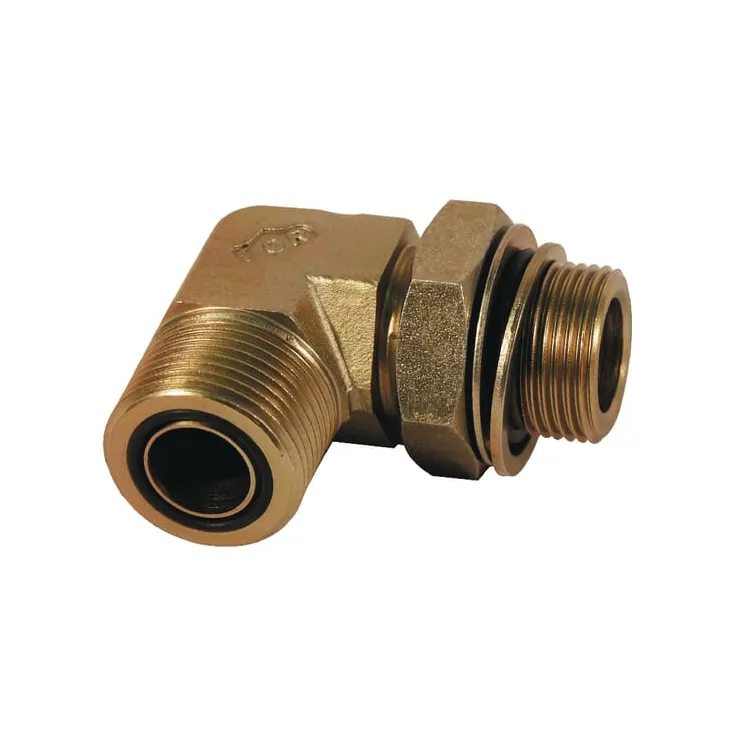

Elkonis 1.7/16 ORFS x 1BSP KIOB2316 Alfagomma
IR NOLIKTAVĀ

88781

  • Zīmols
    Alfagomma
  • Norāde
    KIOB2316
  • Pieejamās vispirms
    2 vienības:
  • Stāvoklis
    Jauns
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
KIOB2316
EAN
Unit
Each
Long description
ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time.
Pros
  • High tightening torque
  • Reusable
Product details
  • O-Ring Face Seals
  • O-ring in recess on the connection surface of the nipple
  • Standard : SAE I 1453
  • Material: Steel
  • Surface treatment : Zinc-plated
  • Viton seal available on request
Angle
90 °
L2Connection 2, centre to end distance
42 mm
F2Connection 2, thread diameter
1 Inch
Connection 2, thread type
BSP
Connection 2, threads per inch
11
Connection 2, type
Thread
Connection 2, type - male/female
Male
CH2Connection 2, wrench size
41.0 mm
L1Connection no 1 center to end distance
63 mm
F1Connection no 1 thread diameter
1-7/16 Inch
Connection no 1 thread type
ORFS
Connection no 1 threads per inch
12
Connection no 1 type - male/female
Male
Connection no 1 type
Thread
CH1Connection no 1 wrench size
36.0 mm
Outside diameter
1 Inch
Material
Steel
Shape
Elbow - 2 connection sides
Surface treatment
Galvanised
Working pressure
250 BAR
