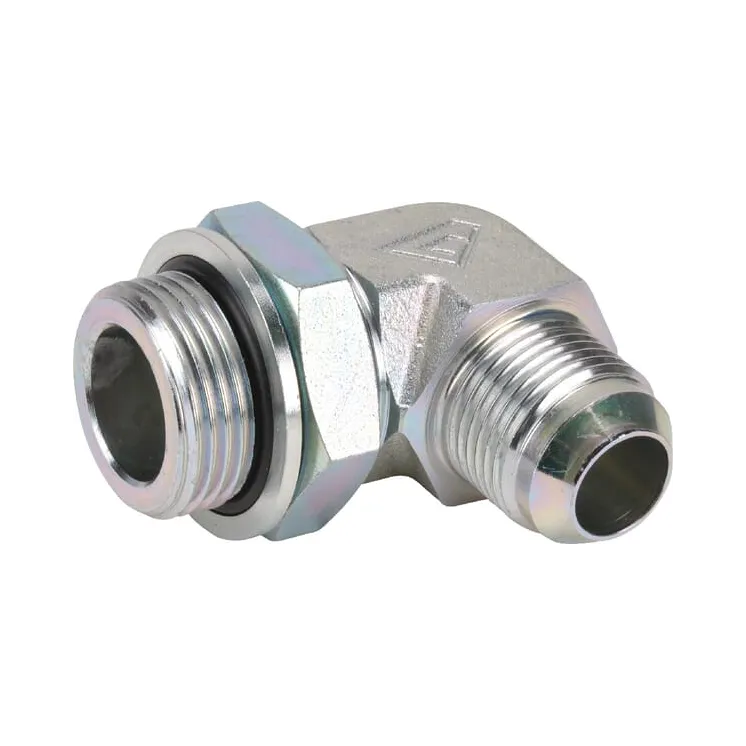

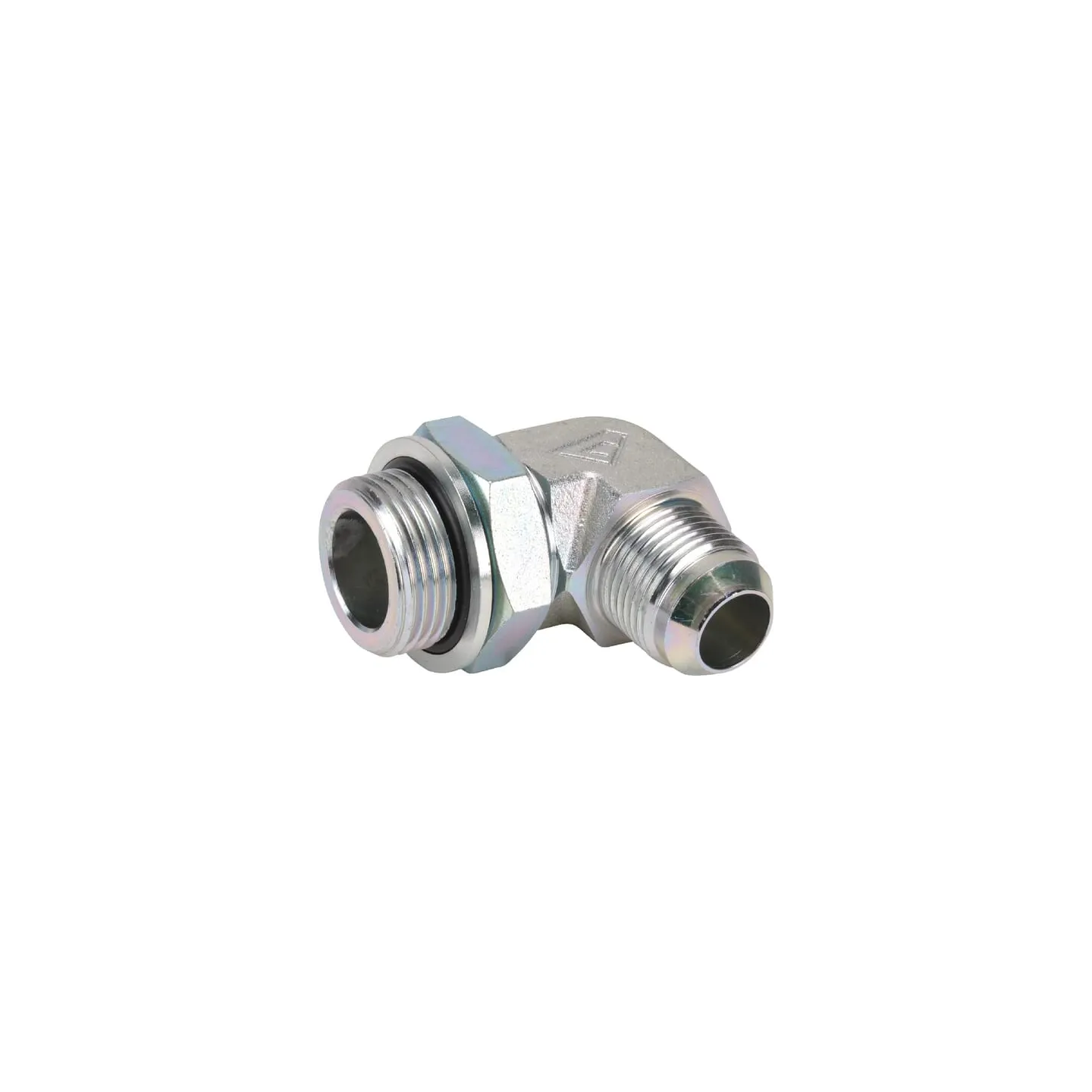

Elkoņa sakabe 7/16 JIC x 1/4 BSP KIB0704

Name: Elkoņa sakabe 7/16 JIC x 1/4 BSP KIB0704
Brand: Alfagomma
SKU: KIB0704
Price: 9.7 EUR
Availability: BackOrder

Apmaksas iespējas

9,70 €

AR PVN

Pēc pieprasījuma

Elkoņa sakabe 7/16 JIC x 1/4 BSP KIB0704 Alfagomma

Uz pasūtījumu

ID: 88792

Apraksts

Part number	KIB0704
EAN
Unit	Each
Technical info	For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	32 mm
F2Connection 2, thread diameter	1/4 Inch
Connection 2, thread type	JIC
Connection 2, threads per inch	20
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	26 mm
F1Connection no 1 thread diameter	7/16 Inch
Connection no 1 thread type	BSP
Connection no 1 threads per inch	19
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Material	Steel
Max working pressure	380 BAR
Pipe diameter	14 mm
Pipe diameter	1/4 Inch
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
