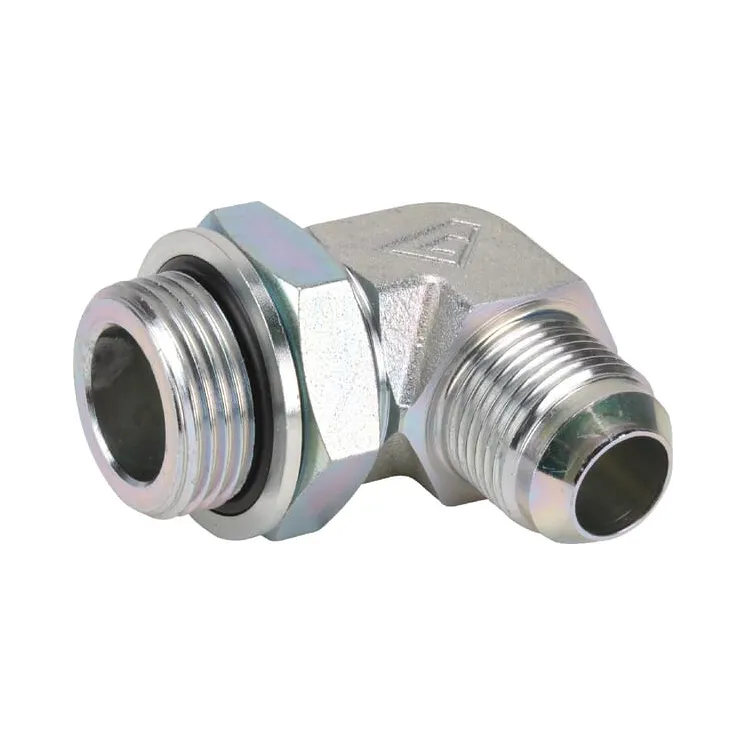

Elkoņa sakabe 3/4 JIC x 3/4 BSP KIB1212

Name: Elkoņa sakabe 3/4 JIC x 3/4 BSP KIB1212
Brand: Alfagomma
SKU: KIB1212
Price: 13.12 EUR
Availability: InStock

Apmaksas iespējas

13,12 €

AR PVN

4-5 Darba dienas

Elkoņa sakabe 3/4 JIC x 3/4 BSP KIB1212 Alfagomma

IR NOLIKTAVĀ

ID: 88793

Apraksts

Part number	KIB1212
EAN
Unit	Each
Technical info	For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Angle	90 °
Cone angle	74 °
F2Connection 2, thread diameter	3/4 Inch
Connection 2, thread type	JIC
Connection 2, threads per inch	16
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	37 mm
F1Connection no 1 thread diameter	3/4 Inch
Connection no 1 thread type	BSP
Connection no 1 threads per inch	14
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
L1Connections distance	49 mm
Material	Steel
Max working pressure	340 BAR
Pipe diameter	12 mm
Pipe diameter	1/2 Inch
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
