• Elkoņa savienojums 9/16JIC x 3/8BSPT KIBT0906 Alfagomma

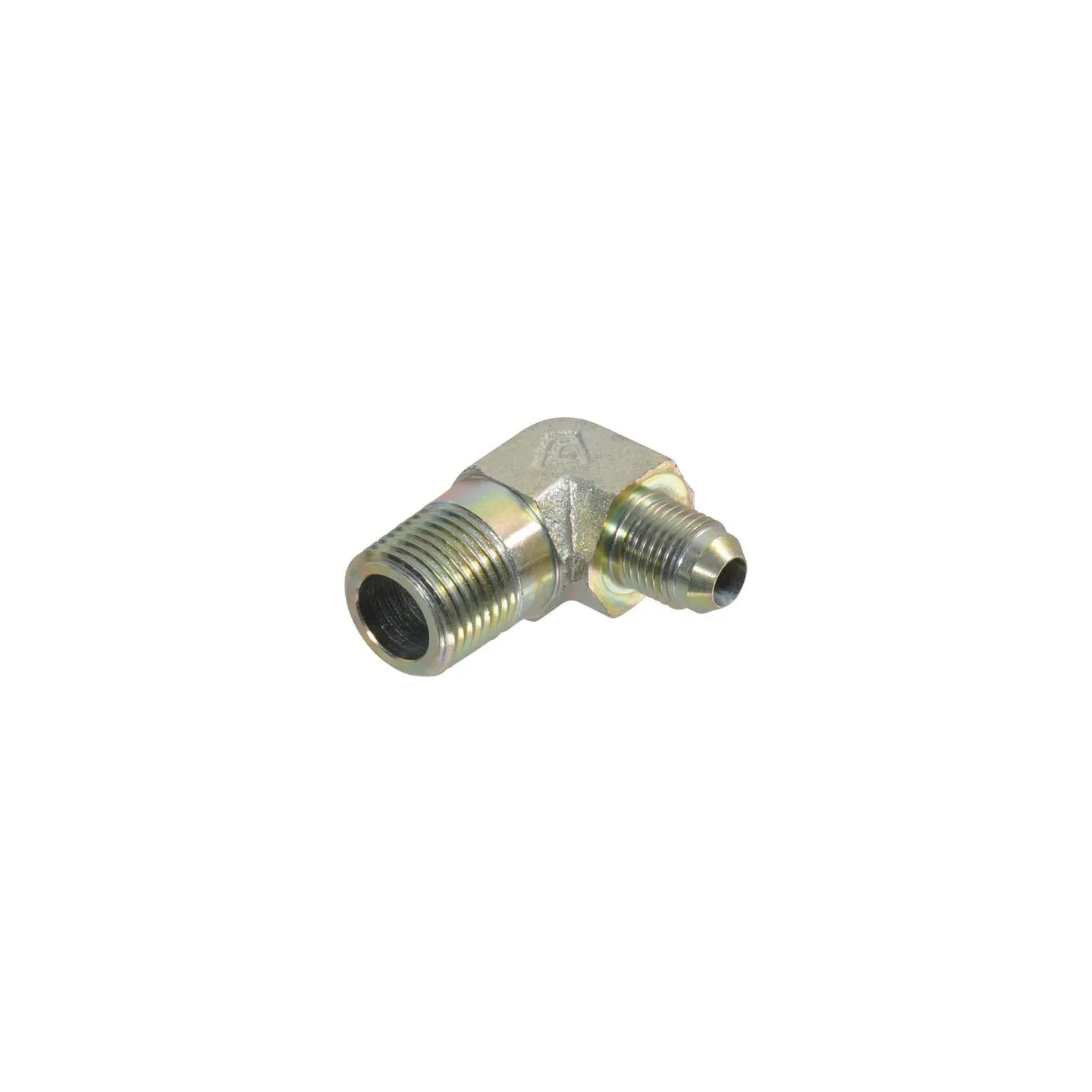

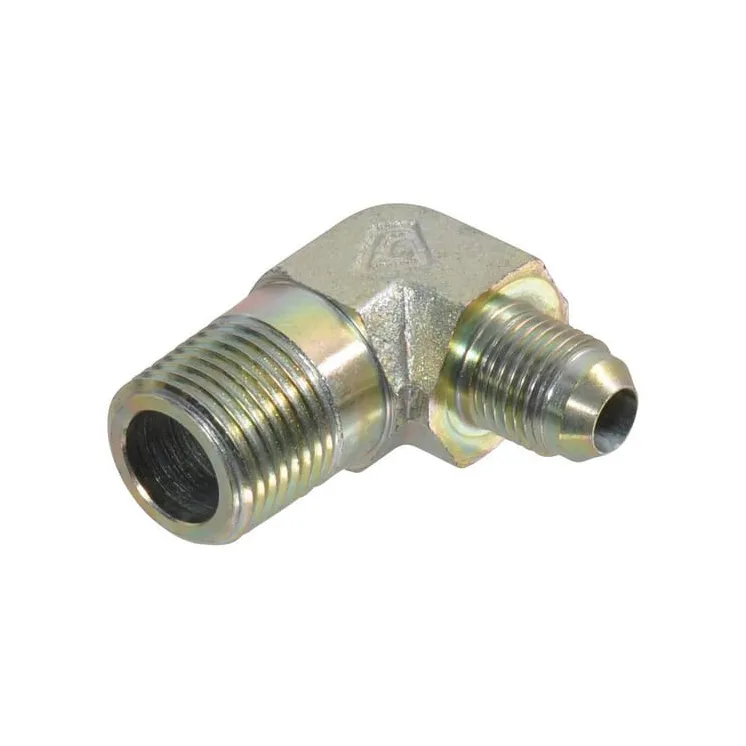

Elkoņa savienojums 9/16JIC x 3/8BSPT KIBT0906

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
6,09 €
AR PVN
4-5 Darba dienas
Elkoņa savienojums 9/16JIC x 3/8BSPT KIBT0906 Alfagomma
IR NOLIKTAVĀ

88794

Part number
KIBT0906
EAN
Unit
Each
Product details
For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Angle
90 °
Cone angle
74 °
L1Connection 2, centre to end distance
31 mm
F2Connection 2, thread diameter
3/8 Inch
Connection 2, thread type
BSPT
Connection 2, type
Thread
Connection 2, type - male/female
Male
F1Connection no 1 thread diameter
9/16 Inch
Connection no 1 thread type
JIC
Connection no 1 type - male/female
Male
Connection no 1 type
Thread
L2Connections distance
31 mm
Material
Steel
Max working pressure
380 BAR
Pipe diameter
32 mm
Pipe diameter
3/8 Inch
Shape
Elbow - 2 connection sides
Surface treatment
Galvanised
  • Zīmols
  • Norāde
    KIBT0906
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
