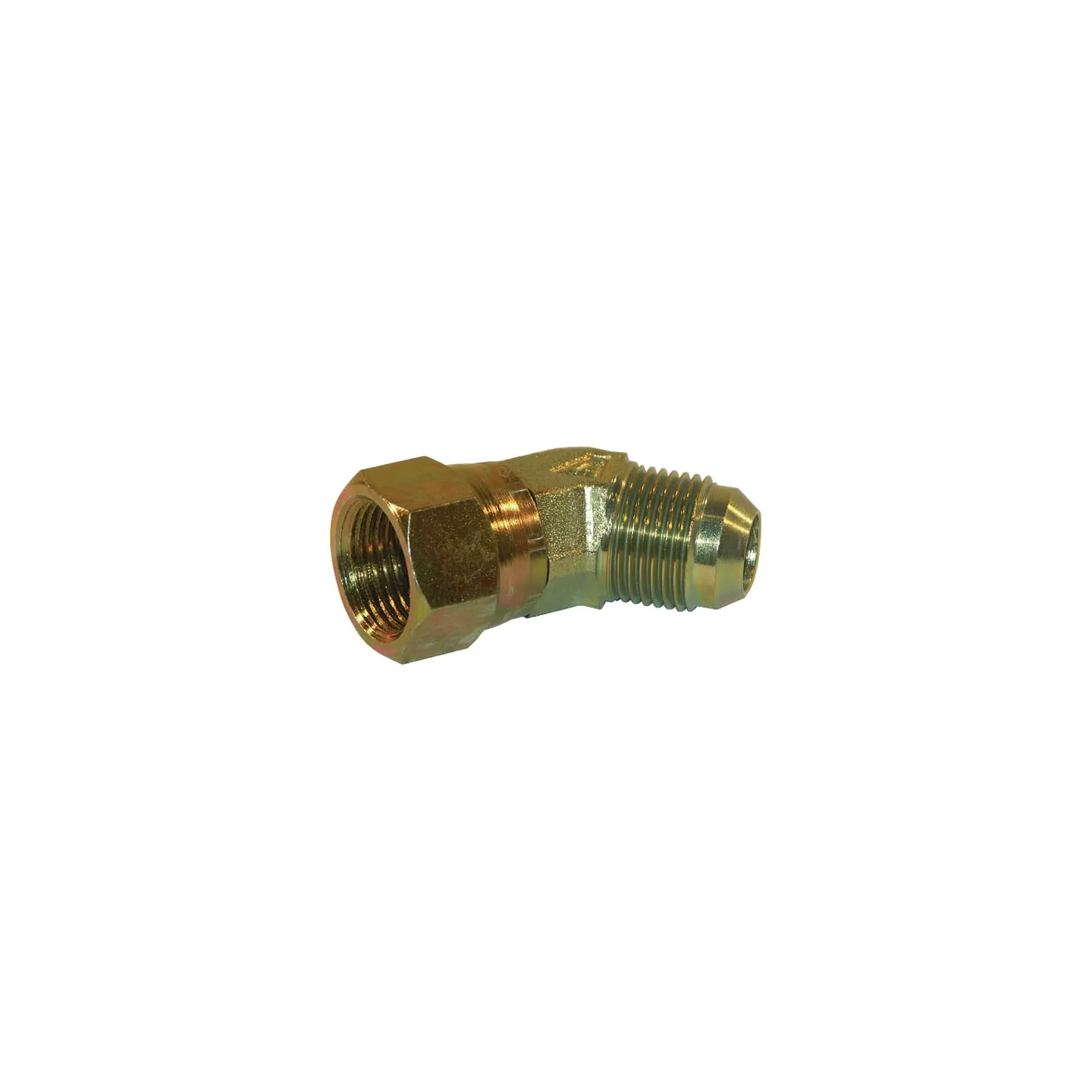

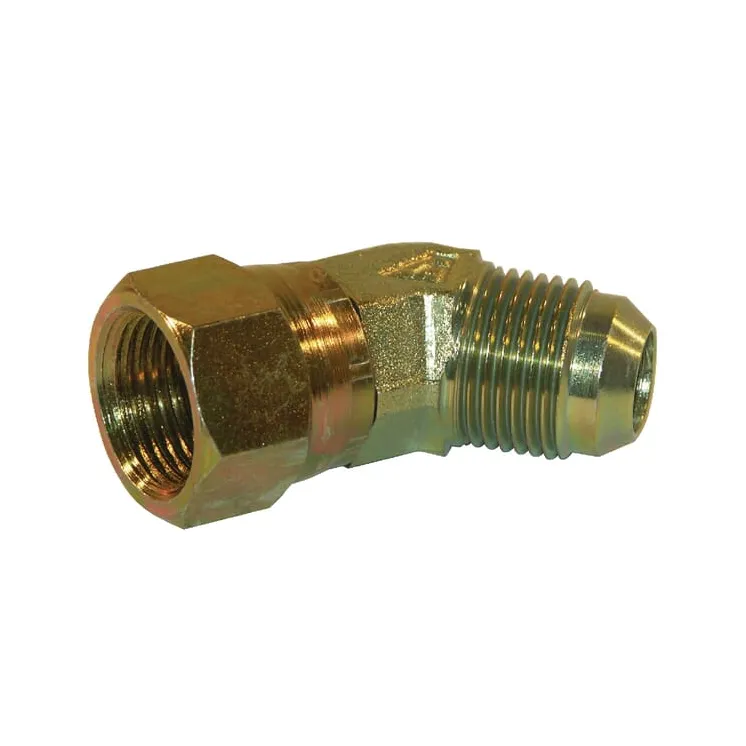

Elkonis vīrietis/sieviete 3/4 JIC 45° KOU4512

Name: Elkonis vīrietis/sieviete 3/4 JIC 45° KOU4512
Brand: Alfagomma
SKU: KOU4512
Price: 10.09 EUR
Availability: BackOrder

Apmaksas iespējas

10,09 €

AR PVN

Pēc pieprasījuma

Elkonis vīrietis/sieviete 3/4 JIC 45° KOU4512 Alfagomma

Uz pasūtījumu

ID: 88798

Apraksts

Part number	KOU4512
EAN
Unit	Each
Product details	For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37º cone side is UNF in accordance with ANSI
Angle	45 °
Connection 2, centre to end distance	25.5 mm
Connection 2, thread diameter	3/4 Inch
Connection 2, thread type	JIC
Connection 2, threads per inch	16
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 thread diameter	3/4 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	16
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
Max working pressure	340 BAR
Pipe diameter	12 mm
Pipe diameter	1/2 Inch
Shape	Elbow - 2 connection sides
