• Elkonis vīrietis/sieviete 3/4 JIC 90° KOU12 Alfagomma

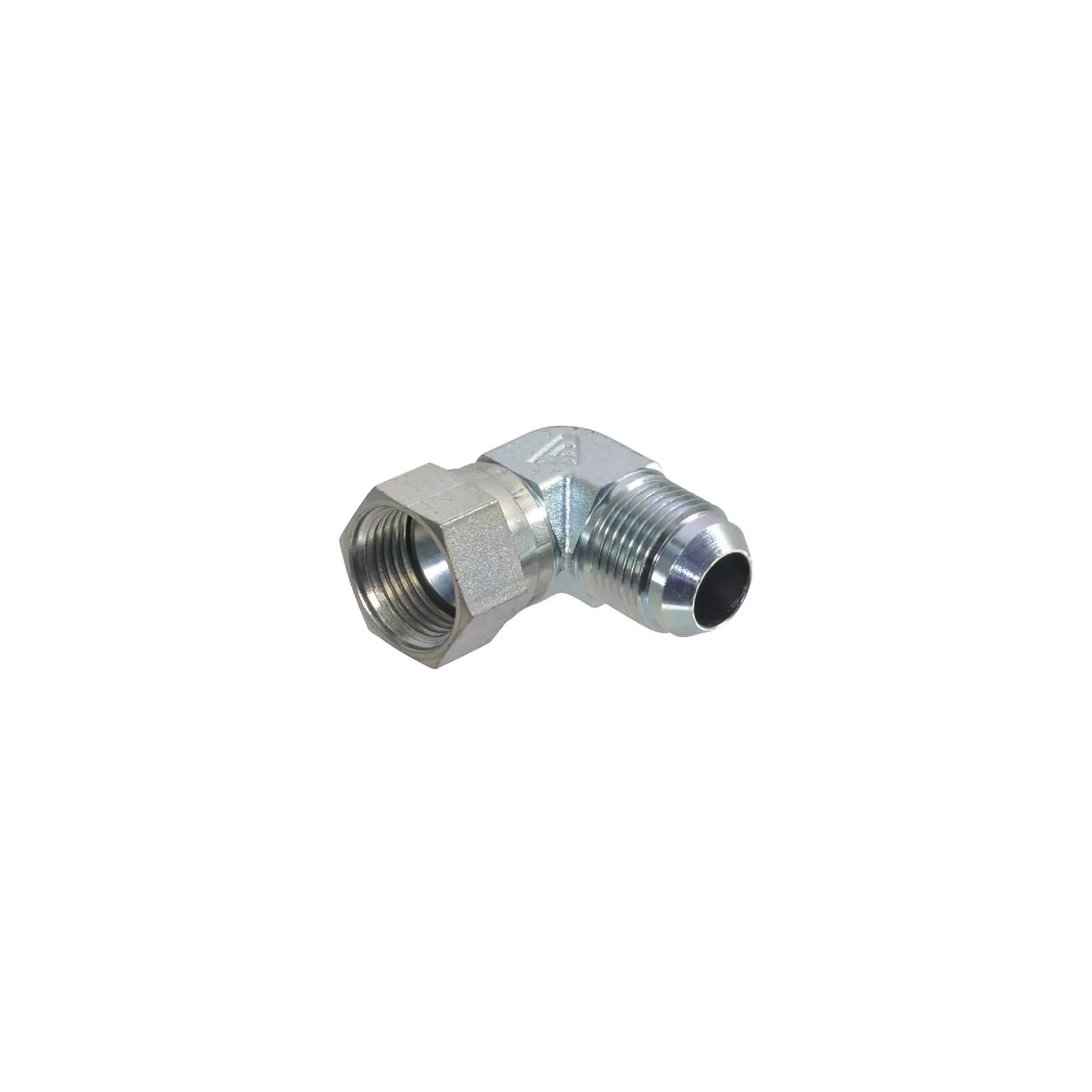

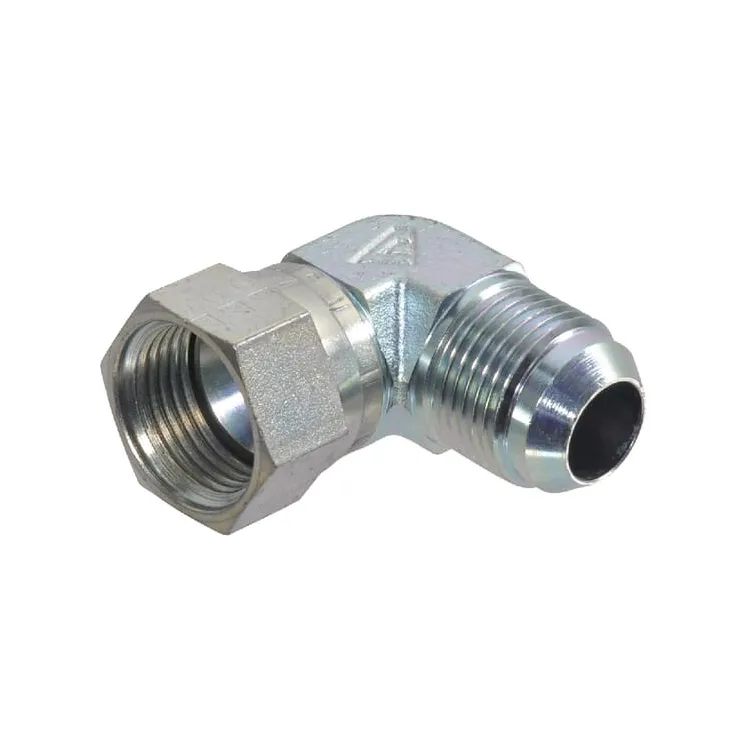

Elkonis vīrietis/sieviete 3/4 JIC 90° KOU12

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
11,31 €
AR PVN
4-5 Darba dienas
Elkonis vīrietis/sieviete 3/4 JIC 90° KOU12 Alfagomma
IR NOLIKTAVĀ

88799

Part number
KOU12
EAN
Unit
Each
Product details
  • For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514
  • Connection thread on the 37º cone side is UNF in accordance with ANSI
Angle
90 °
Cone angle
74 °
Connection 2, centre to end distance
32 mm
Connection 2, diameter
3/4 Inch
Connection 2, thread pitch
16.00 mm
Connection 2, thread diameter
3/4 Inch
Connection 2, thread type
JIC
Connection 2, type
Thread
Connection 2, type - male/female
Male
F1Connection no 1 thread diameter
3/4 Inch
Connection no 1 thread length
35.2 mm
Connection no 1 thread type
JIC
Connection no 1 threads per inch
16
Connection no 1 type - male/female
Female
Connection no 1 type
Thread
Max working pressure
340 BAR
Pipe diameter
12 mm
Pipe diameter
1/2 Inch
Shape
Elbow - 2 connection sides
  • Zīmols
  • Norāde
    KOU12
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
