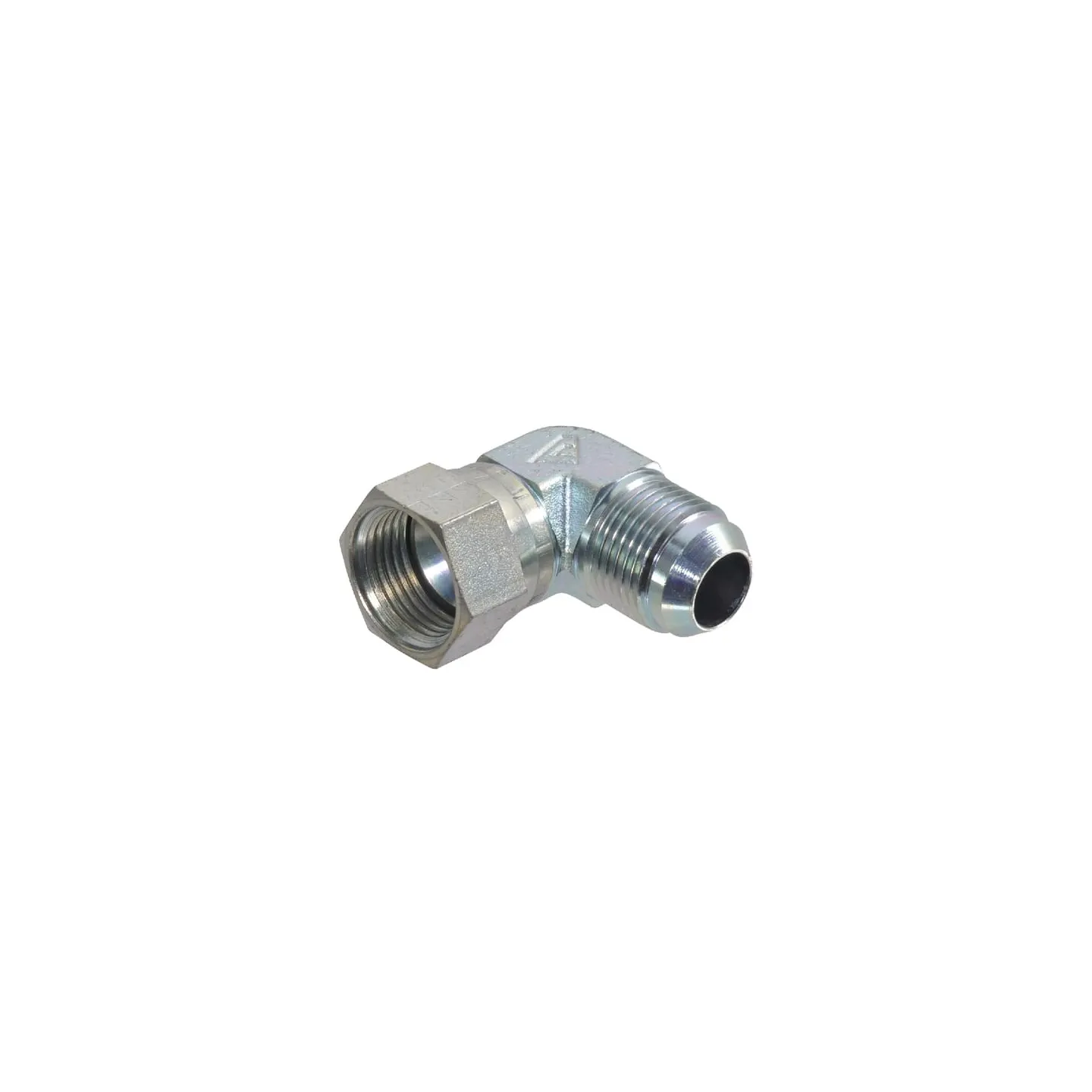

Elkonis vīrietis/sieviete 1/2 JIC 90° KOU08

Name: Elkonis vīrietis/sieviete 1/2 JIC 90° KOU08
Brand: Alfagomma
SKU: KOU08
Price: 10.02 EUR
Availability: BackOrder

Apmaksas iespējas

10,02 €

AR PVN

Pēc pieprasījuma

Elkonis vīrietis/sieviete 1/2 JIC 90° KOU08 Alfagomma

Uz pasūtījumu

ID: 88802

Apraksts

Part number	KOU08
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37º cone side is UNF in accordance with ANSI
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	24.5 mm
Connection 2, diameter	1/2 Inch
Connection 2, thread pitch	20.00 mm
Connection 2, thread diameter	1/2 Inch
Connection 2, thread type	JIC
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	1/2 Inch
Connection no 1 thread length	27 mm
Connection no 1 thread type	JIC
Connection no 1 threads per inch	20
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
Max working pressure	380 BAR
Pipe diameter	8 mm
Pipe diameter	5/16 Inch
Shape	Elbow - 2 connection sides
