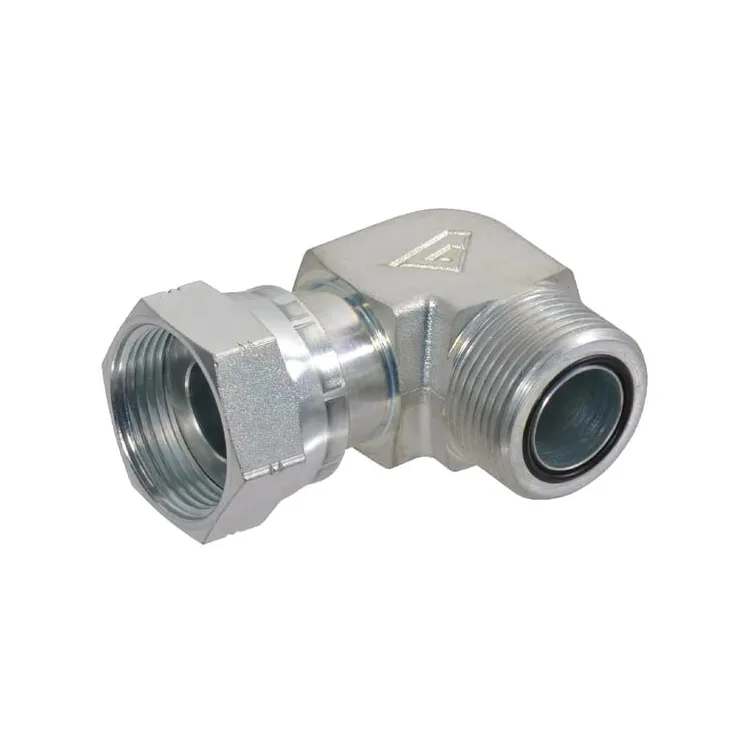

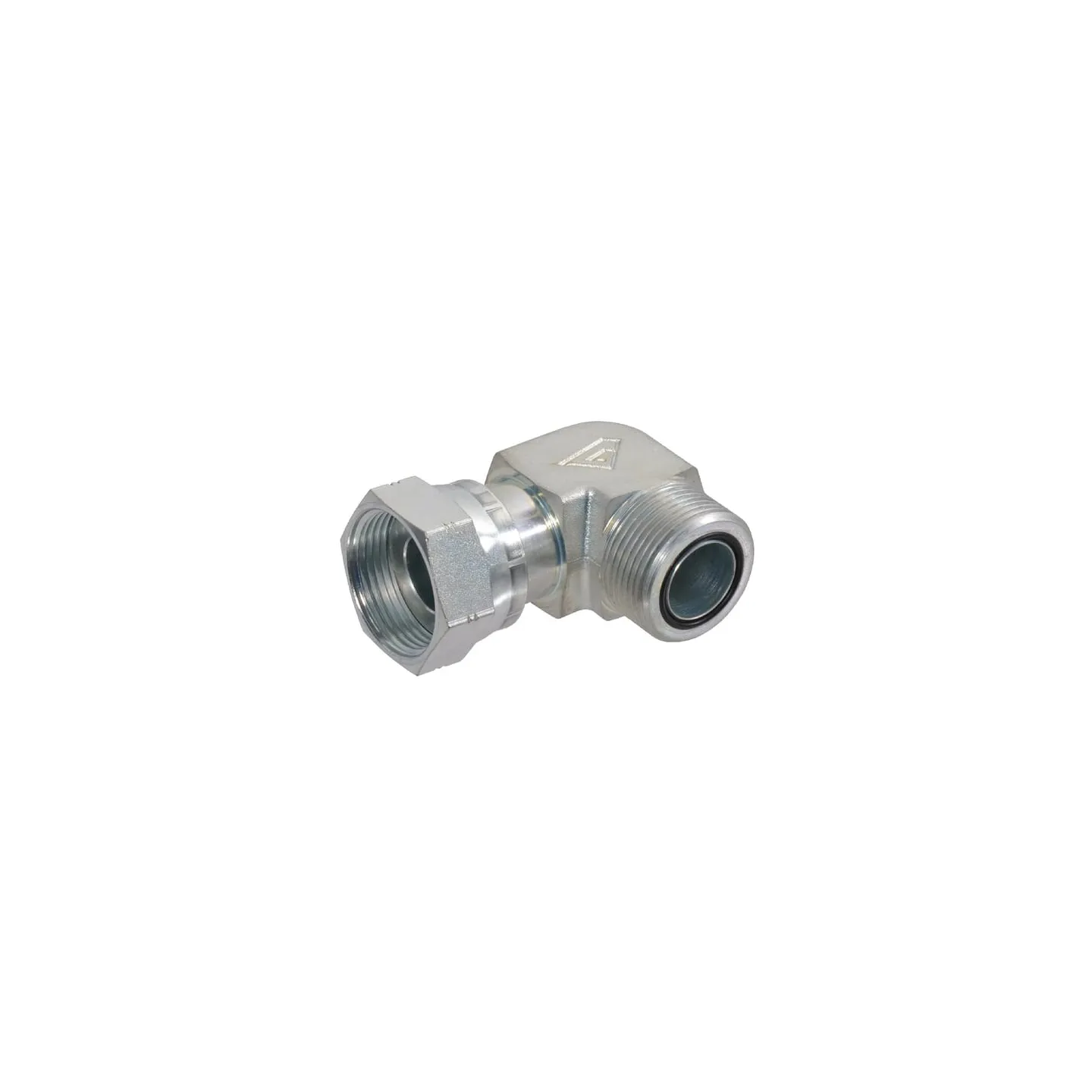

Elkonis 13/16 ORFS vīrietis/sieviete KOO13

Name: Elkonis 13/16 ORFS vīrietis/sieviete KOO13
Brand: Alfagomma
SKU: KOO13
Price: 16.54 EUR
Availability: BackOrder

Apmaksas iespējas

16,54 €

AR PVN

Pēc pieprasījuma

Elkonis 13/16 ORFS vīrietis/sieviete KOO13 Alfagomma

Uz pasūtījumu

ID: 88808

Apraksts

Part number	KOO13
EAN
Unit	Each
Long description	ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time.
Pros	High tightening torque Reusable
Product details	O-Ring Face Seals O-ring in recess on the connection surface of the nipple Standard : SAE I 1453 Material: Steel Surface treatment: Zinc-plated Viton seal available on request
Angle	90 °
PConnection 2, centre to end distance	28 mm
FConnection 2, thread diameter	13/16 Inch
Connection 2, thread type	ORFS
Connection 2, threads per inch	16
Connection 2, type	Thread
Connection 2, type - male/female	Male
CH2Connection 2, wrench size	24.0 mm
L1Connection no 1 center to end distance	38 mm
FConnection no 1 thread diameter	13/16 Inch
Connection no 1 thread type	ORFS
Connection no 1 threads per inch	16
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
CH1Connection no 1 wrench size	19.0 mm
Material	Steel
Max working pressure	400 BAR
Shape	Elbow - 2 connection sides
