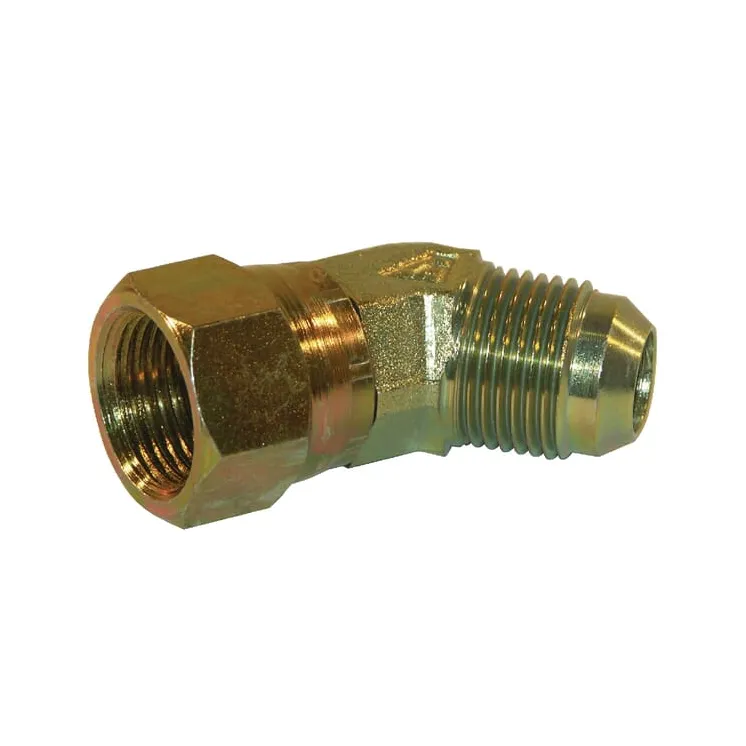

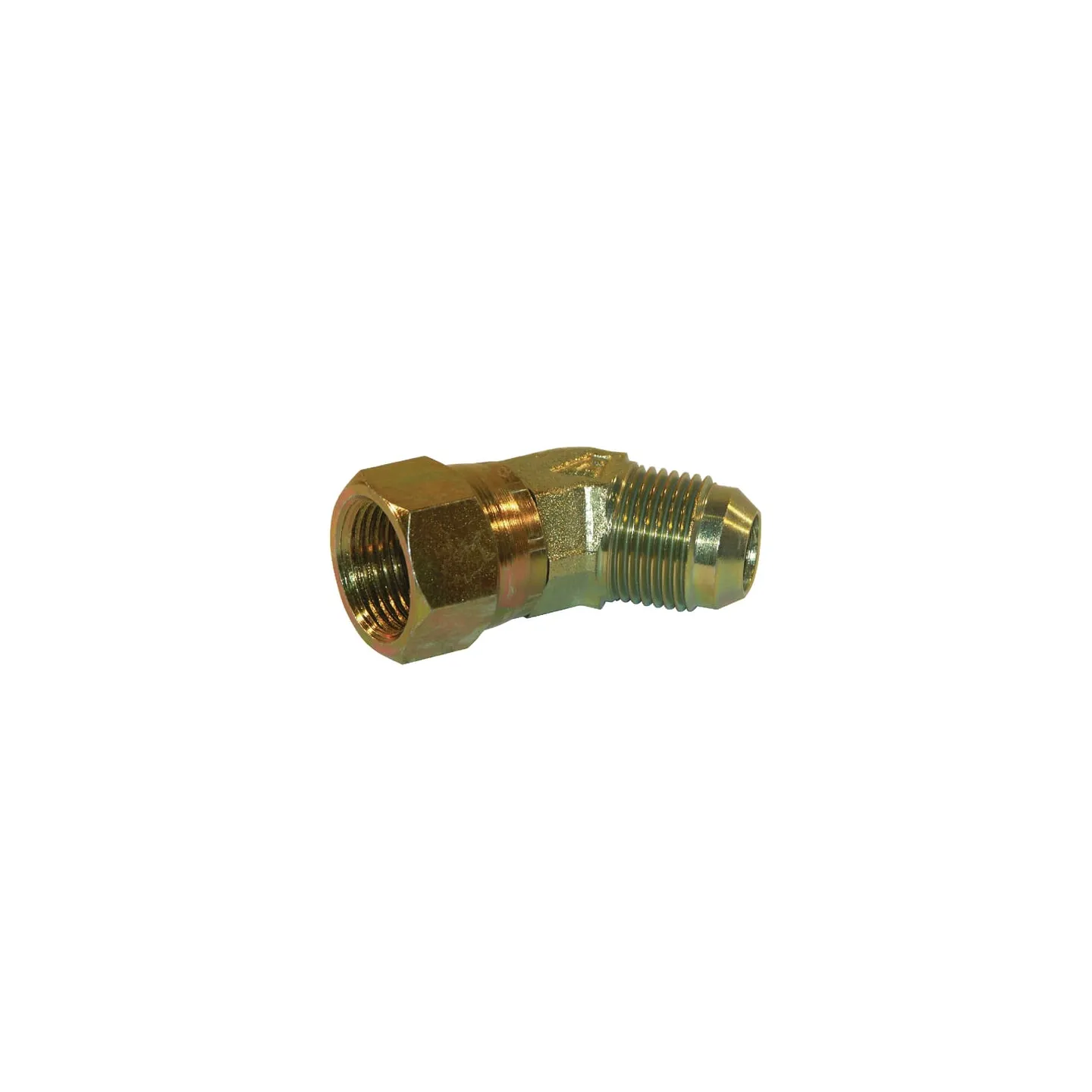

Elkonis vīrietis/sieviete 7/8 JIC 45° KOU4514

Name: Elkonis vīrietis/sieviete 7/8 JIC 45° KOU4514
Brand: Alfagomma
SKU: KOU4514
Price: 12.02 EUR
Availability: BackOrder

Apmaksas iespējas

12,02 €

AR PVN

Pēc pieprasījuma

Elkonis vīrietis/sieviete 7/8 JIC 45° KOU4514 Alfagomma

Uz pasūtījumu

ID: 88810

Apraksts

Part number	KOU4514
EAN
Unit	Each
Product details	For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37º cone side is UNF in accordance with ANSI
Angle	45 °
Connection 2, centre to end distance	29.5 mm
Connection 2, thread diameter	7/8 Inch
Connection 2, thread type	JIC
Connection 2, threads per inch	14
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 thread diameter	7/8 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	14
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
Max working pressure	280 BAR
Pipe diameter	16 mm
Pipe diameter	5/8 Inch
Shape	Elbow - 2 connection sides
