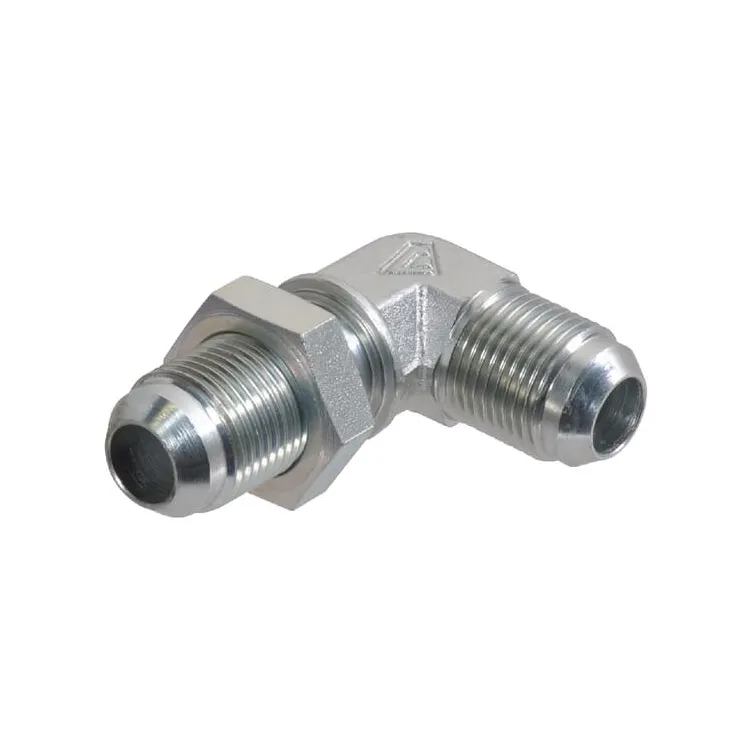

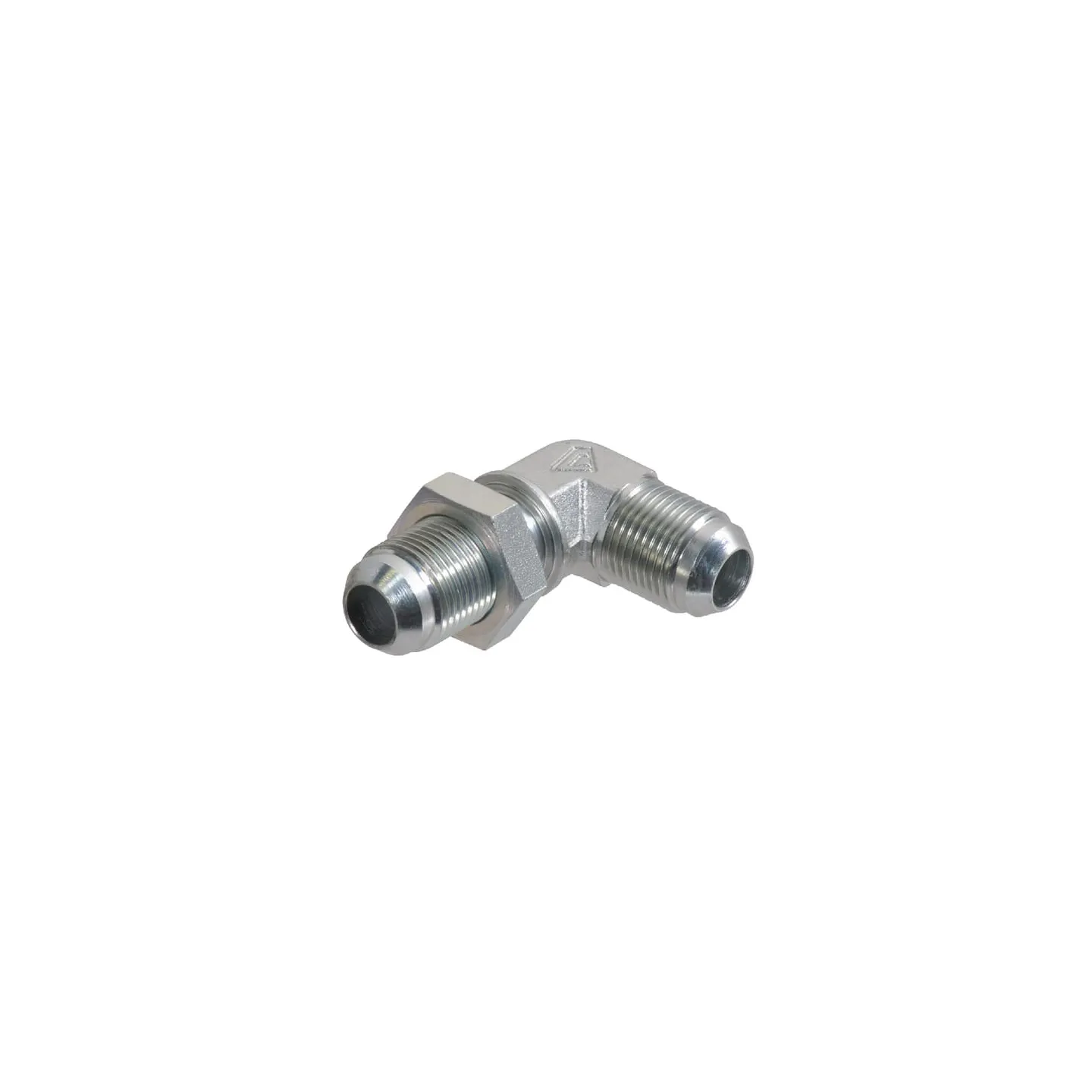

Starpsienas elkonis 3/4 JIC KS12

Name: Starpsienas elkonis 3/4 JIC KS12
Brand: Alfagomma
SKU: KS12
Price: 12.73 EUR
Availability: InStock

Apmaksas iespējas

12,73 €

AR PVN

4-5 Darba dienas

Starpsienas elkonis 3/4 JIC KS12 Alfagomma

IR NOLIKTAVĀ

ID: 88814

Apraksts

Part number	KS12
EAN
Unit	Each
Product details	For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings according SAE I 514 Cone according to UNF ANSI.
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	34.5 mm
FConnection 2, thread diameter	3/4 Inch
Connection 2, thread type	UNF
Connection 2, type	Thread
Connection 2, type - male/female	Male
FConnection no 1 thread diameter	3/4 Inch
Connection no 1 thread type	JIC
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Connections distance	53.5 mm
Material	Steel
Max working pressure	340 BAR
Pipe diameter	12 mm
Pipe diameter	1/2 Inch
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
