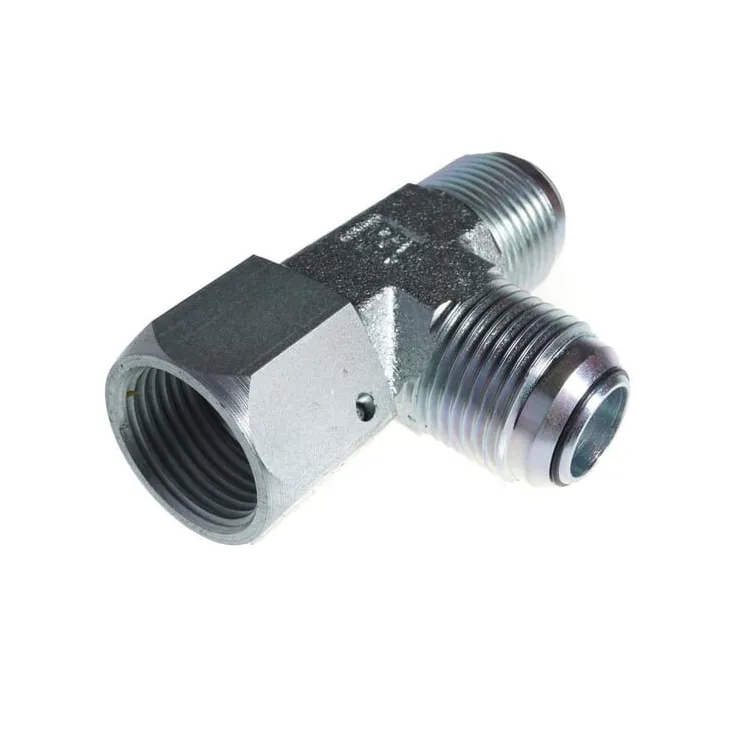

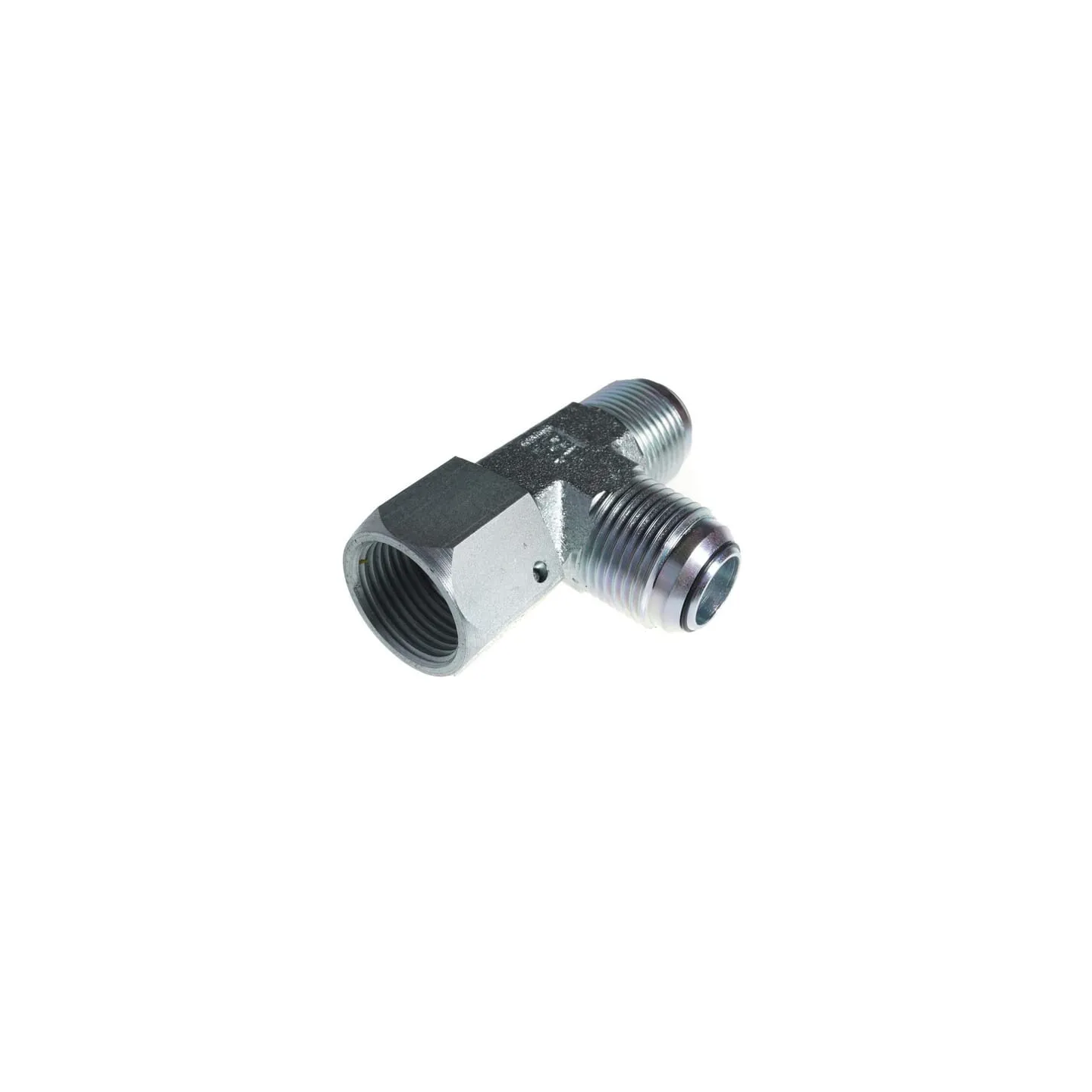

Tīņu savienojums F-M JIC 1 1/16 UNF LOU17

Name: Tīņu savienojums F-M JIC 1 1/16 UNF LOU17
Brand: Alfagomma
SKU: LOU17
Price: 20.96 EUR
Availability: InStock

Apmaksas iespējas

20,96 €

AR PVN

4-5 Darba dienas

Tīņu savienojums F-M JIC 1 1/16 UNF LOU17 Alfagomma

IR NOLIKTAVĀ

ID: 88824

Apraksts

Part number	LOU17
EAN
Unit	Each
Connection no 1 thread type	UNF
FConnection no 1 thread diameter	1-1/16 Inch
Connection 2, thread type	JIC
FConnection 2, thread diameter	1-1/16 Inch
Connection 3, thread type	JIC
Shape	Tee (T) - 3 connections
Connection no 1 type	Thread
Connection no 1 type - male/female	Female
Connection 2, type	Swivel nut
Connection 2, type - male/female	Female
Connection 3, type	Thread
Connection 3, type - male/female	Female
FConnection 3, thread diameter	1-1/16 Inch
Cone angle	74 °
Pipe diameter	3/4 Inch
D1Pipe diameter	18 mm 20 mm
Material	Steel
Surface treatment	Galvanised
Working pressure	280 BAR
