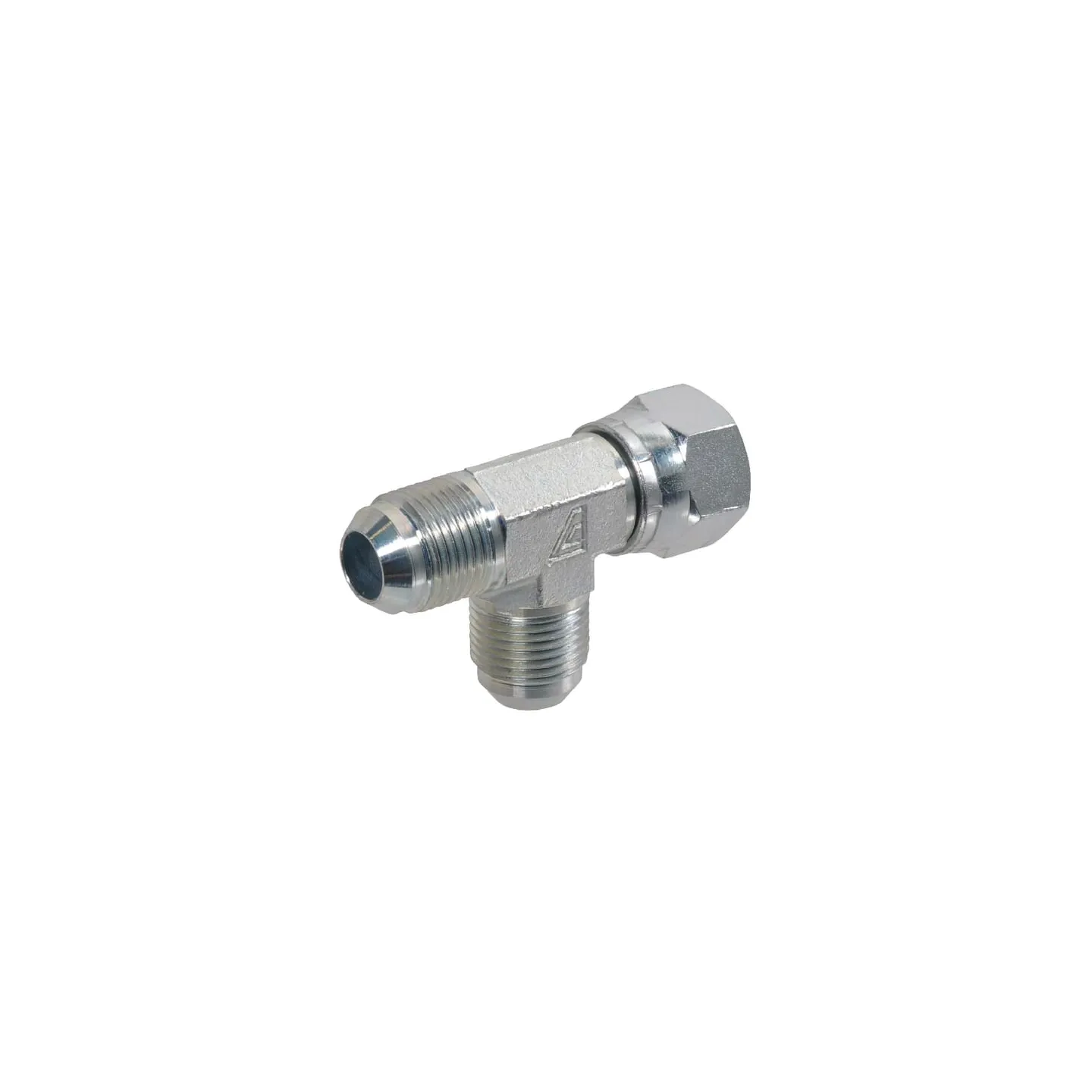

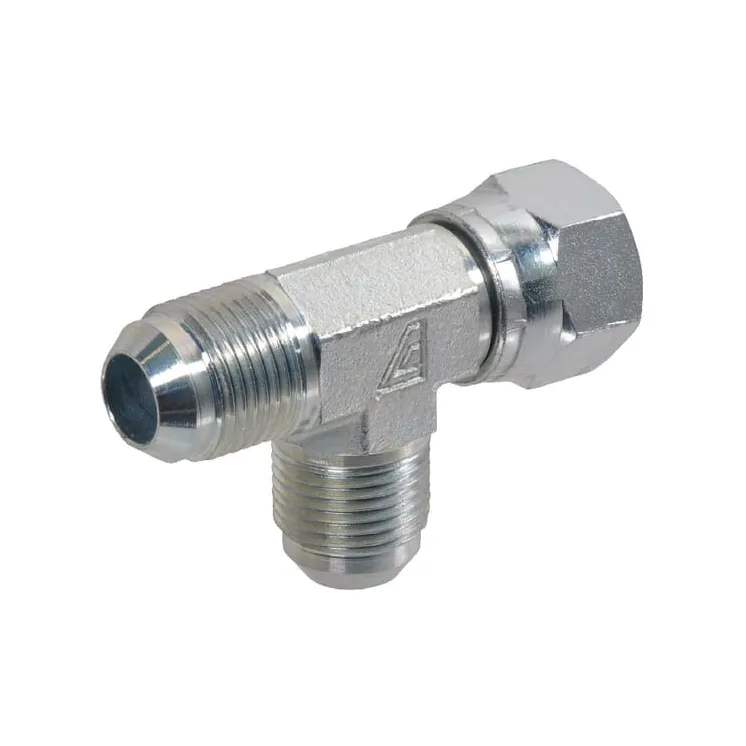

Tīņu savienojums F-M JIC 3/4 UNF LOU12 TJ12MFMBH

Name: Tīņu savienojums F-M JIC 3/4 UNF LOU12 TJ12MFMBH
Brand: Alfagomma
SKU: LOU12
Price: 17.09 EUR
Availability: InStock

Apmaksas iespējas

17,09 €

AR PVN

4-5 Darba dienas

Tīņu savienojums F-M JIC 3/4 UNF LOU12 Alfagomma TJ12MFMBH

IR NOLIKTAVĀ

ID: 88826

Apraksts

Part number	LOU12
EAN
Unit	Each
Connection no 1 thread type	UNF
FConnection no 1 thread diameter	3/4 Inch
Connection 2, thread type	JIC
FConnection 2, thread diameter	3/4 Inch
Connection 3, thread type	JIC
Shape	Tee (T) - 3 connections
Connection no 1 type	Thread
Connection no 1 type - male/female	Female
Connection 2, type	Swivel nut
Connection 2, type - male/female	Male
Connection 3, type	Thread
Connection 3, type - male/female	Male
FConnection 3, thread diameter	3/4 Inch
Cone angle	74 °
Pipe diameter	1/2 Inch
D1Pipe diameter	12 mm
Material	Steel
Surface treatment	Galvanised
Working pressure	340 BAR
