Hidrauliskā šļūtene EN853-1SN-DN10 NSTHF10 Alfagomma NS10 NST10
search
  • Hidrauliskā šļūtene EN853-1SN-DN10 NSTHF10 Alfagomma NS10 NST10

Hidrauliskā šļūtene EN853-1SN-DN10 NSTHF10 NS10 NST10

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
3,78 €
AR PVN
4-5 Darba dienas

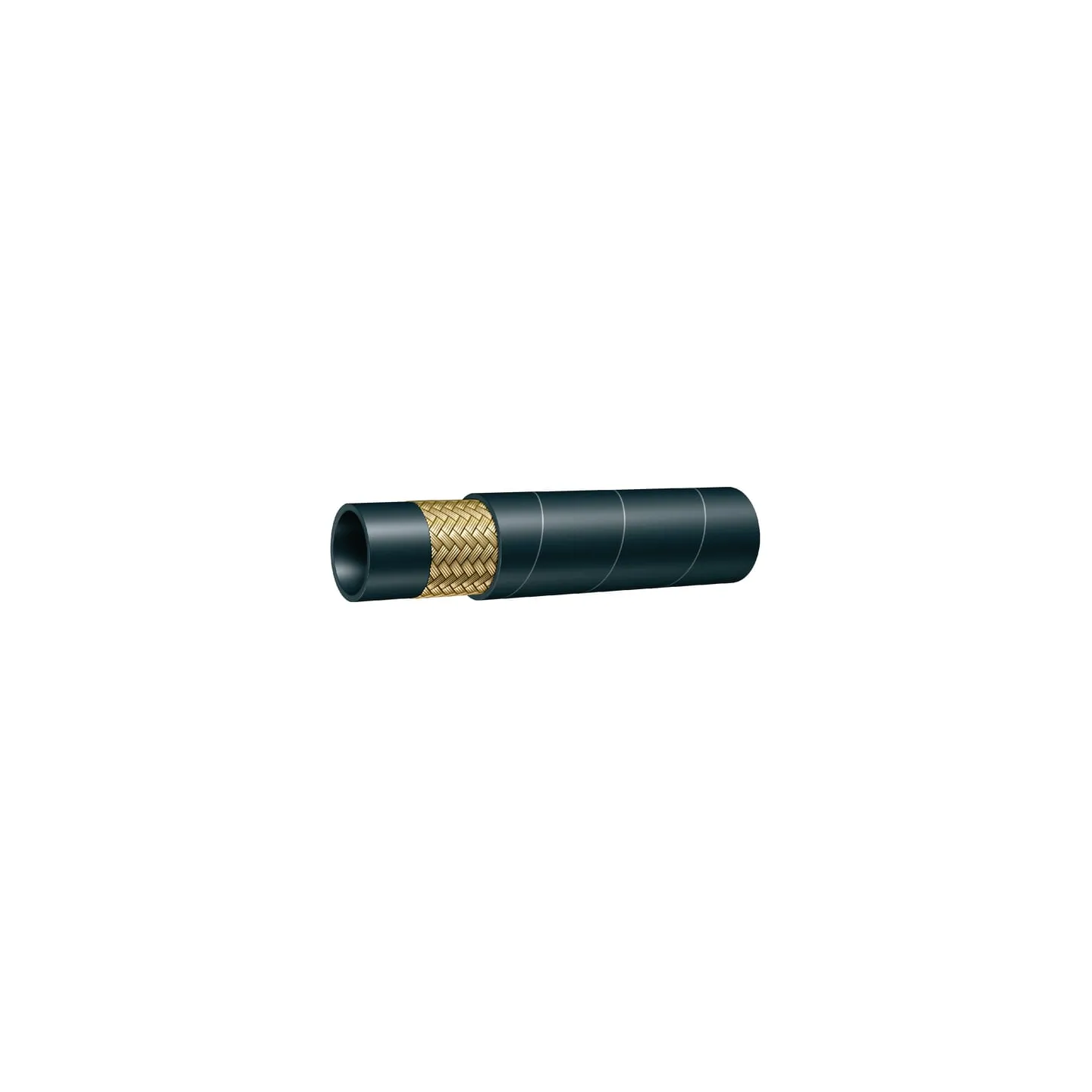

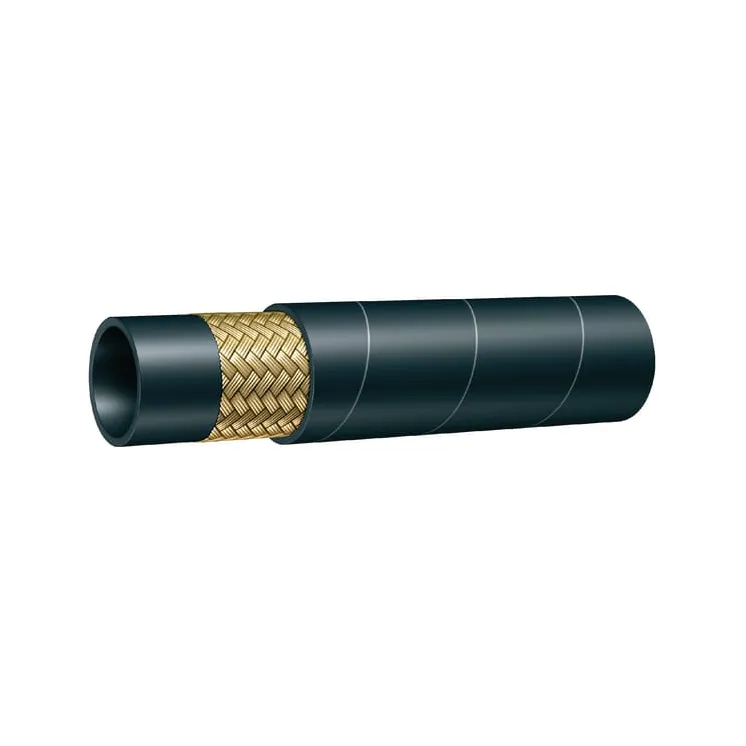

Hidrauliskā šļūtene EN853-1SN-DN10 NSTHF10 Alfagomma NS10 NST10
IR NOLIKTAVĀ

88867

  • Zīmols
    Alfagomma
  • Norāde
    NSTHF10
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    NS10 NST10
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
NSTHF10
EAN
Unit
Metre
Qty. Rounding
0.01
Pros
  • Eco-friendly production
  • Fewer harmful emissions released during cutting
Product details
  • Halogen-free rubber surface
  • Durable outer coating resistant to ozone and oil
  • Can be ordered by the metre
  • Everything up to DN 16 is available on 25-metre and 50-metre reels
  • The length of a roll of hose that is not reeled is not fixed
  • Mineral oil-based and glycol-based fluids
  • Vegetable and mineral lubricants
  • Crude oils, heating oil, coolant, compressed air
Long description
  • Application:
  • Gardening machines
  • Agricultural equipment
  • Mineral oil-based and glycol-based fluids
  • Vegetable and mineral lubricants
  • Crude oils, heating oil, coolant, compressed air
  • Benefits:
  • Eco-friendly production
  • Details:
  • Halogen-free rubber surface
  • Properties:
  • Durable outer coating resistant to ozone and oil
  • Fewer harmful emissions released during cutting
  • Technical information:
  • Can be ordered by the metre
  • All types up to and including DN 16 can also be ordered on 25 m and 50 m reels
Hose inside diameter
3/8 Inch
Hose inside diameter
9.5 mm
Max working pressure
180 BAR
Material inside
Synthetic rubber
Bend radius
130 mm
Weight
0.32 kg/m
Type
Hydraulic high pressure hose
DN
10 mm
Hose outside diameter
17.1 mm
Burst pressure
720 BAR
Medium
Hydraulic oil
Max working temperature
100 °C
Min working temperature
-40 °C
Material outside
Synthetic rubber
Reinforcement type
Braid
Reinforcement number of plies
1
Reinforcement material
Steel
Number of plies
1
EN standard
853 1SN
Approval
  • DNV
  • ABS
  • GL
  • BV
  • NKK
  • RINA
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
