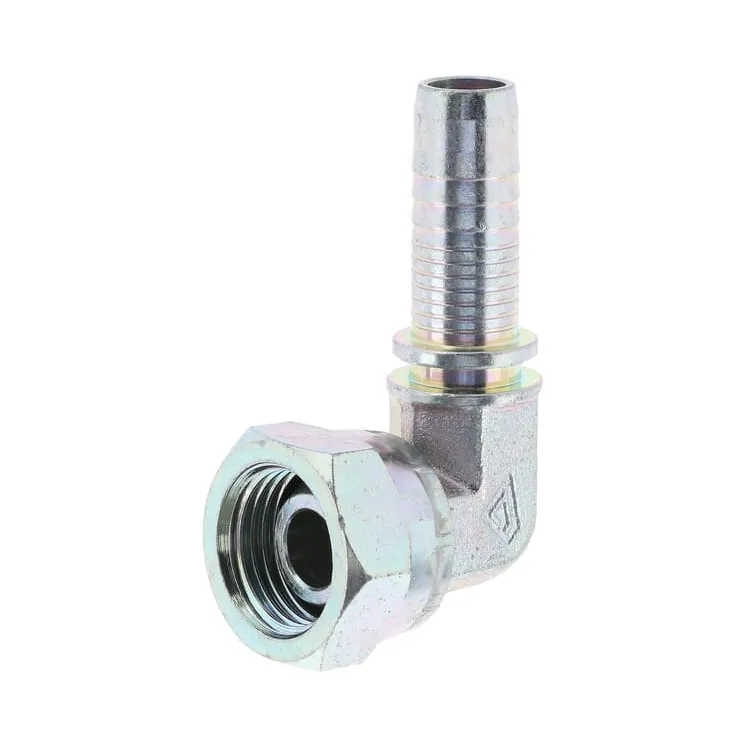

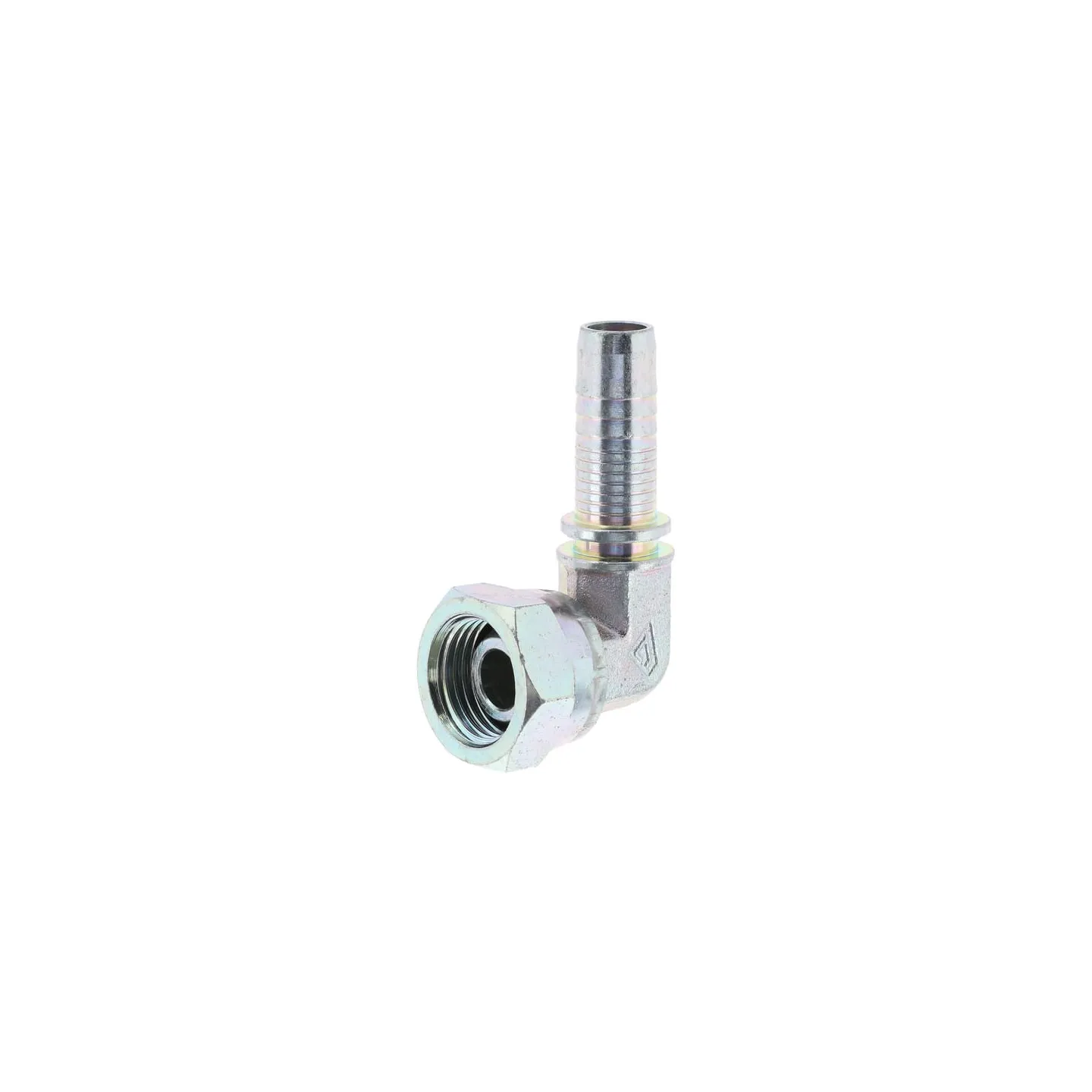

Ievietojiet DN13-1/2 BSP-90° PF13890S

Name: Ievietojiet DN13-1/2 BSP-90° PF13890S
Brand: Alfagomma
SKU: PF13890S
Price: 7.47 EUR
Availability: InStock

Apmaksas iespējas

7,47 €

AR PVN

4-5 Darba dienas

Ievietojiet DN13-1/2 BSP-90° PF13890S Alfagomma

IR NOLIKTAVĀ

ID: 88896

Apraksts

Part number	PF13890S
EAN
Unit	Each
Pros	Suitable for small installation space
Product details	Low elbow - O-ring seal
Benefits	Suitable for confined installation spaces
Includes	Insert O-ring
Long description	Benefits: Suitable for confined installation spaces Consists of: Swage coupling O-ring Details: Short version (size D) Properties: O-ring seal Technical
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	60 °
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	22.6 mm
Connection no 1 diameter	1/2 Inch
Connection no 1 length	24.7 mm
Connection no 1 thread type	BSP
Connection no 1 type code	DKOR
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
CH1Connection no 1 wrench size	27.0 mm
ISO standard	228
Material	Steel
Original number equivalent	H1220581-080800
Shape	Elbow - 2 connection sides
