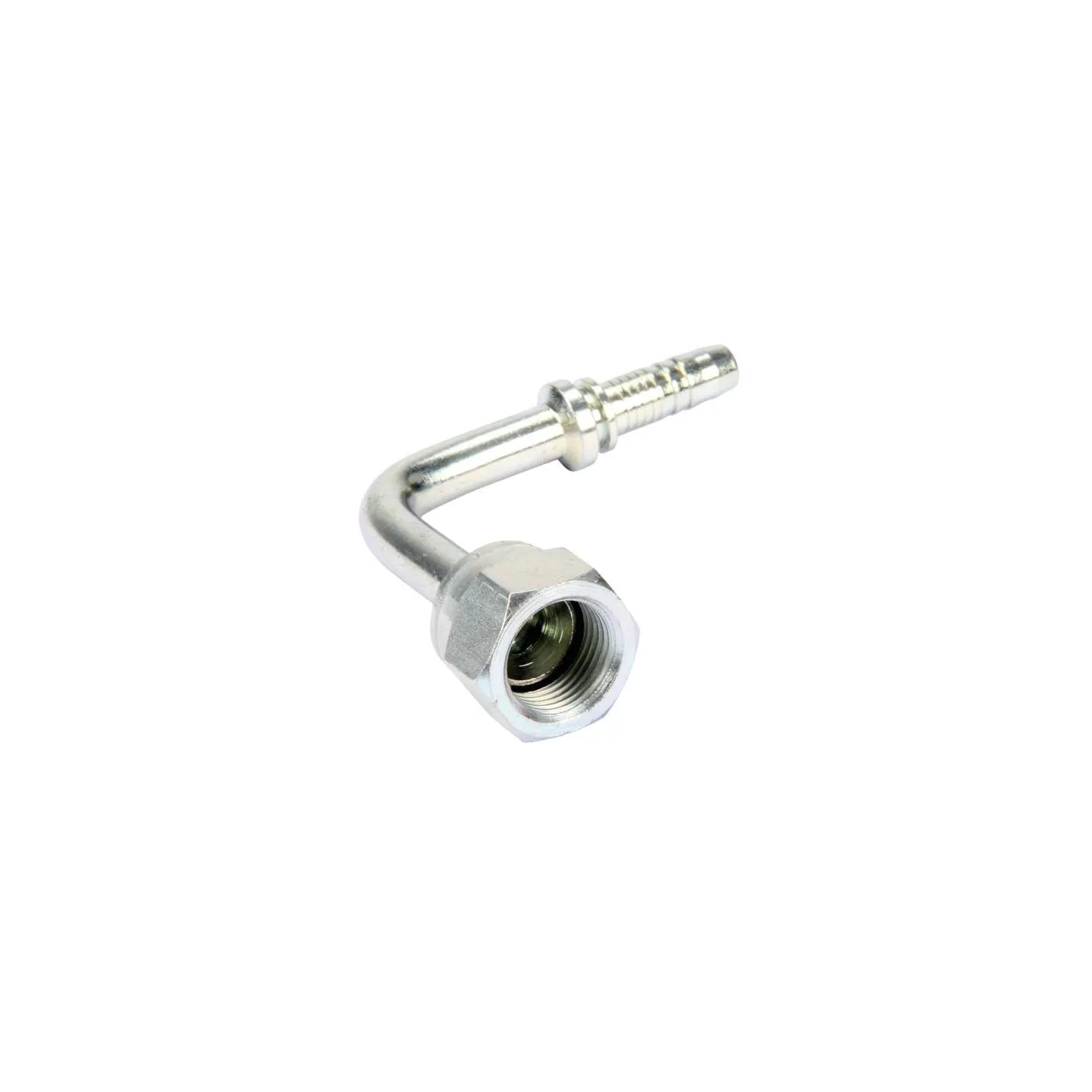

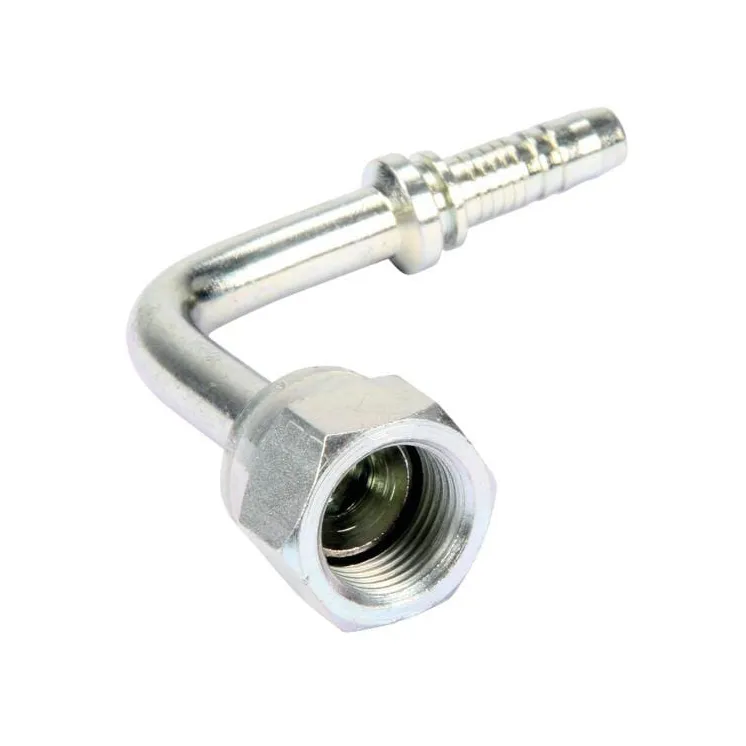

Ievietojiet DN08-9/16-UNF-90° PA8990L

Name: Ievietojiet DN08-9/16-UNF-90° PA8990L
Brand: Alfagomma
SKU: PA8990L
Price: 7.94 EUR
Availability: BackOrder

Apmaksas iespējas

7,94 €

AR PVN

Pēc pieprasījuma

Ievietojiet DN08-9/16-UNF-90° PA8990L Alfagomma

Uz pasūtījumu

ID: 88906

Apraksts

Part number	PA8990L
EAN
Unit	Each
Pros	Possible to install hoses on top of each other
Product details	Long model (size D) Cone, metal on metal seal Flared fittings
Benefits	Hoses can be installed over one another
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	37 °
DConnection 2, centre to end distance	54 mm
Connection 2, diameter	5/16 Inch
Connection 2, diameter	8 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	37.2 mm
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
HConnection no 1 wrench size	19.0 mm
Material	Steel
Original number equivalent	H1222591-05060L
Shape	Elbow - 2 connection sides
